High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.
Features:
- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal Mode
- Fast start-up time

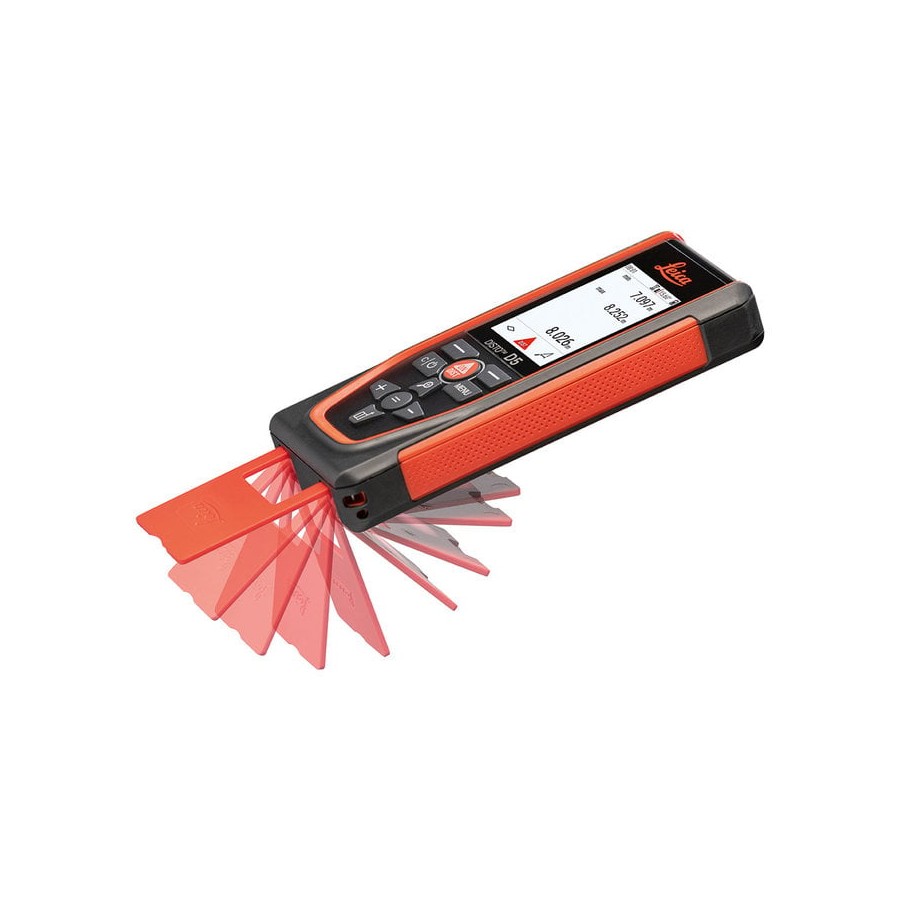

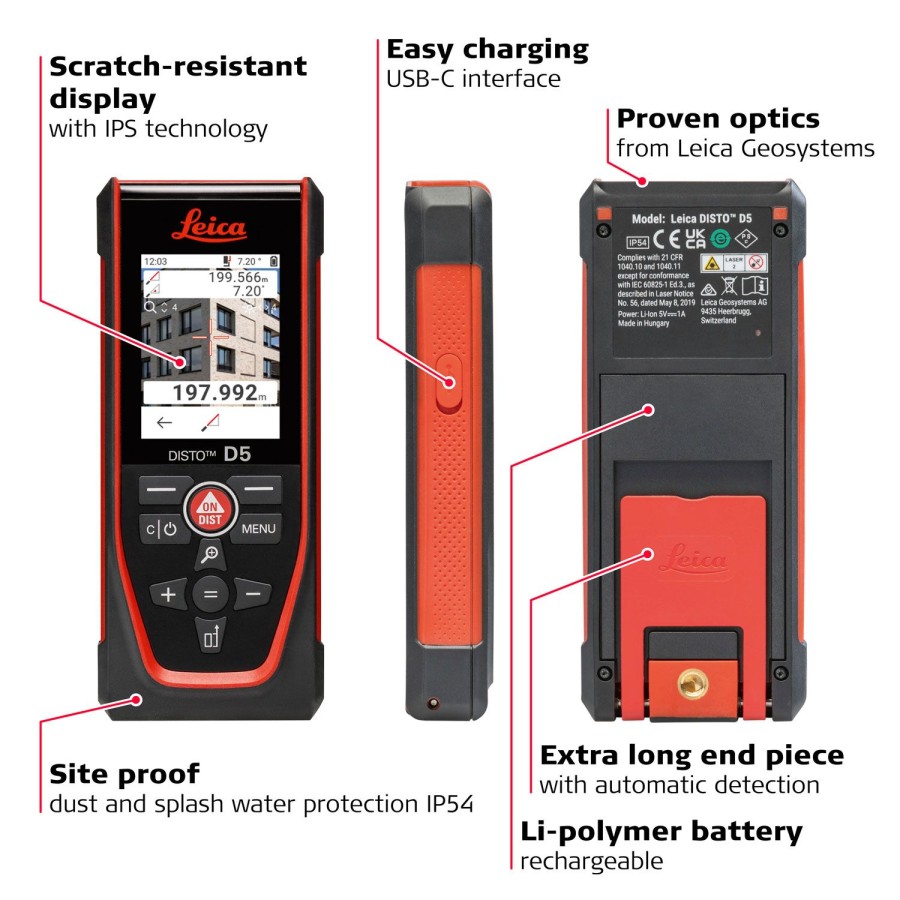

- Foldable end-piece with automatic detection

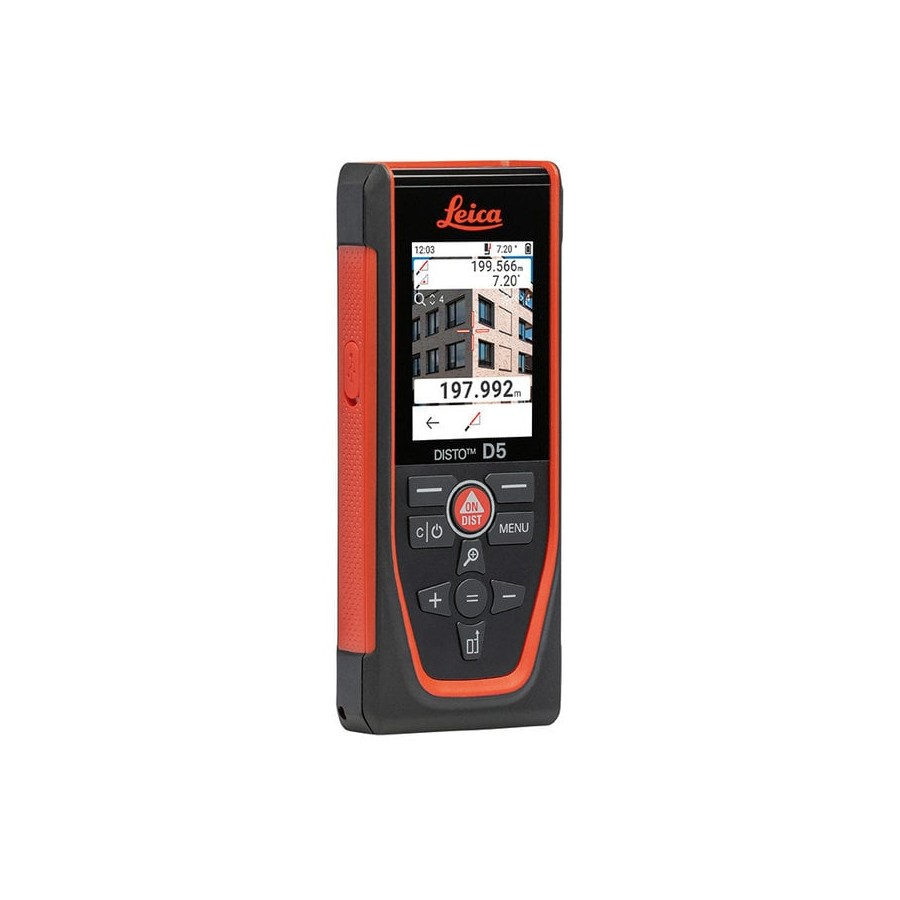

- Bright and clear 2.4” IPS display with scratch-proof lens
- Trigger measurements with gestures
- Memory for 50 measurements
- Li-Ion rechargeable battery
- USB-C charging
- Keyboard Mode, simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)
Technical Specifications:
- Accuracy with favourable conditions: 1.0 mm
- Accuracy with unfavourable conditions: 2.0 mm
- Range with favourable conditions: 0.05 – 200 m
- Range with unfavourable conditions: 0.05 – 120 m
- Smallest unit displayed: 0.1 mm
- X-Range Power Technology: yes
- Laser Class 2: 635 nm, <1 mW
- Digital Pointfinder with 4-fold zoom: yes
- Tilt measuring range: 360°
- Tilt measuring tolerance: ± 0.2° ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
- Protection class: IP54 (dust- and splash water protected)
- Auto. laser switch off after 90 s
- Auto. power switch off after 180 s
- Bluetooth® Smart: Bluetooth® v5.0
- Range of Bluetooth®: up to 10 m
- Battery durability (Li-Ion 2 000 mAh): up to 5’000 measurements, up to 10 hours operation time

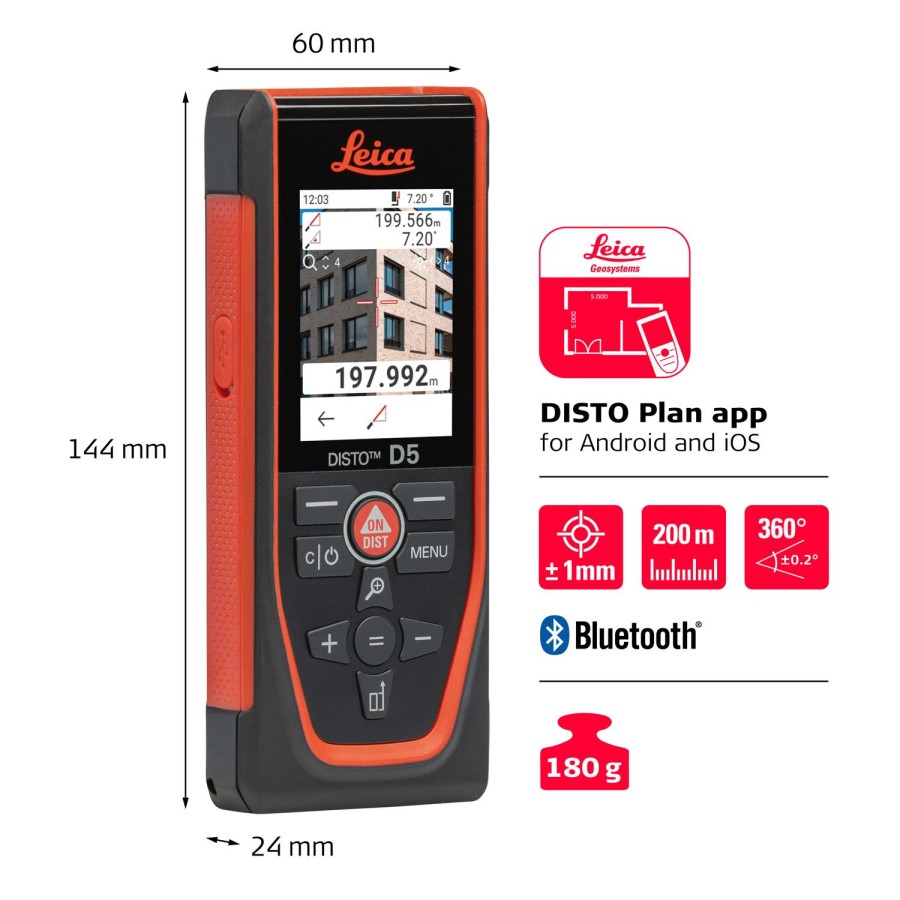

- Dimension (H x D x W): 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in
- Weight (with batteries): 180 g / 6.35 oz
- Temperature range storage | operation: -25 to 70 °C | -10 to 50 °C

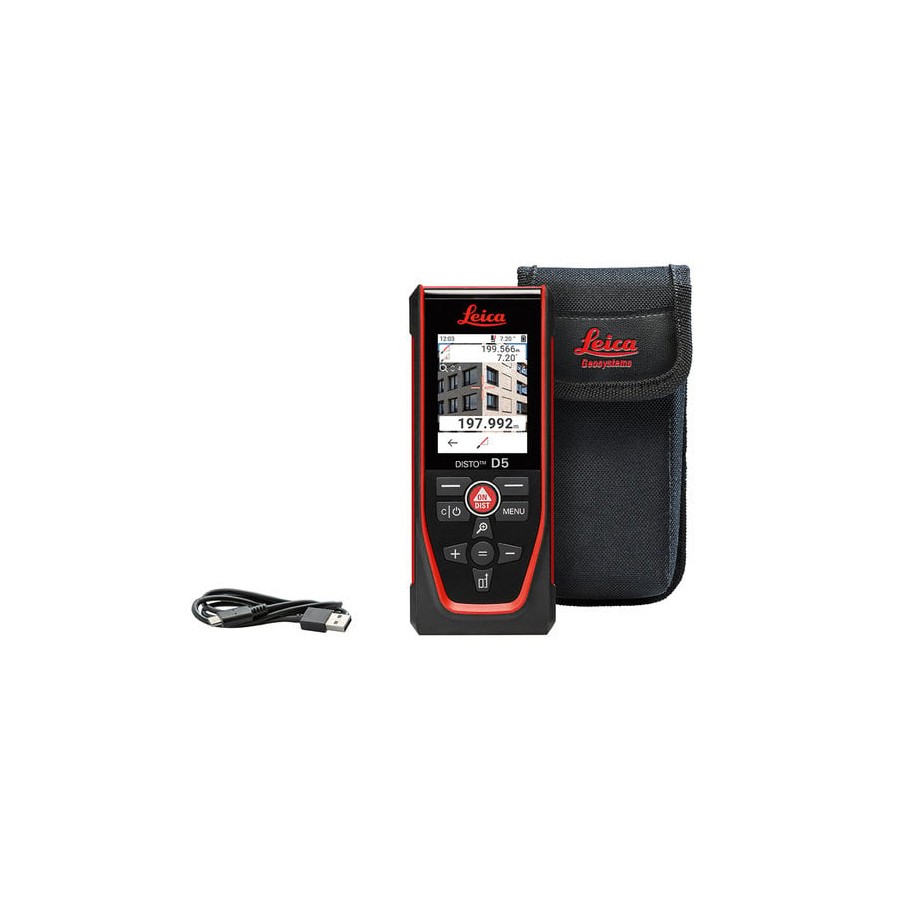

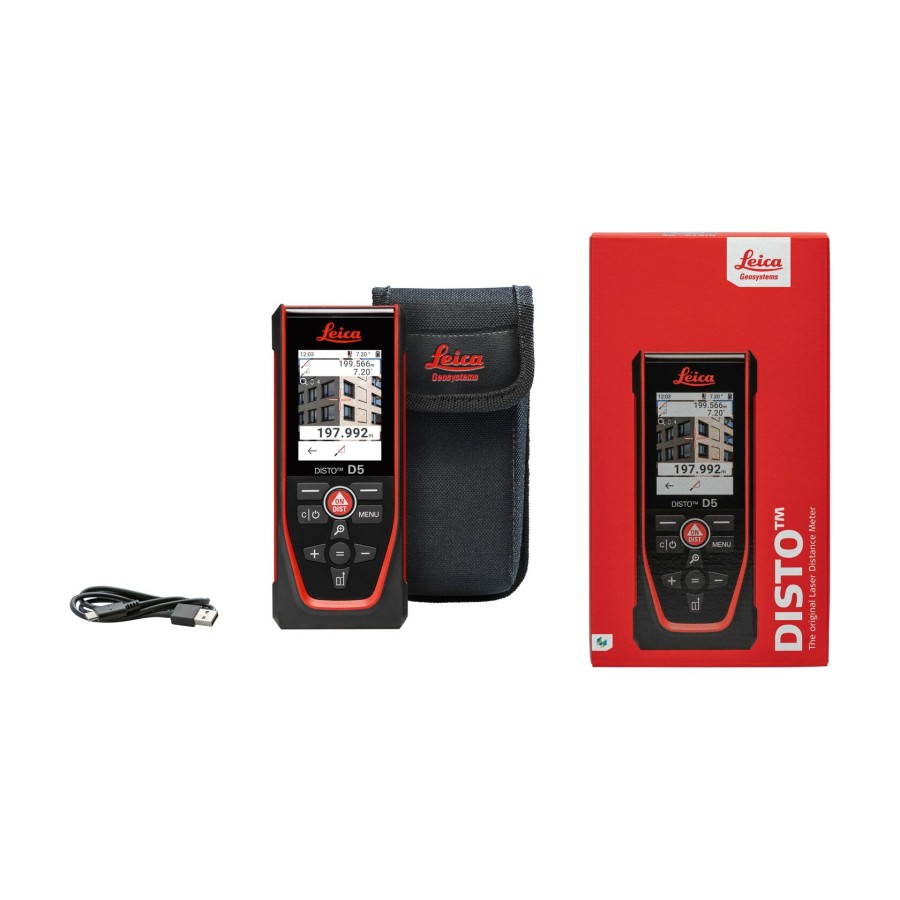

Leica DISTO D5 includes:

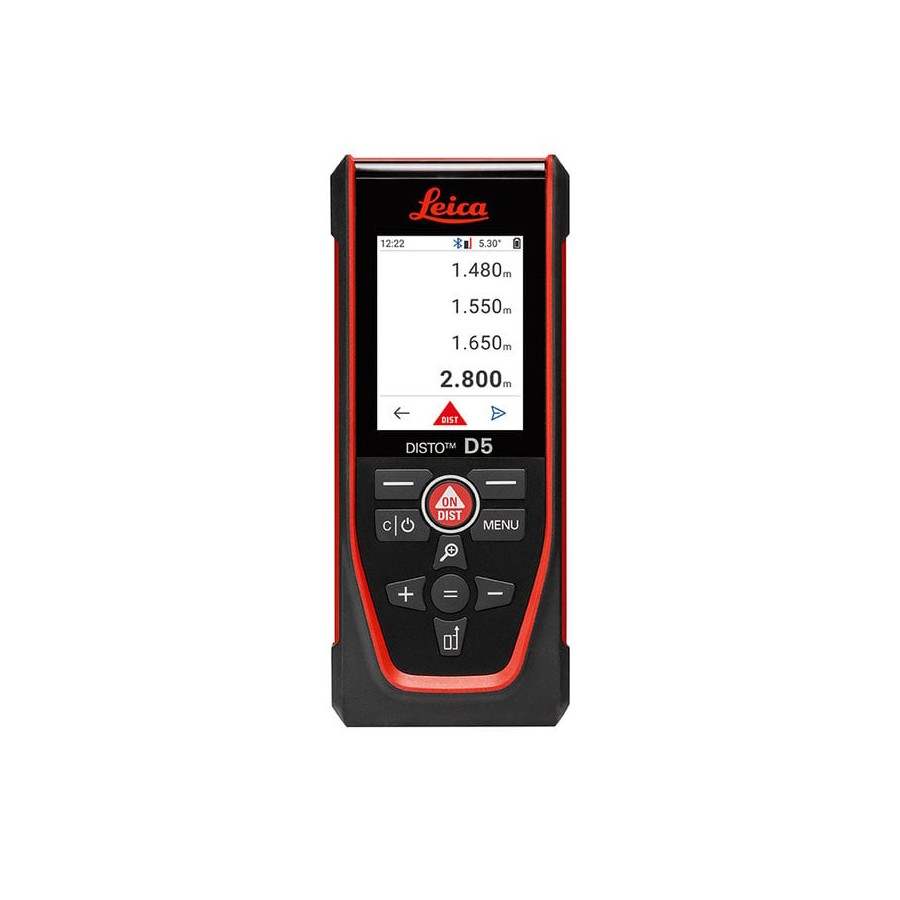

- Leica DISTO D5 laser distance meter
- Hand loop
- Pouch
- USB cable
- Safety instructions
- Calibration Certificate Silver
- Quick Start with QR code linking to online manual
- 3 Years warranty card
