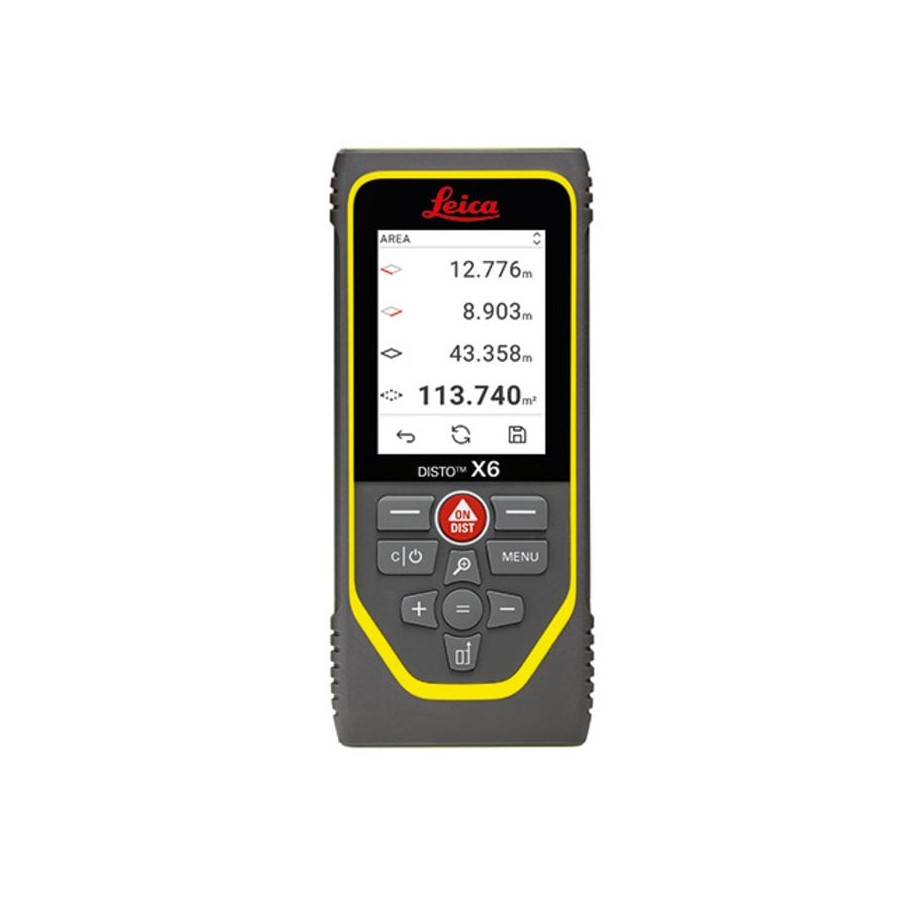

Leica DISTO™ X6 Laser Distance Meter

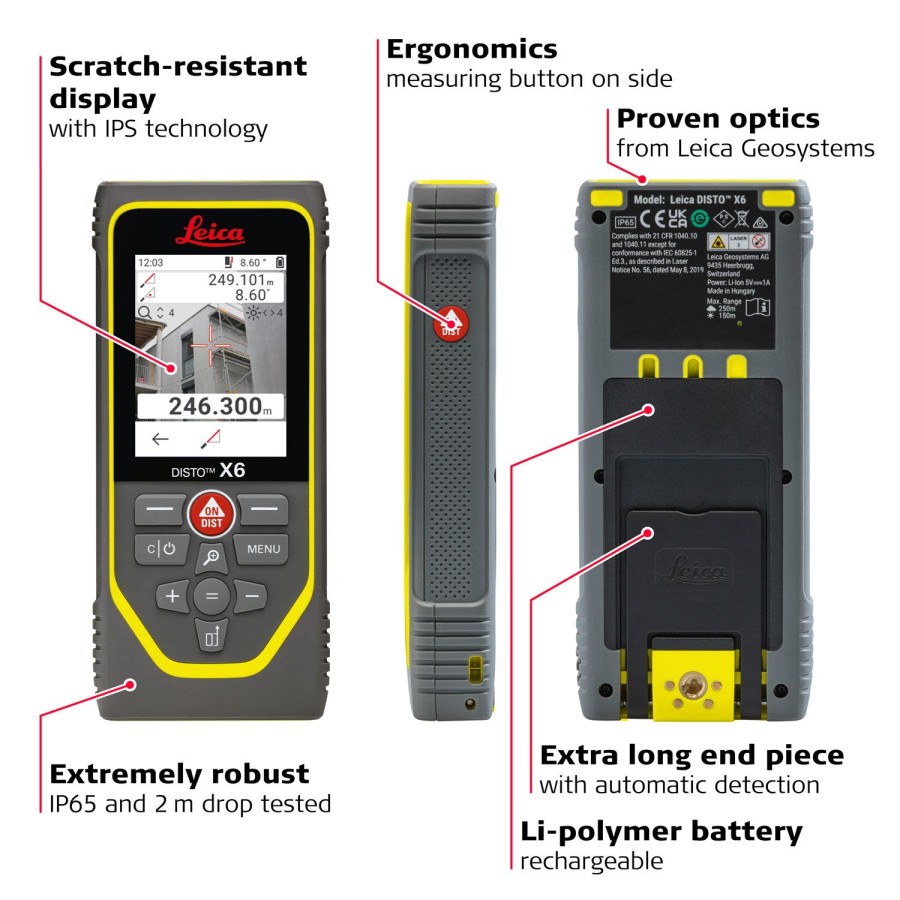

The Leica DISTO X6 is especially suitable for rough construction sites. With an IP65 rating, the extremely robust housing protects against dust and water jets and is drop tested from a height of 2 m, underlining the reliability and durability of this laser measure. With its Pointfinder and large, crystal-clear display, it is perfect for outdoor use. Simple and ergonomic operation is also guaranteed due to the touch screen and the additional measuring button on the side.
We re using Security Certificate GeoTrust OV with 256bit encryption.
Orders places before 14:00, working days, usually are shipped at the next working day.
You have the right to return your purchase within 14 days (terms may apply).
In addition, a variety of measurement functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements, ensure that any measurement situation can be completed quickly and efficiently. The results can be downloaded as a report and integrated directly, e.g. in quotations, ensuring an error-free, digital workflow.
Features:
- Range up to 250 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Fast Start-up time
- Bright and clear 2.8” IPS touchscreen with scratch-proof lens

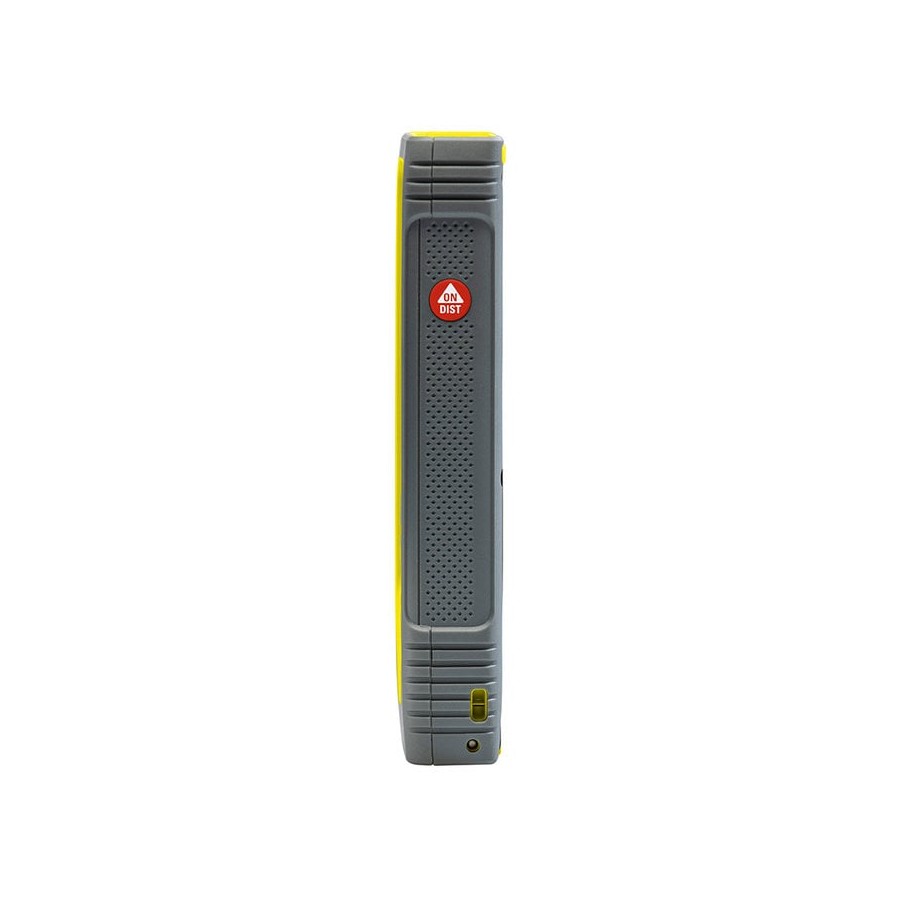

- DIST key on the side for even more intuitive measurements
- Robust according to IP65 and drop tested from 2 meters
- Trigger measurements with gestures
- Memory for 300 reports
- Li-Ion rechargeable battery

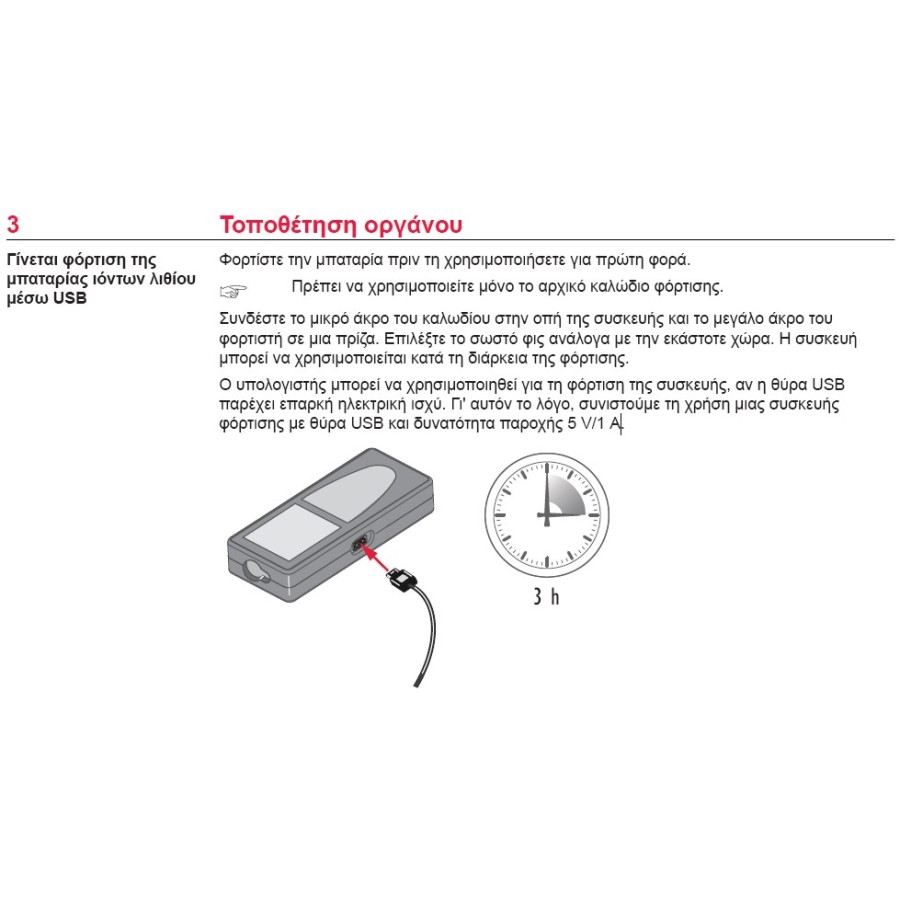

- USB-C charging and download of data
- Keyboard simulating data-transfer via Bluetooth®
- Bluetooth® 5.0 Technology for error-free data transfer
- Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)

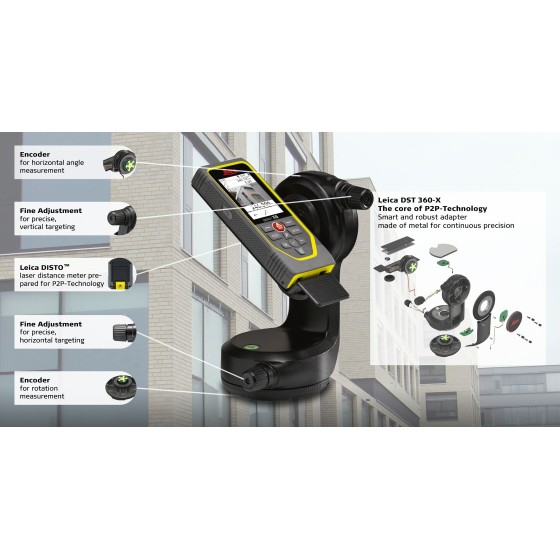

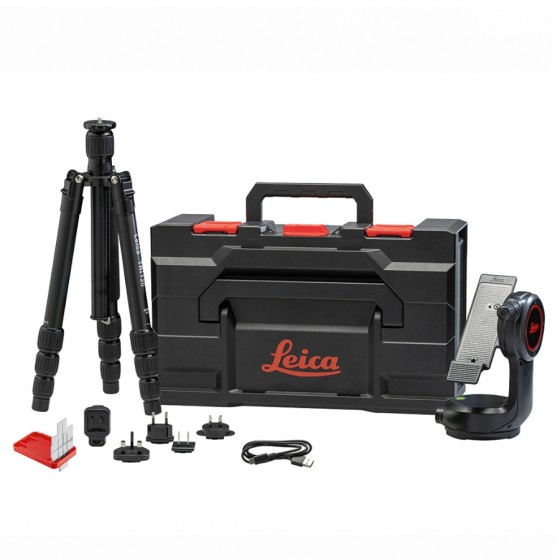

- Compatible with DST 360-X adapter to enable P2P measurements
Technical Specifications:
- Accuracy with favourable conditions: 1.0 mm
- Accuracy with unfavourable conditions: 2.0 mm
- Range with favourable conditions: 0.05 – 250 m
- Range with unfavourable conditions: 0.05 – 150 m
- Smallest unit displayed 0.1 mm
- X-Range Power Technology: Yes
- Laser class: 2, 635 nm, <1 mW

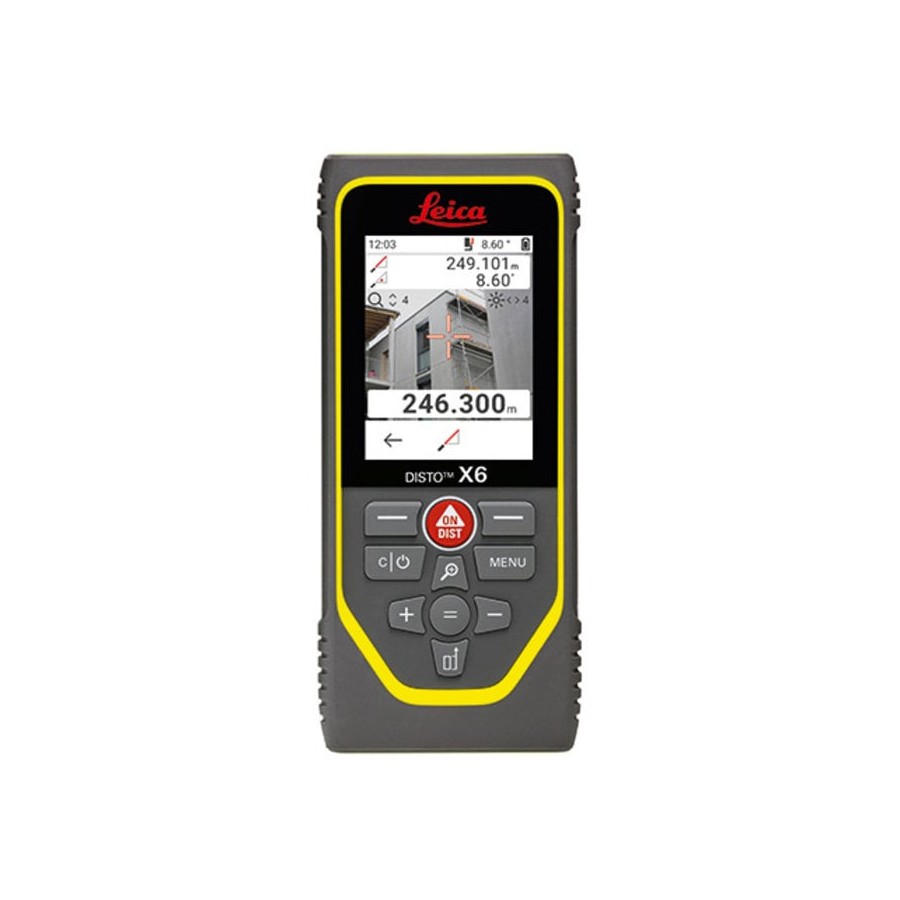

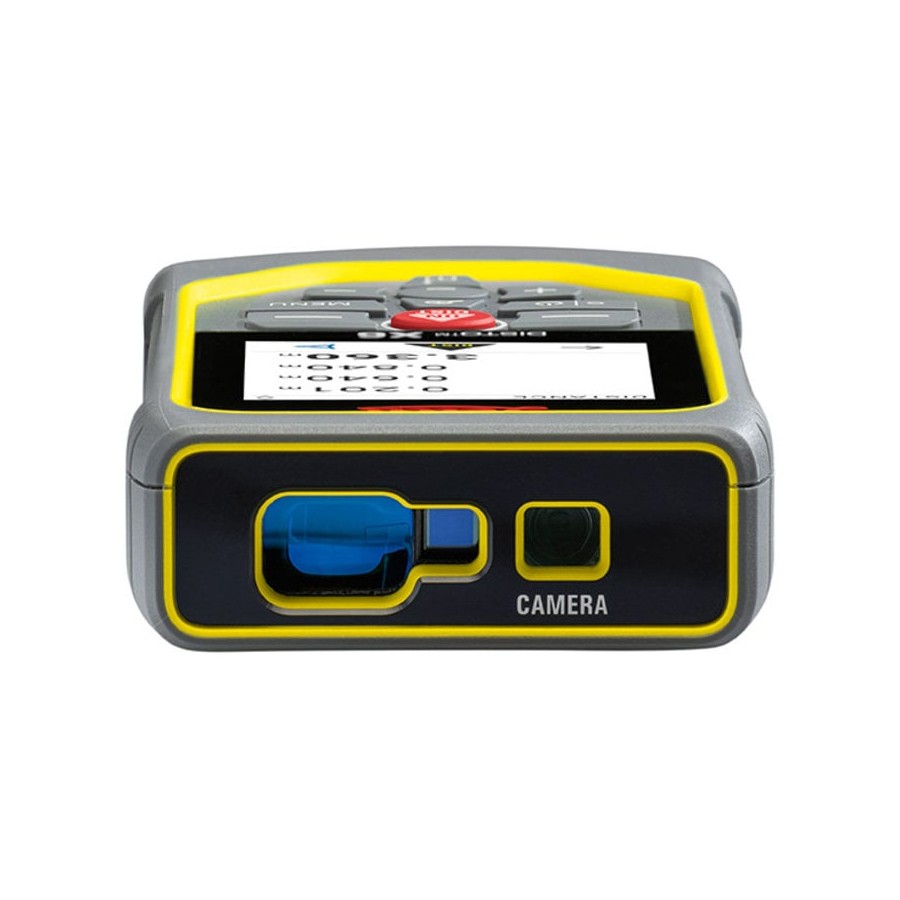

- Digital Pointfinder with 4-fold zoom: Yes
- Tilt measuring range: 360°
- Tilt measuring tolerance: ± 0.2° ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
- Protection class: IP65 (dust tight and jet water protected) drop tested from 2 m height
- Auto. laser switch off: after 90 s
- Auto. power switch off: after 180 s
- Memory: up to 300 reports
- Bluetooth® Smart: Bluetooth® v5.0
- Range of Bluetooth® Smart: up to 10 m
- Battery durability: (Li-Ion 2 000 mAh) up to 4’000 measurements, up to 8 hours operation time

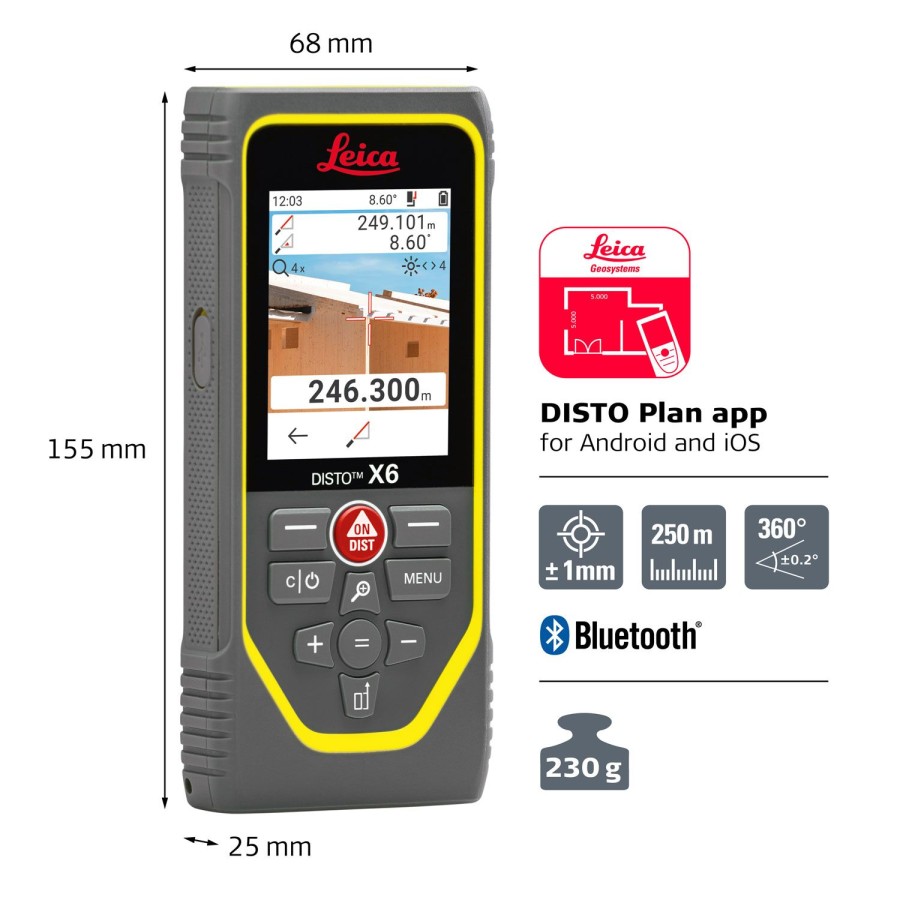

- Dimension (H x D x W): 154 x 68 x 25 mm
- Weight (with batteries): 230 g
- Temperature range storage | operation: -25 to 70 °C | -10 to 50 °C

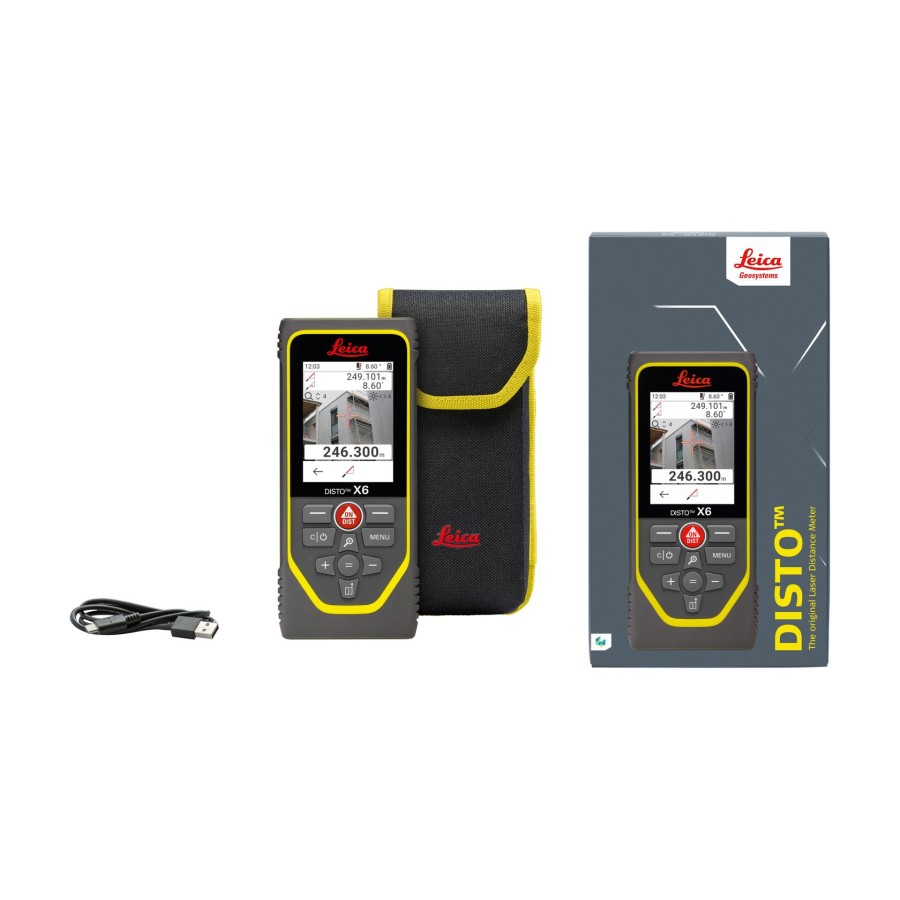

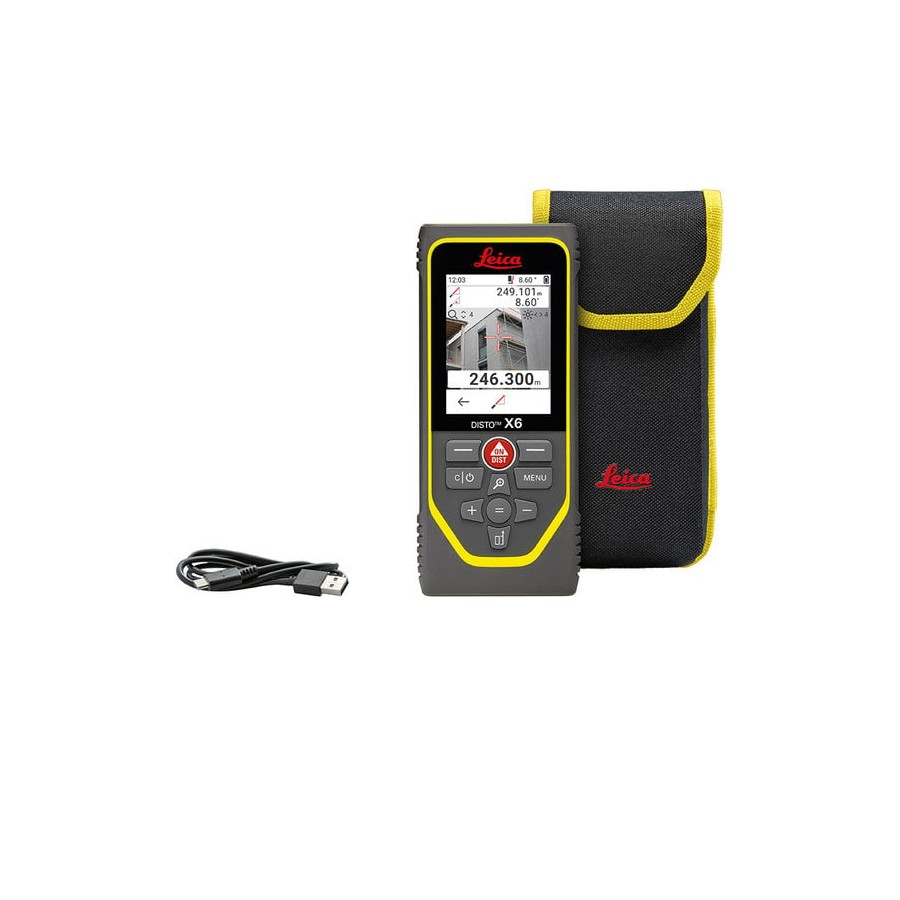

Leica DISTO X6 includes:
- Leica DISTO X6 laser distance meter
- Hand loop
- Pouch
- USB cable
- Safety instructions
- Calibration Certificate Silver
- Quick Start with QR code linking to online manual
- 3 Years warranty card
Data sheet
- Bluetooth
- Bluetooth® v5.0
- Tilt Sensor
- Yes
- Screen
- Color
- Dimensions
- 154 X 68 X 25 Mm
- Weight
- 230 g
- Range
- 250 m
- Use
- Internal/External
- Warranty
- 2 + 1 years
- Power supply
- Li-Ion
- Laser Diode
- Red
- Working Temperature
- -10°C~50°C
- Laser Class
- 2
- Accuracy (mm to 10 meters)
- ± 1
- Dust / Water Protection
- IP65
- Digital Pointfinder
- Yes
- Touchscreen
- Yes

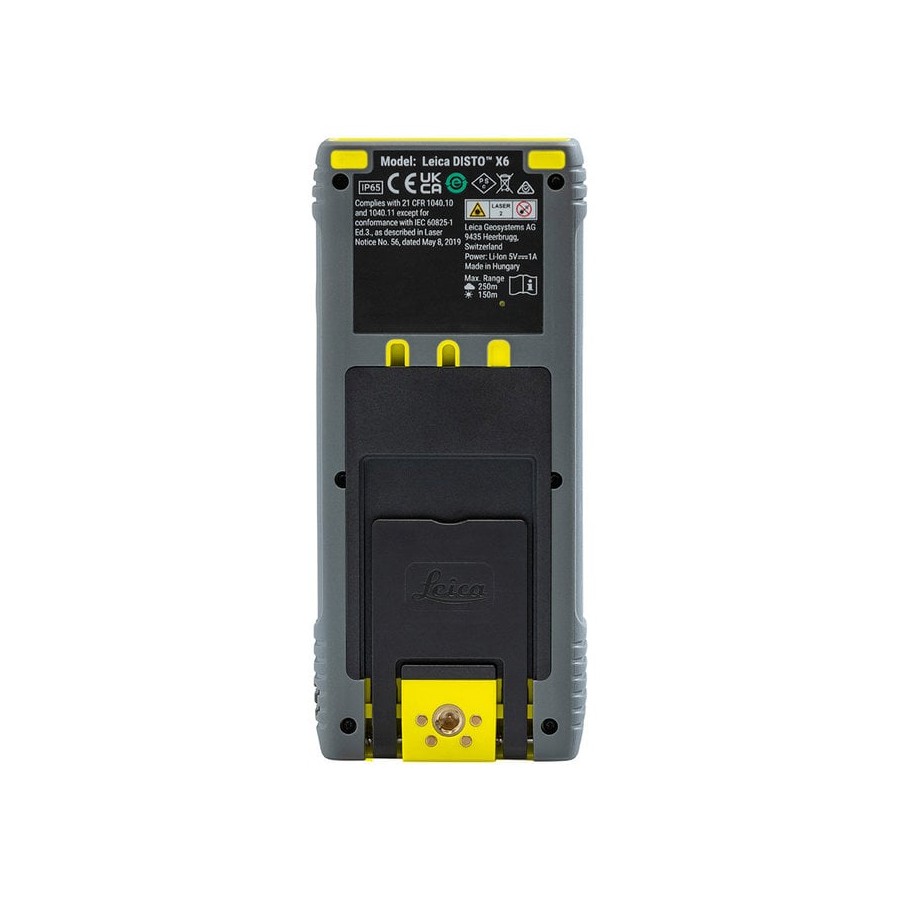

- Tripod connection 1/4"
- Yes

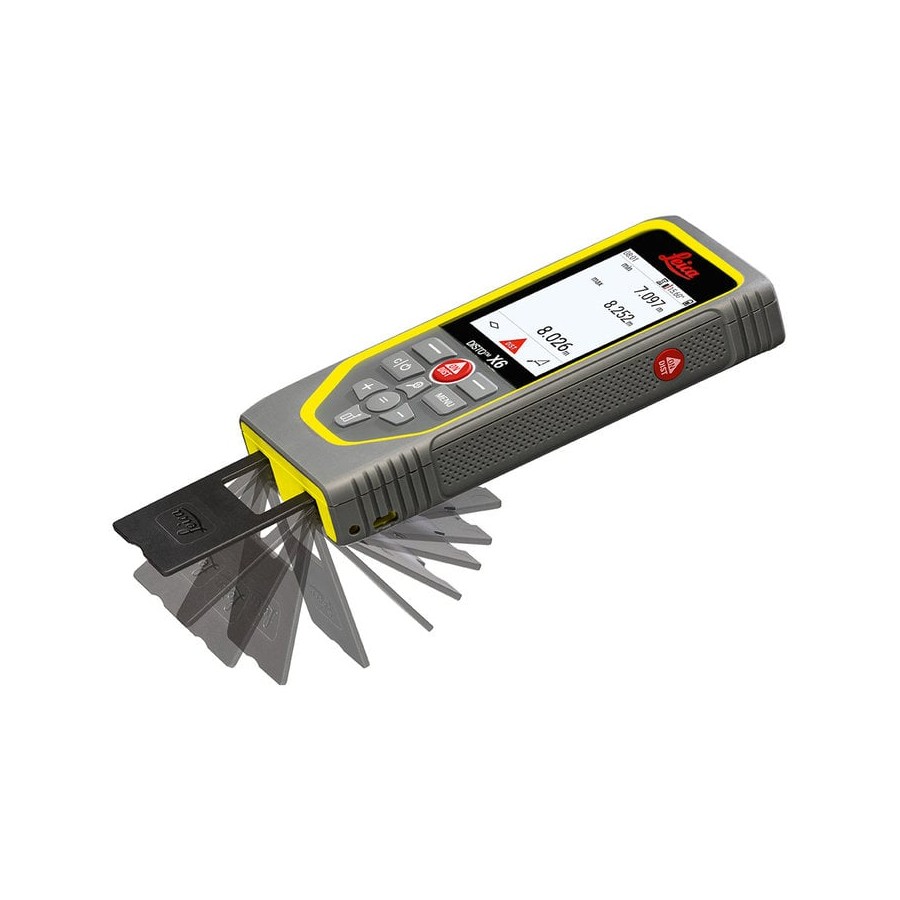

- Automatic End-Piece
- Yes
