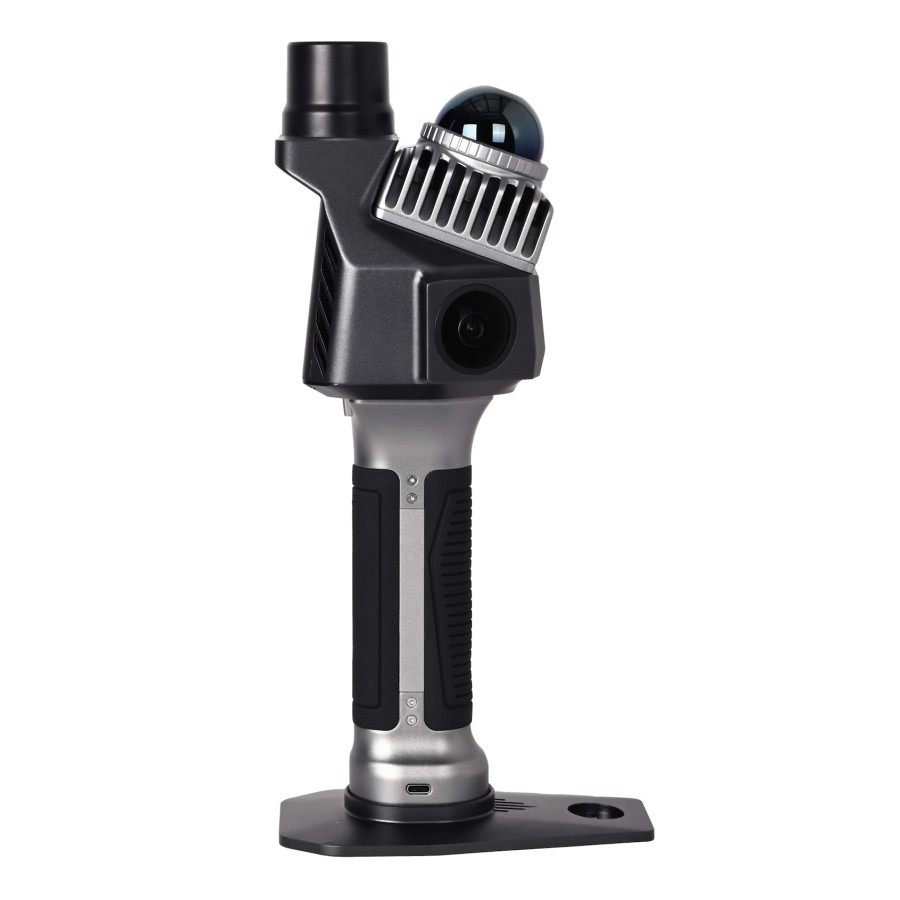

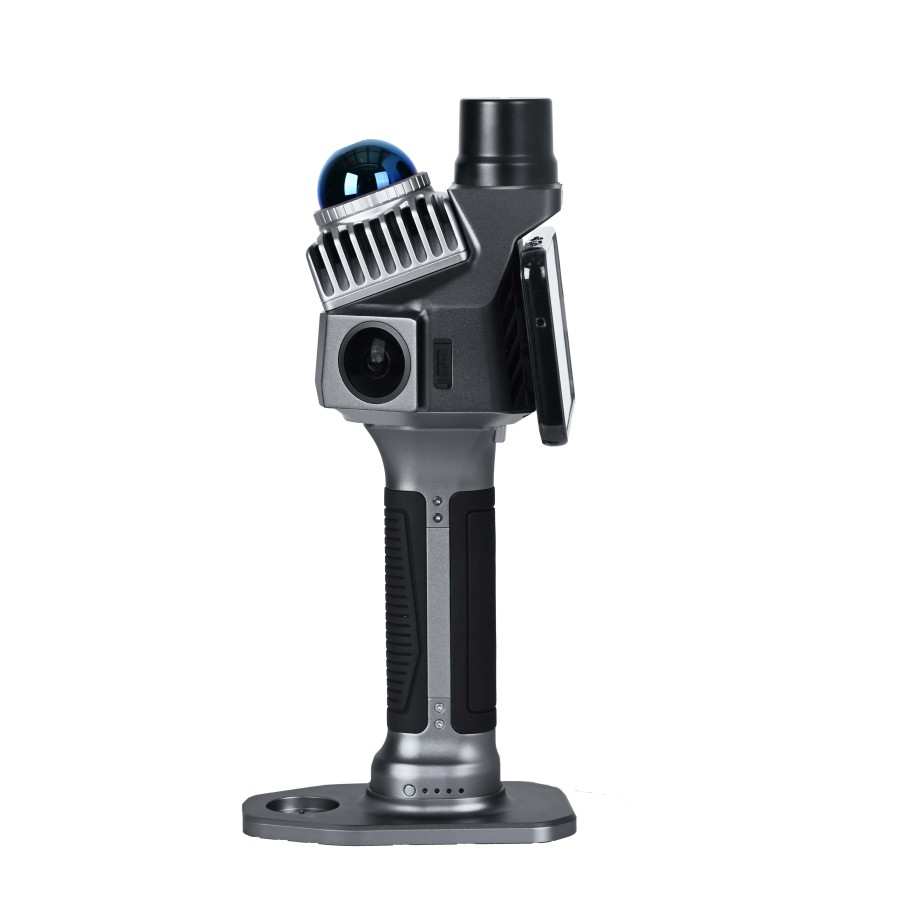

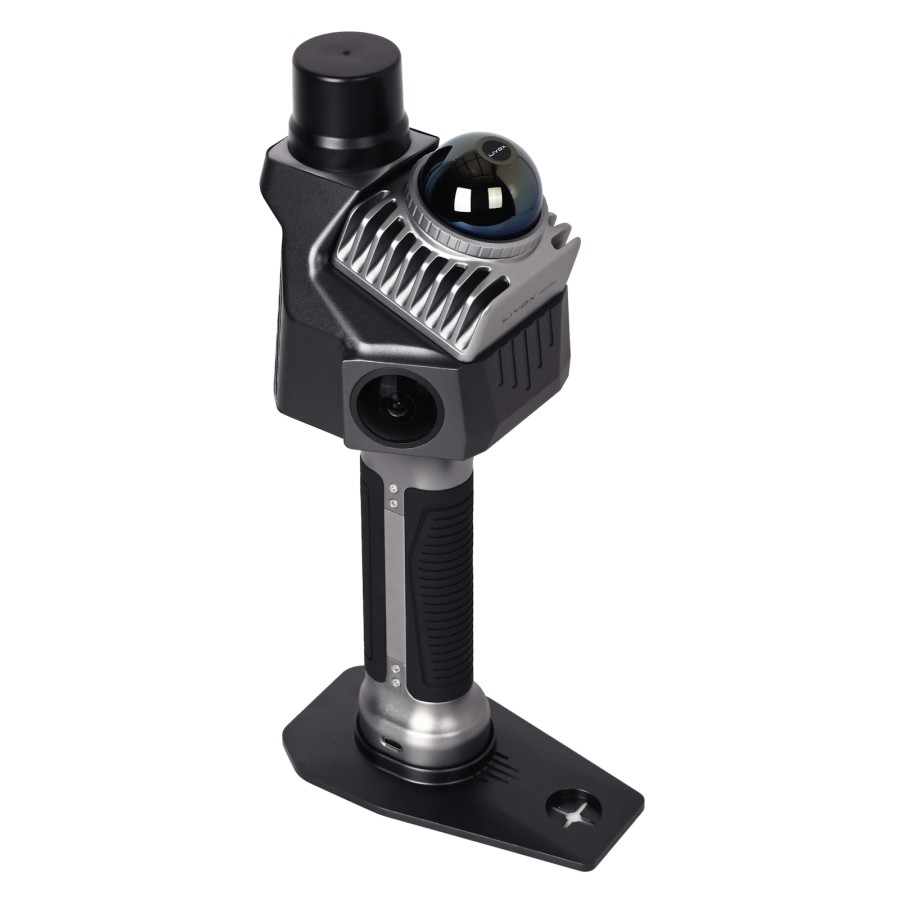

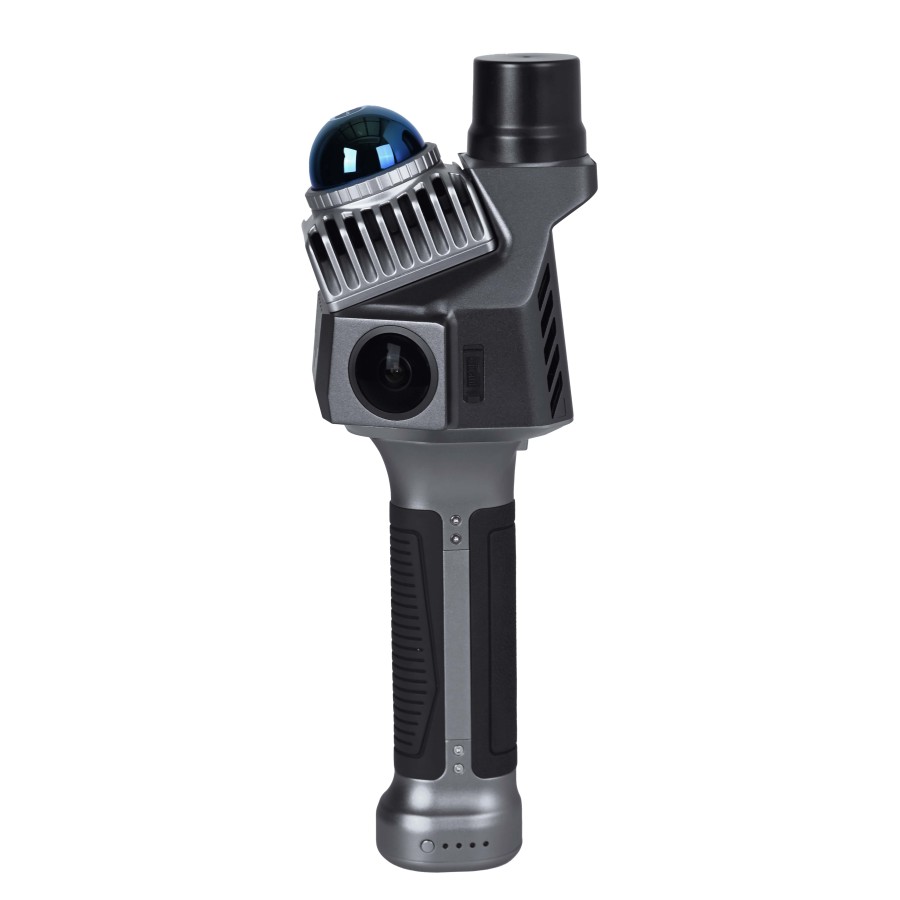

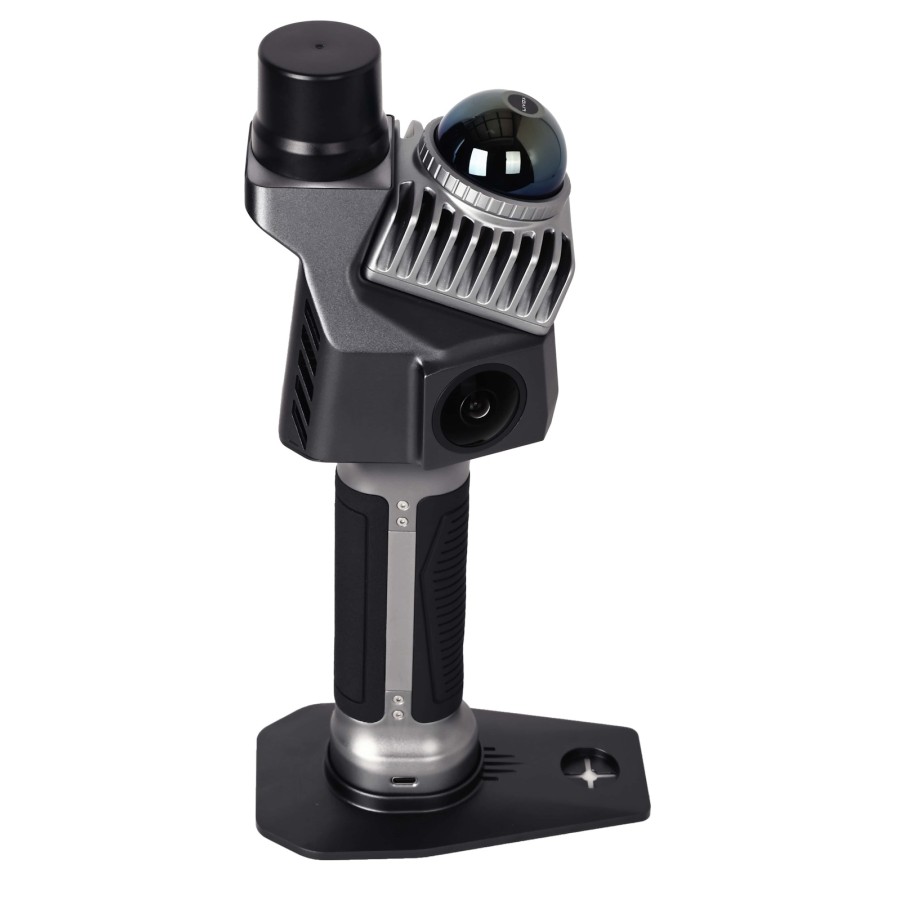

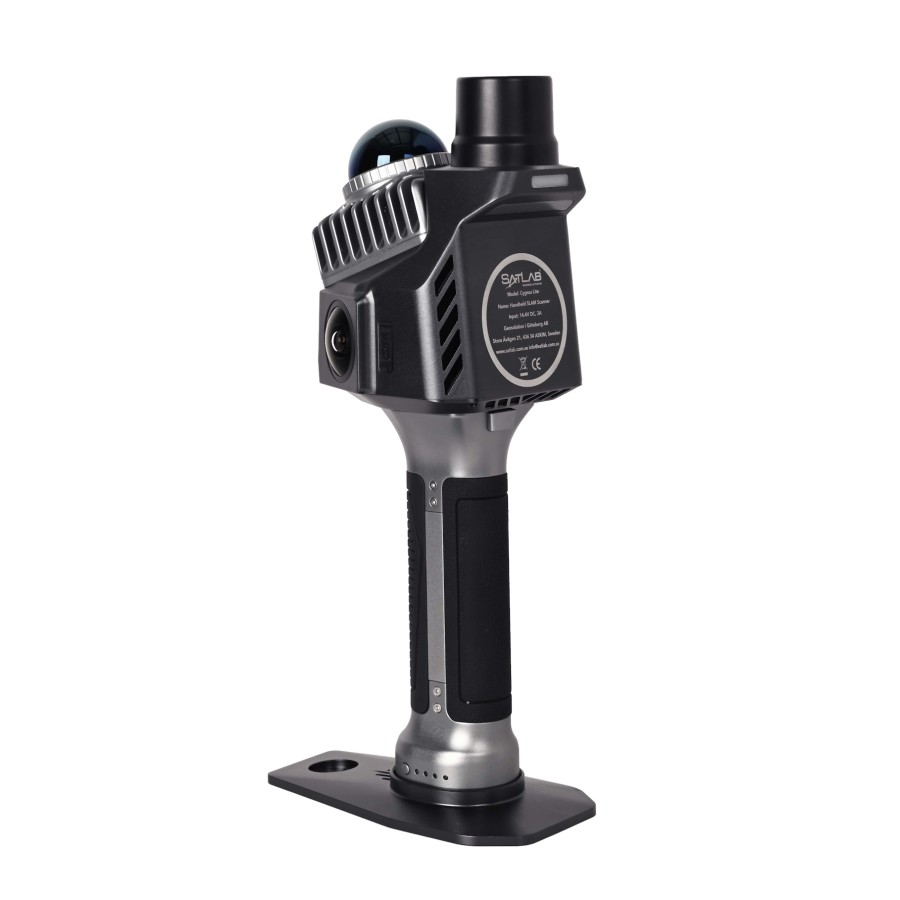

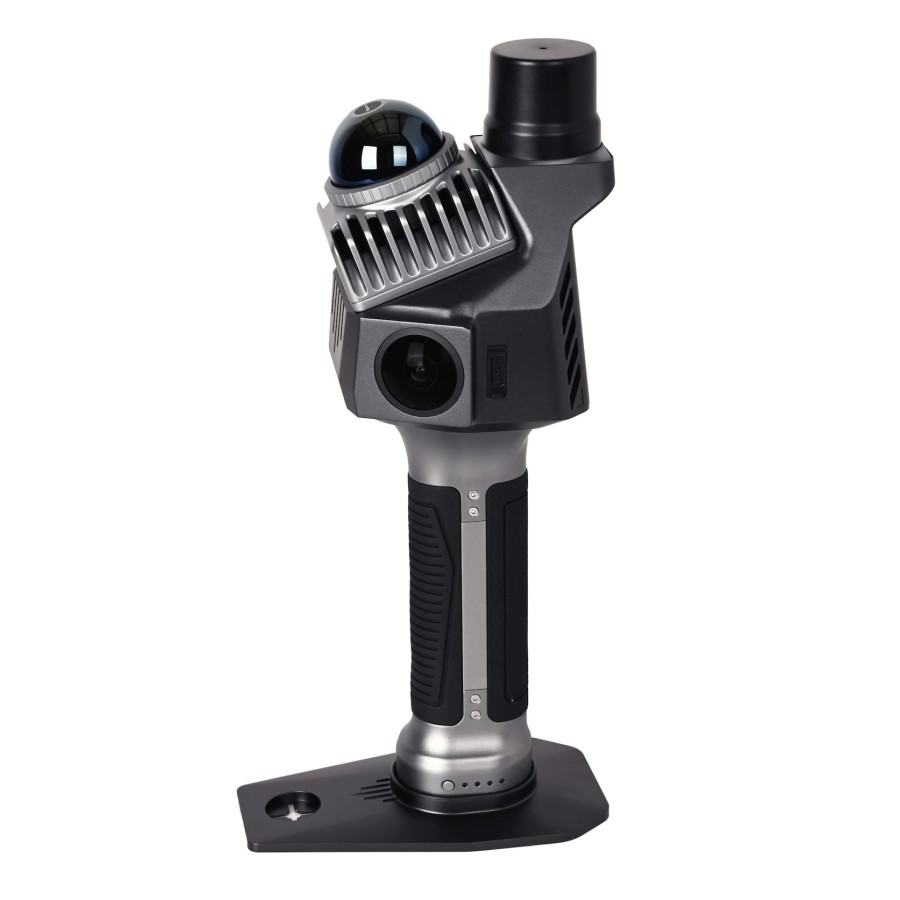

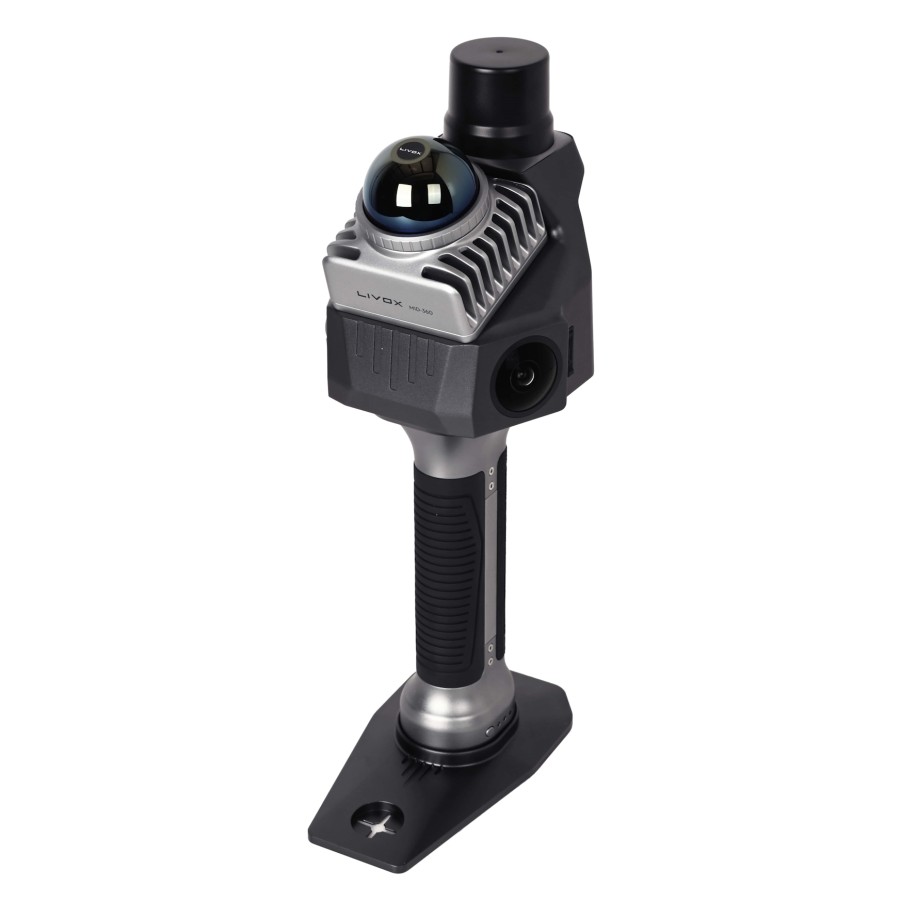

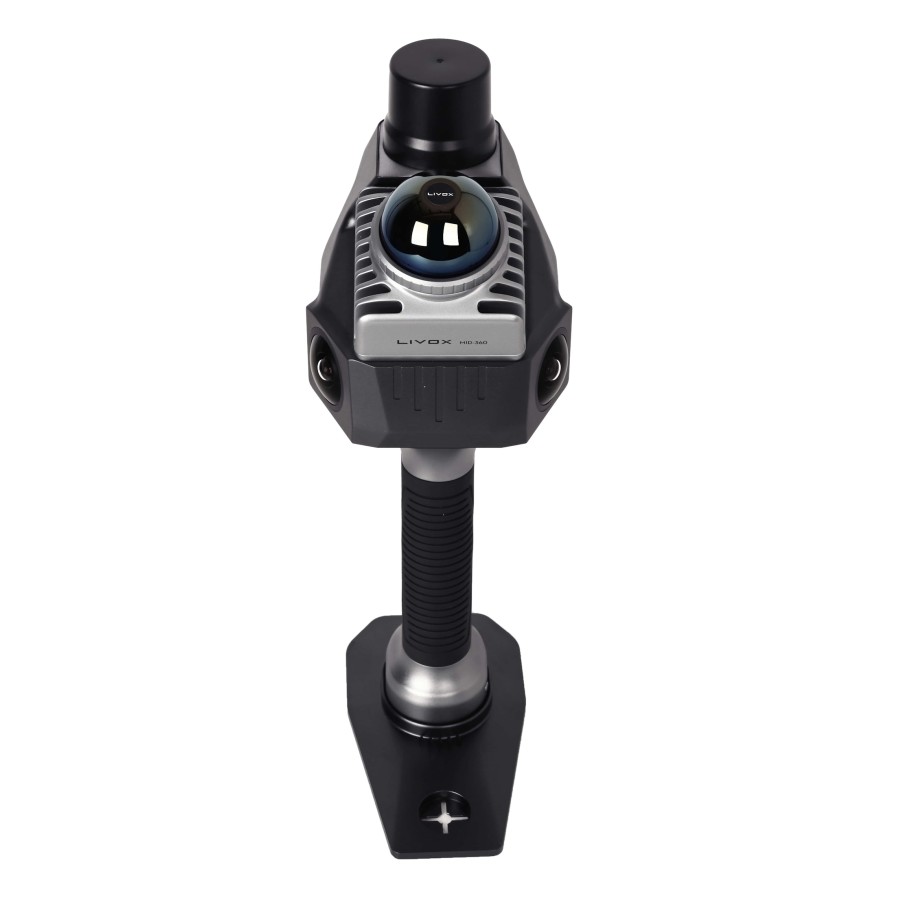

1. Compact Design, Wider Coverage
The innovative 20° tilt angle lets the laser scanner capture a wider range of scans in its standard handheld configuration, thereby minimizing potential data missing and gaps.
2. Realistic Reconstruction with Cameras
With two 12 MP HD cameras, Cygnus Lite captures clear imagery for point cloud RGB colorization with full field-of-view coverage, delivering highly realistic and detailed 3D reconstructions.
3. Enhanced Accuracy via Built-in RTK
The Cygnus Lite utilizes advanced RTK and SLAM technologies to deliver stable, accurate, and reliable positioning data. It features a high-precision multi-constellation, multi-frequency GNSS module for enhanced performance.

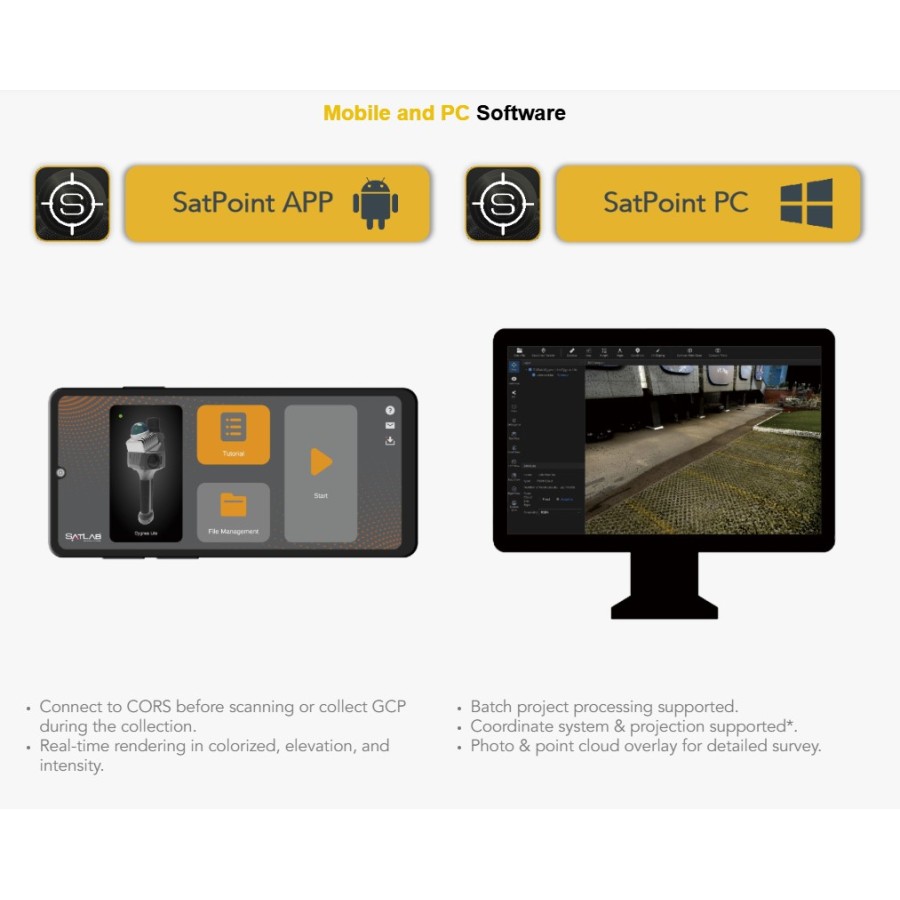

Software:
SatPoint APP

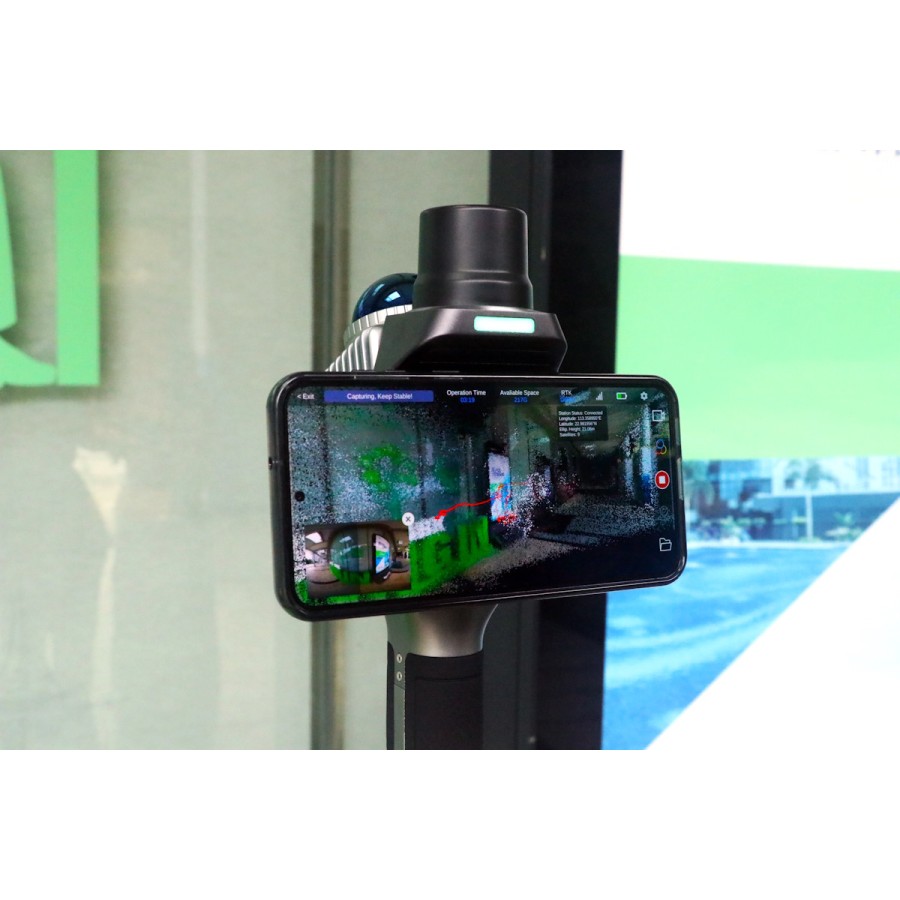

In SatPoint APP on mobile, the ultimate simple plug-and-play operation allows anyone to become a 3D scanning expert in minutes. Real-time color point cloud gives you the assurance that everything you want will be seen and precisely captured.
SatPoint PC
After scanning, SatLab SatPoint PC software can be used to generate and export point cloud data of flawless quality. Data can be measured more intuitively through the combination of image and point cloud overlay.
Specifications:

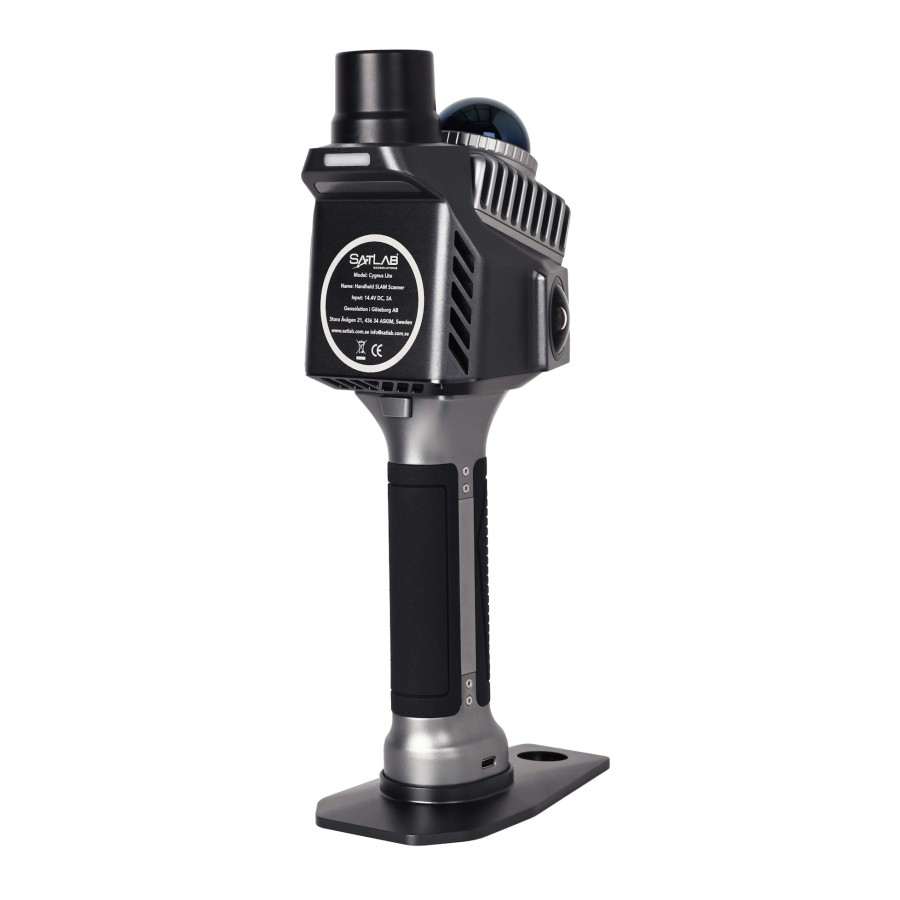

PHYSICAL & ELECTRICAL
- Weight: 1.1 kg (Include battery)
- Size: 297 * 103 * 104 (Include battery) ;133 * 104 * 103 (Mainframe)
- Battery: 3150 mAh * 2 (Maximum 90 minutes working for each battery)
- Input: 14.4 v
- Charging: Type-C, PD-30 W (Average1.5hr charging time for each battery)
OPERATION
Mobile Device. Cygnus Live APP for Android and iOS including: live 3D in colorized mode, Intensity mode and elevation mode while scanning, device control, device status and data management.
- iOS 12 or higher recommended devices: iPhone series 12, 13, 14.
- Android 12 or higher recommended devices: Samsung Galaxy S22, S23, S24.
- Support MagSafe stand for mobile devices.
LiDAR & IMAGING
- Camera: 12 MP * 2
- Camera FOV: 360 * 270°
- Laser Class: 1
- LiDAR FOV: 360 * 59 °
- Point Measurement Rate: 200,000 pts/sec
- Frequency: 10 hz
- Range: 0.1 ~ 40 m @ 10% ; 0.1 ~ 70 m @ 80%
SYSTEM PERFORMANCE
- RTK Performance: 0.8 cm + 1 ppm (H) ; 1.5 cm + 1 ppm (V)
- Processing: Real-time processing / Post processing
- Range Noise: ±1 cm
- Accuracy Indoor: ±2.5 cm
- Precision Indoor: ±1 cm
ENVIRONMENTAL
- Robustness: Designed for indoor and outdoor use
- Temperature: Operating: -20 ~ +55℃ ; Storage: -20 ~ +60℃
- Ingress Protection: IP54
DATA TRANSFER
- Format: .las, .pcd, .ply
- Detachable Storage: TF Card, 256GB, max 1TB extendable.
- Data Transfer: Wireless and USB 3.0
- Desktop Software: Cygnus Lite Processor and SatLiDAR

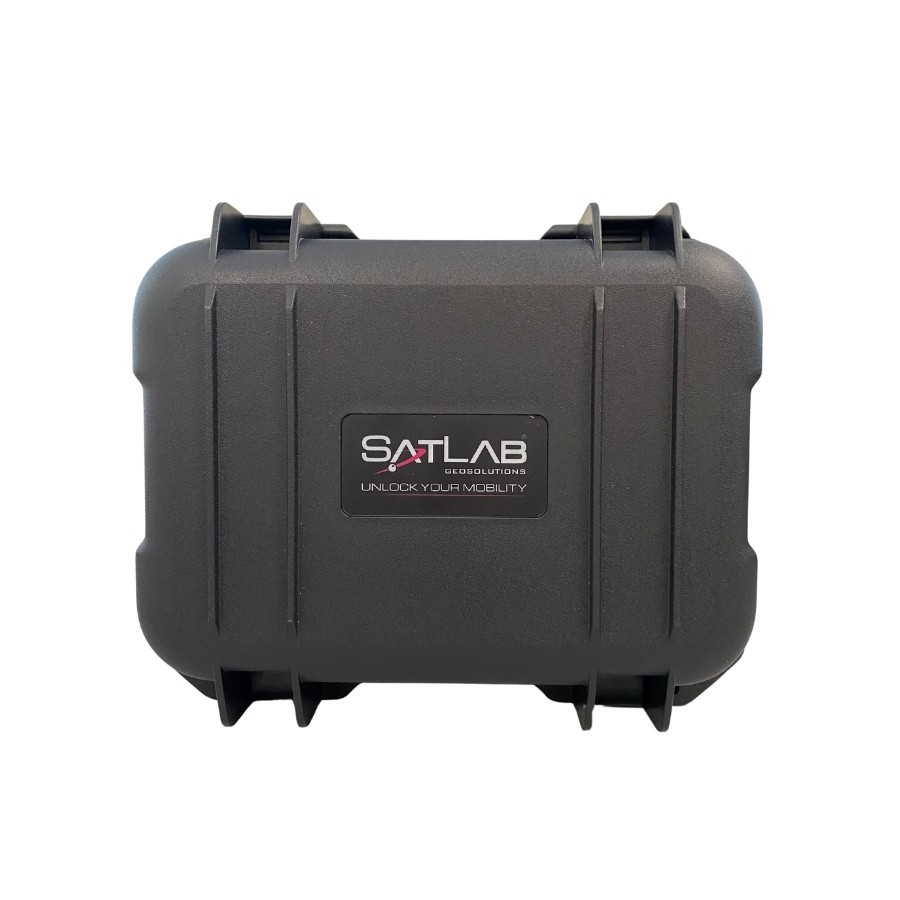

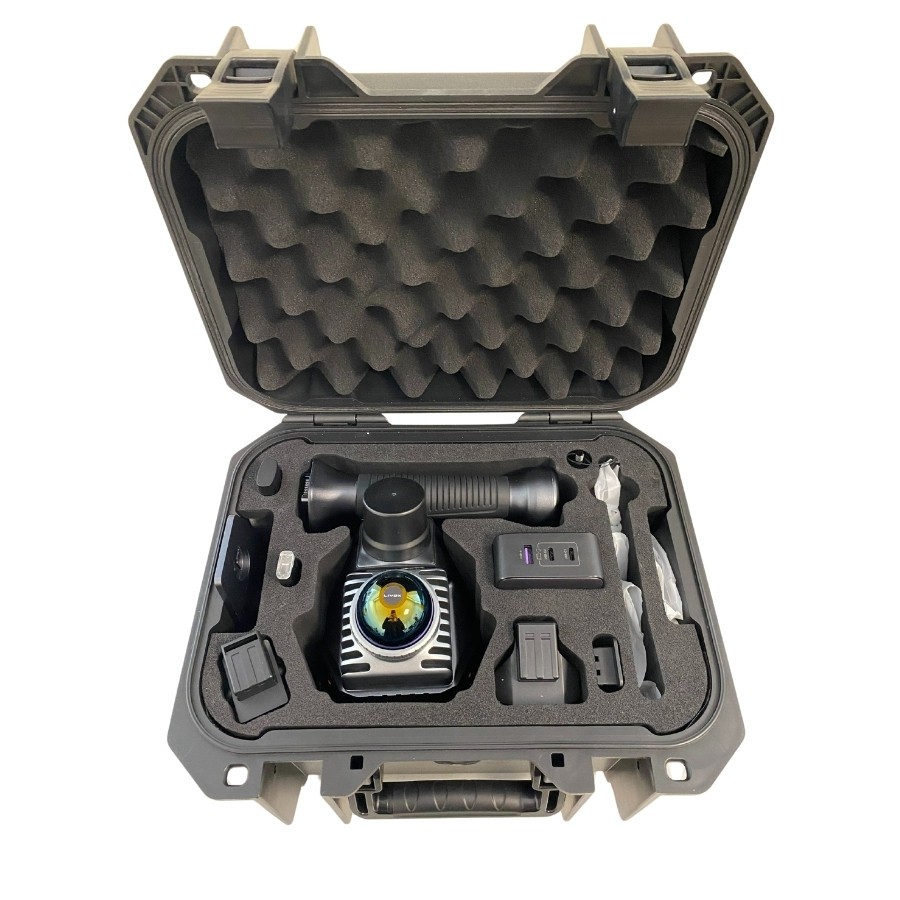

Inside the Box
- Cygnus Lite Mainframe
- 2 Handle Batteries
- GCP Benchmark
- Type-C Cable
- Type-C Charger
- TF Card 256GB
- Polishing Cloth
- MagSafe Ring
- SatPoint PC USB Dongle
Applications
- Volume Measurement
- Scan to BIM
- Indoor Mapping
- 3D Reconstruction
