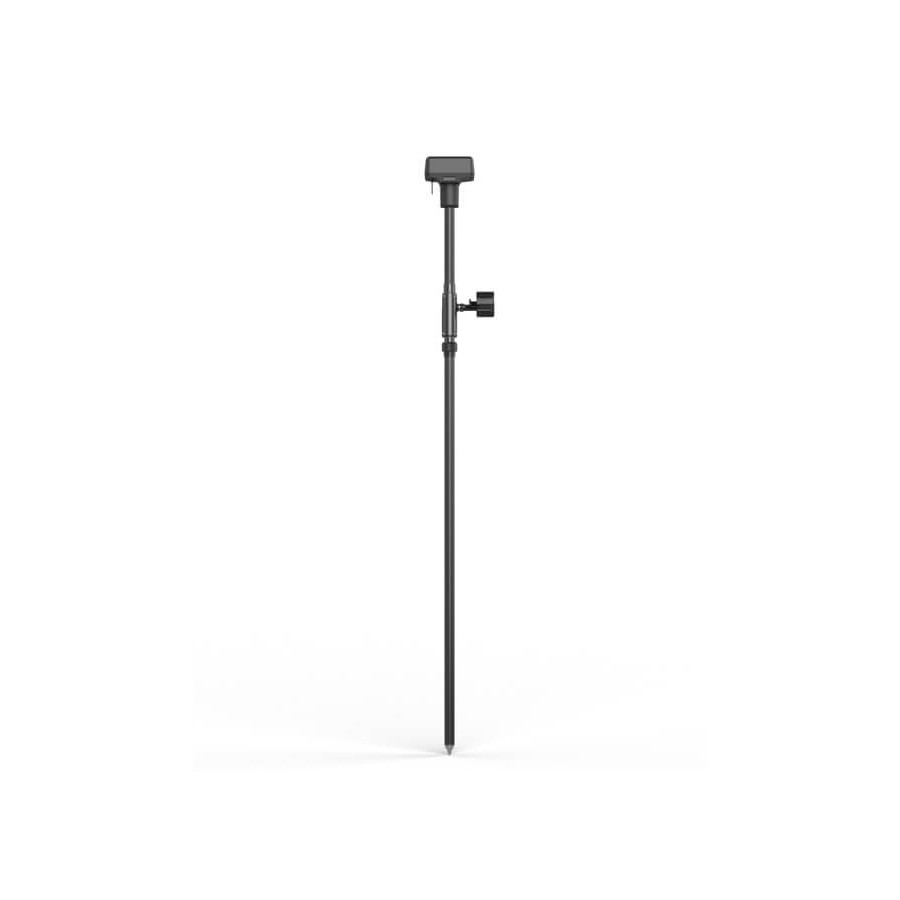

DJI D-RTK 2 High-Precision GNSS Mobile Station

Overview

Supports four global satellite navigation systems — BeiDou, GPS, Galileo, GLONASS, and 11-frequency satellite reception, providing real-time differential corrections to facilitate the aircraft in centimeter-level precision positioning. It also supports coordinated operations involving multiple drones and an IP65 protection rating.

Highlights:

• Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B
• Connect multiple drones to conduct coordinated operations
• IP65 Ingress Protection

In The Box

• D-RTK 2 Body × 1
• Extension Rod × 1
• Charging Hub × 1
• AC Power Adapter × 1
• Intelligent Battery (WB37) × 2
• Battery Cover × 1
• AC Power Cable × 1
• USB-C Cable × 1
• USB-C OTG Cable × 1
• Hex Key × 1

Specifications

Simultaneously receives:

• GPS: L1 C/A, L2, L5
• BeiDou: B1, B2, B3
• GLONASS: F1, F2
• Galileo: E1, E5A, E5B

Positioning Accuracy:

• Single Point Horizontal: 1.5 m (RMS)
• Vertical: 3.0 m (RMS)
• Horizontal (RTK FIX): 1 cm+1 ppm (RMS)
• Vertical (RTK FIX): 2 cm + 1 ppm (RMS)
• 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.

Other Specifications:

• IP65 Rating
• Operating Temperature: -20° to 55° C (4° to 131° F )

Compatibility

• Matrice 350 RTK
• DJI Inspire 3
• DJI Mavic 3E
• DJI Mavic 3T
• Matrice 30 Series
• Phantom 4 RTK
• Matrice 300 RTK
