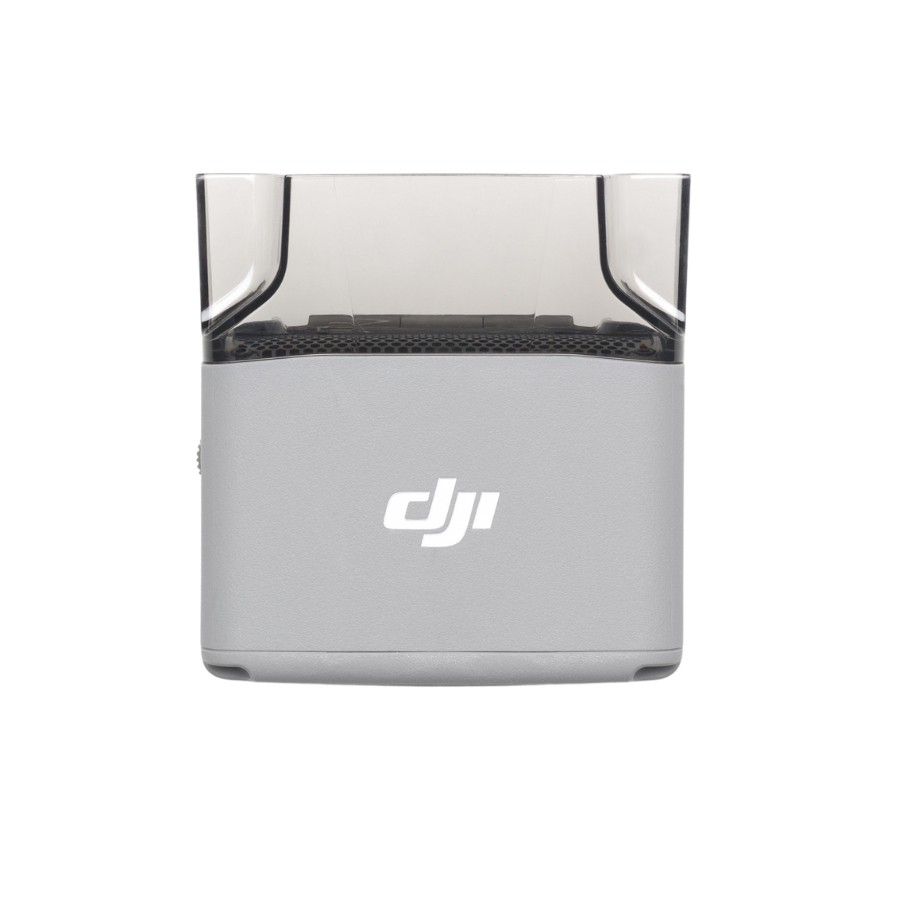

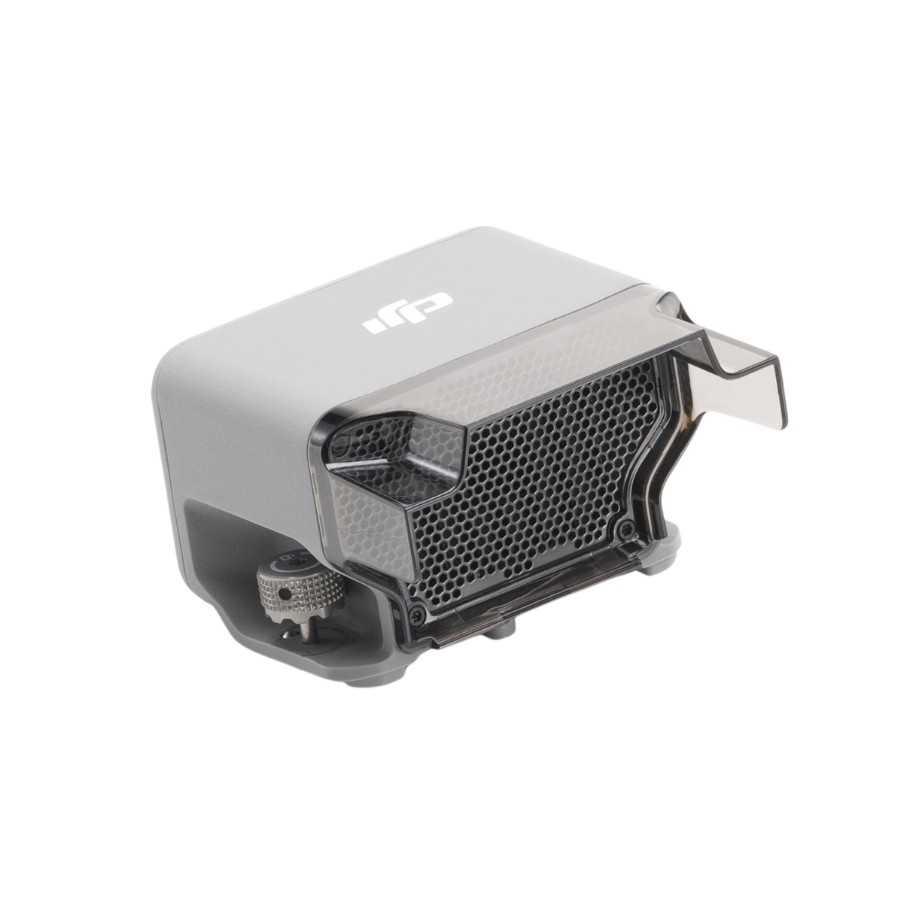

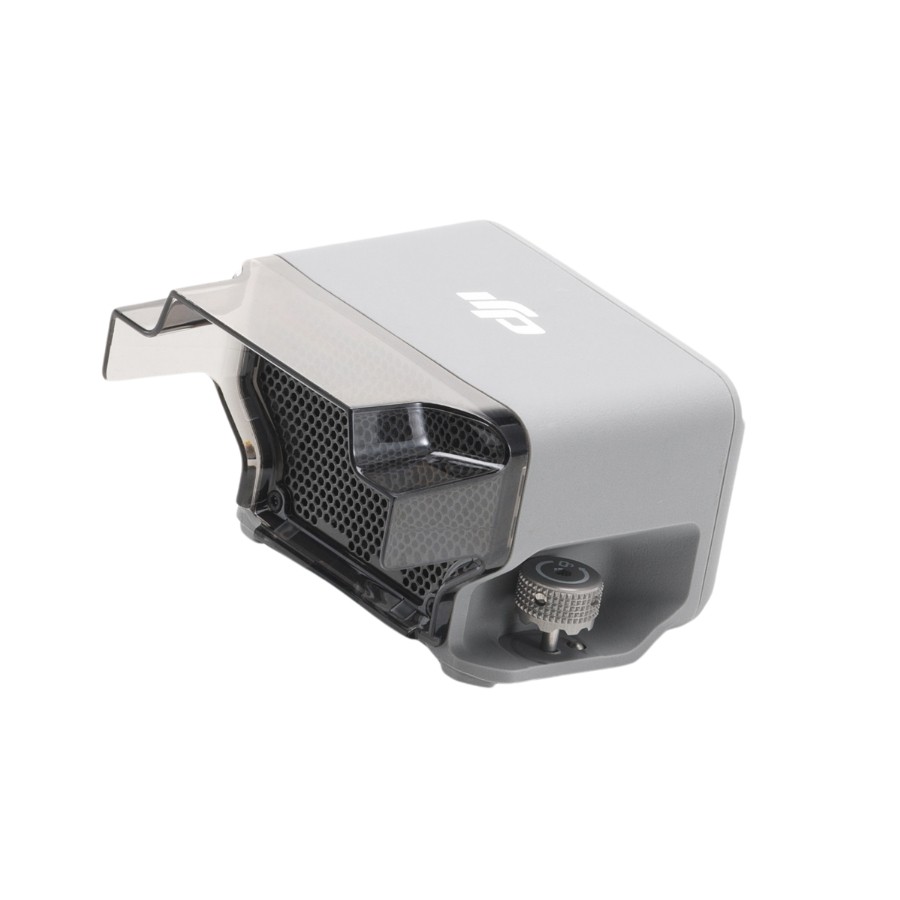

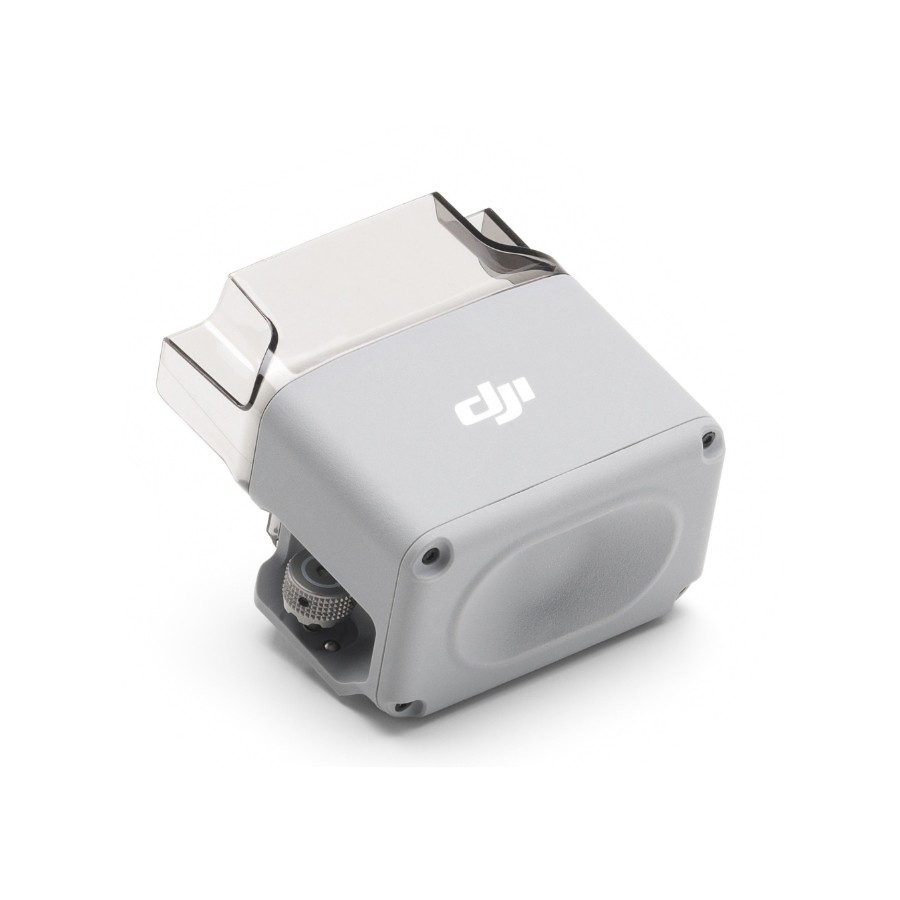

DJI AS1 Matrice 4 Speaker

In The Box

• Speaker × 1
• Spare Adapter Bracket × 1
• Hex Key × 1

Tips

1. Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.

2. When using the speaker and spotlight together, please remove the speaker adapter bracket.

3. Activate the speaker and calibrate the aircraft compass following the app prompts after installation. If a firmware update is available, please upgrade to the latest version promptly.

4.DO NOT use the speaker near people or in an urban area where noise-sensitive structures are concentrated, as the loudness could lead to accidents or injuries.

5. It is not recommended to play single-frequency sounds to avoid irreversible damage to the speaker.

Specifications

• Weight: 92.5 g (including bracket）
• Approx. 90 g (excluding bracket)
• 73×70×52 mm (L×W×H, including bracket）
• 73×70×47 mm (L×W×H, without bracket)
• Max Power: 15 W
• Max Volume: [1] At 1 meter, it can reach 114 decibels (114dB@1m)
• Effective Broadcast Range: [1] 300 m
• Broadcast Modes: Real-time broadcasting (supports echo suppression [3]), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech [2]
• Operating Temperature: -4° to 122° F (-20° to 50° C)
• Mounting Method: Quick-release hand-tightened screws

Compatibility

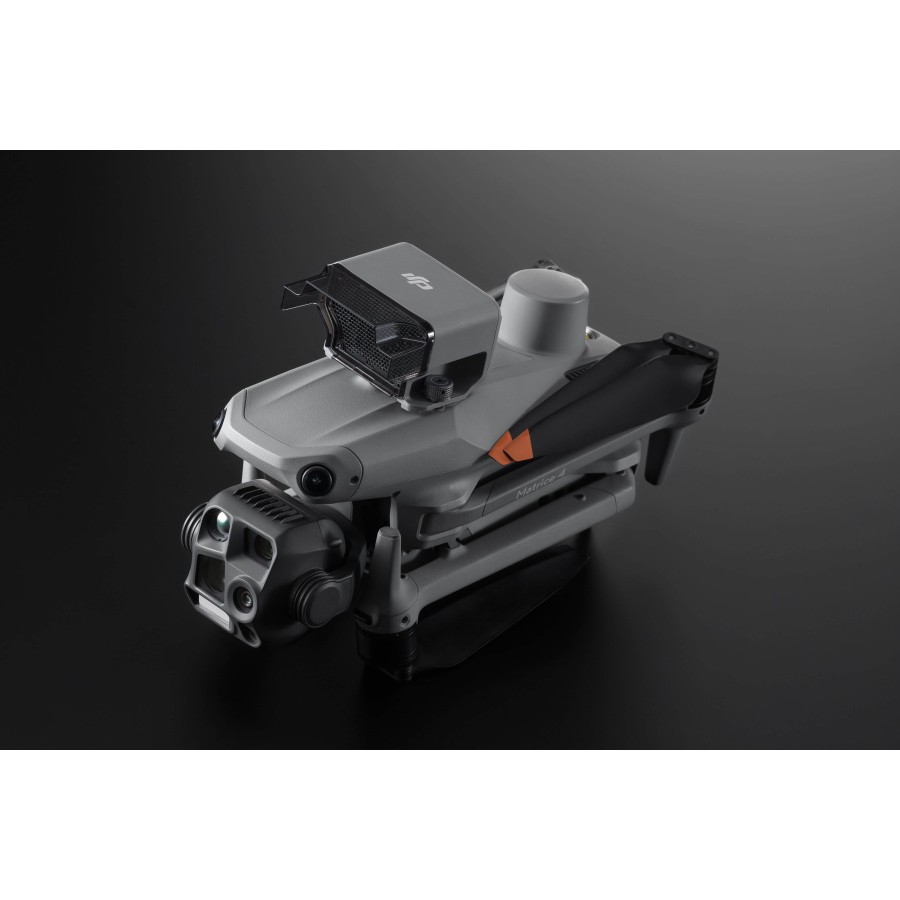

Support for use with DJI Matrice 4 Series aircraft.
