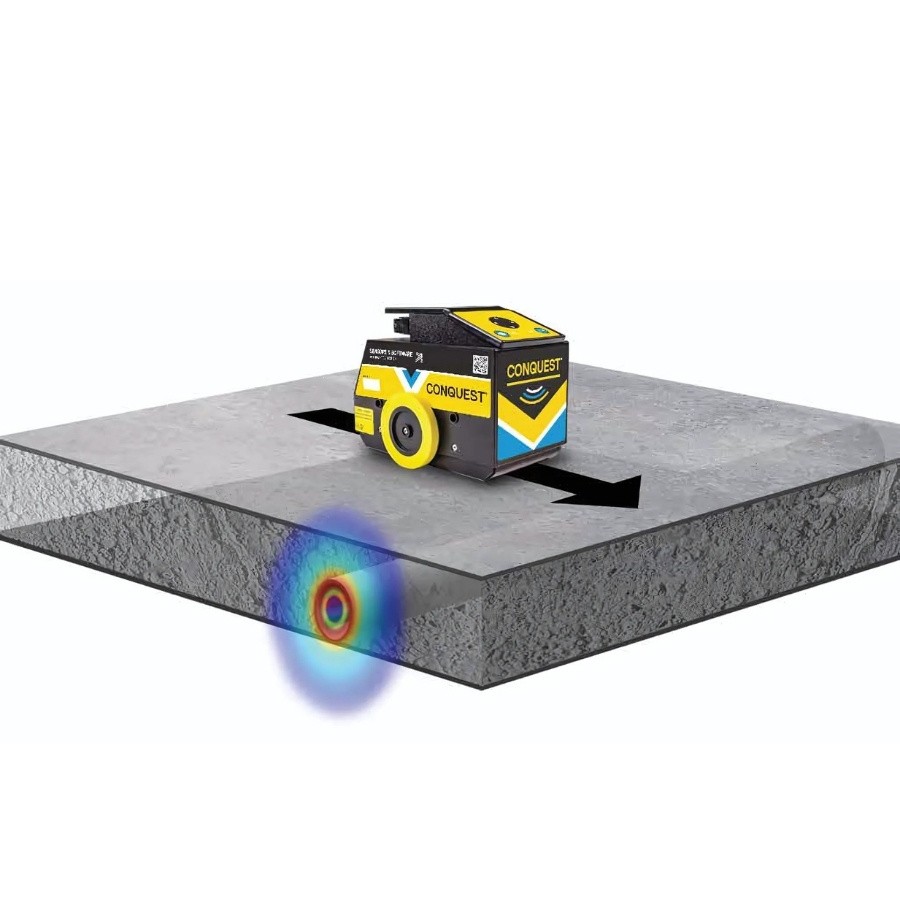

- Locate rebar, post-tension cables, metallic and non-metallic conduits embedded in concrete.

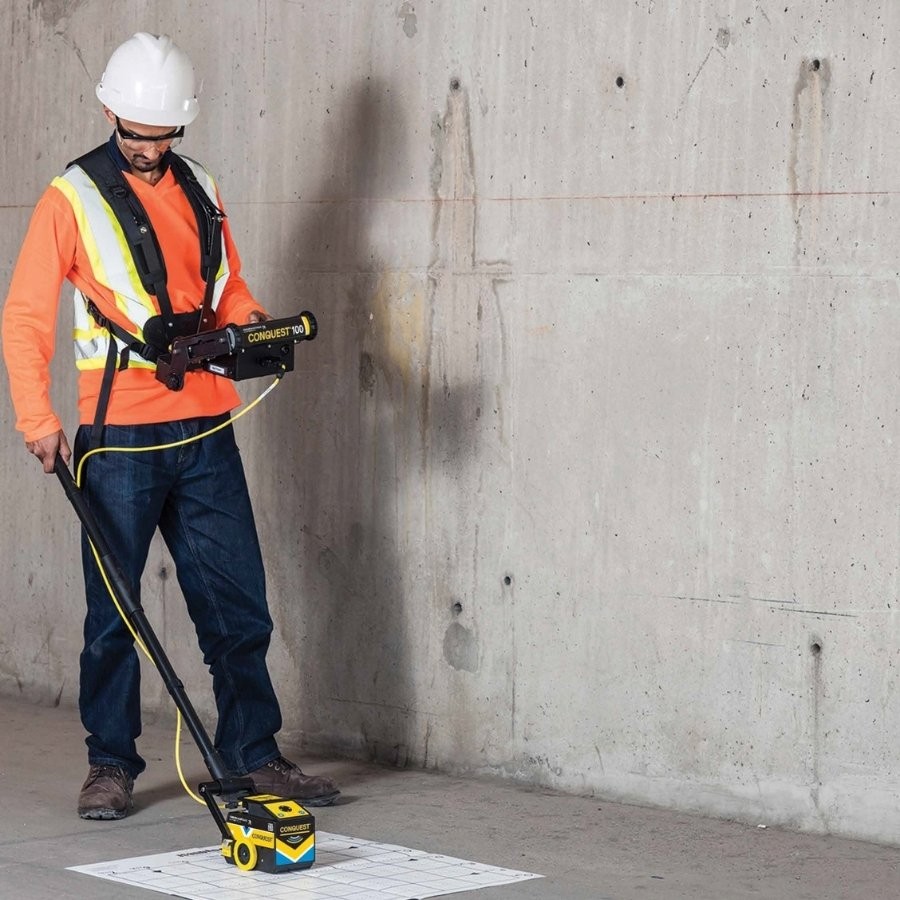

- Create detailed maps of concrete floors, decks, columns, walls and ceilings to detect embedded objects before cutting or coring.
- Detect voids beneath slab-on-grade/concrete
- Locate and map current-carrying wires using Power Cable Detector (PCD) technology.

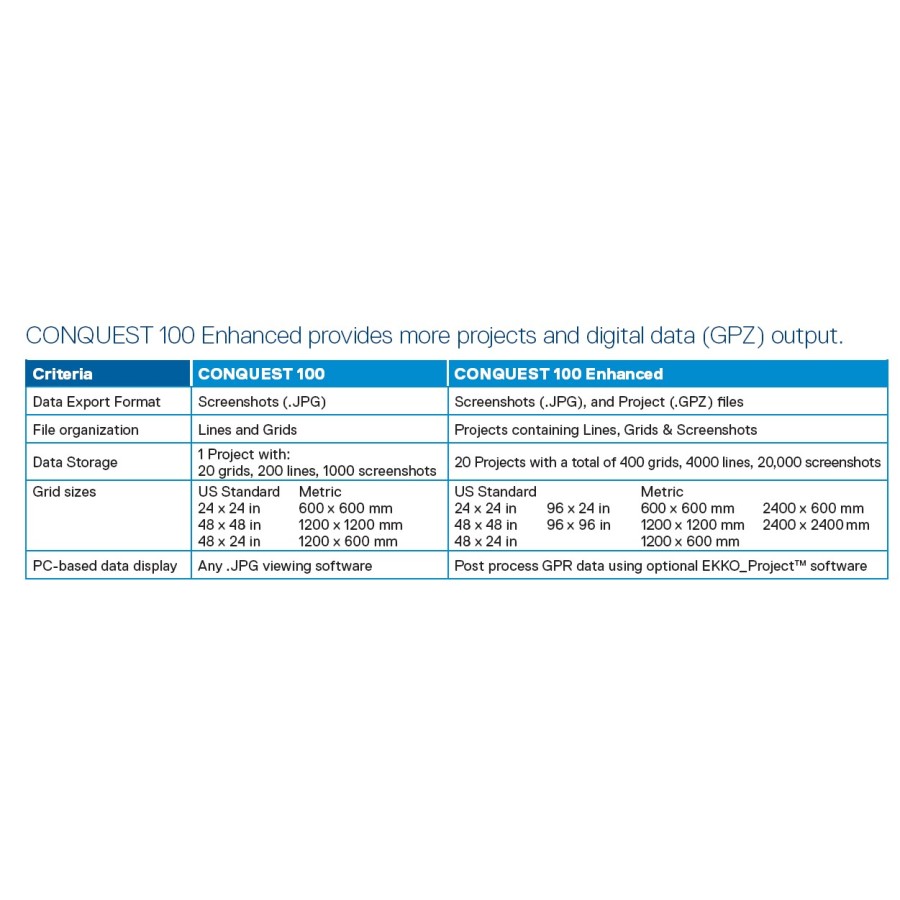

CONQUEST 100 provides powerful ways to analyse and visualize your results on-site. CONQUEST 100 Enhanced enables data export for additional post-procesing and visualization in the powerful EKKO_Project GPR Software.
GPR Sensor
Innovative ultra-wideband (UWB) GPR antenna with depth penetration up to 910mm or 36 inches.

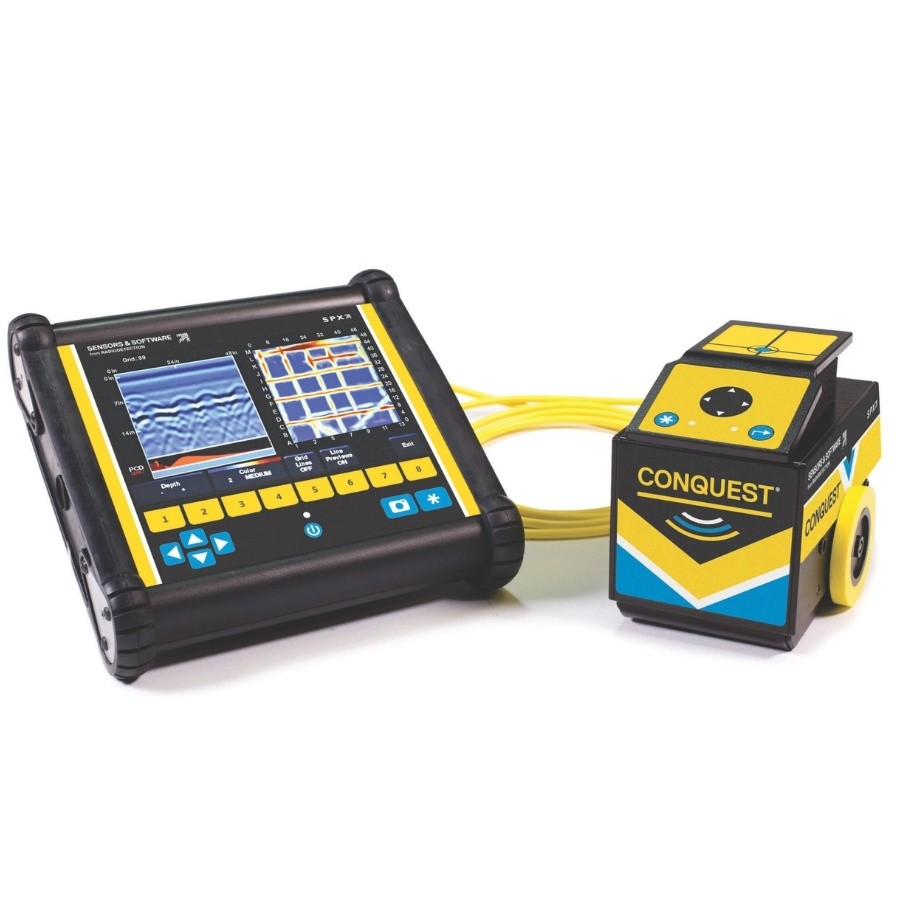

High visibility touch screen display unit
User-friendly interface allows you to quickly scan areas and classify, measure and mark objects in real-time.
Dynamic Quality
Dynamically adjusts stacking to maximize data quality during system use.
Share results from the field
Produce instant reports from your display and share via WiFi, or export results on USB for further analysis and archive.
Lightweight sensor head

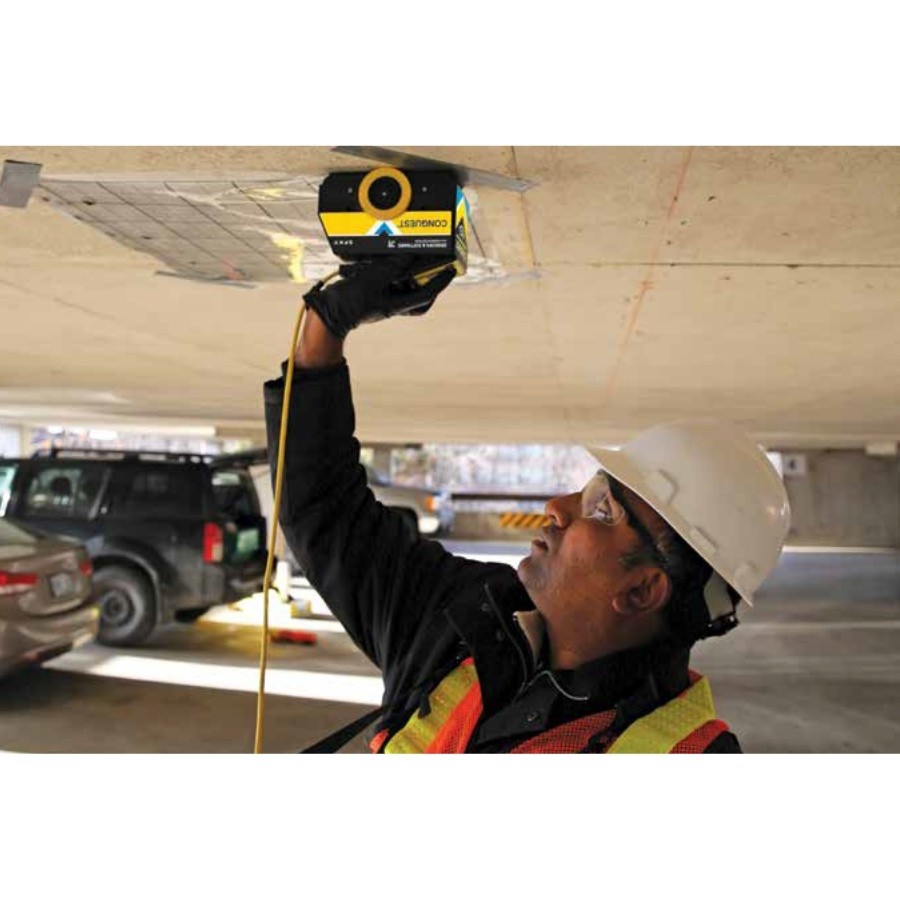

Enables easy scanning of walls and ceilings and in tight spaces.
Power cable detector (PCD)
Ensures safety by locating hazardous current-carrying cables in the survey area, and display in both line and grid scan mode.
Odometer
2 wheel drive optical encoder ≤0.5 mm resolution, designed for flat and curved surface and columns.
Long-lasting battery
Minimize downtime with long-lasting Li-Ion swappable batteries.
Specifications – Hardware
Dimensions:
- Display unit: 24 x 24 x 14 cm
- Sensor head: 15 x 13 x 19 cm
- Transport case: 56 x 46 x 27 cm
Weight:
- Display: 2.88 kg, Battery: 0.49 kg
- Sensor head: 1.10 kg
- Transport case: 7.9 kg
Power Cable Detector: Locates current at 50 Hz or 60 Hz
Power" Li-Ion battery pack (user swappable), battery life: 4-6 hrs, battery capacity: 9 Ah, AC mains adapter (100-240 V) to power system
View Depth User Defined: 30 – 91 cm
Maximum Line Length: 50 m
