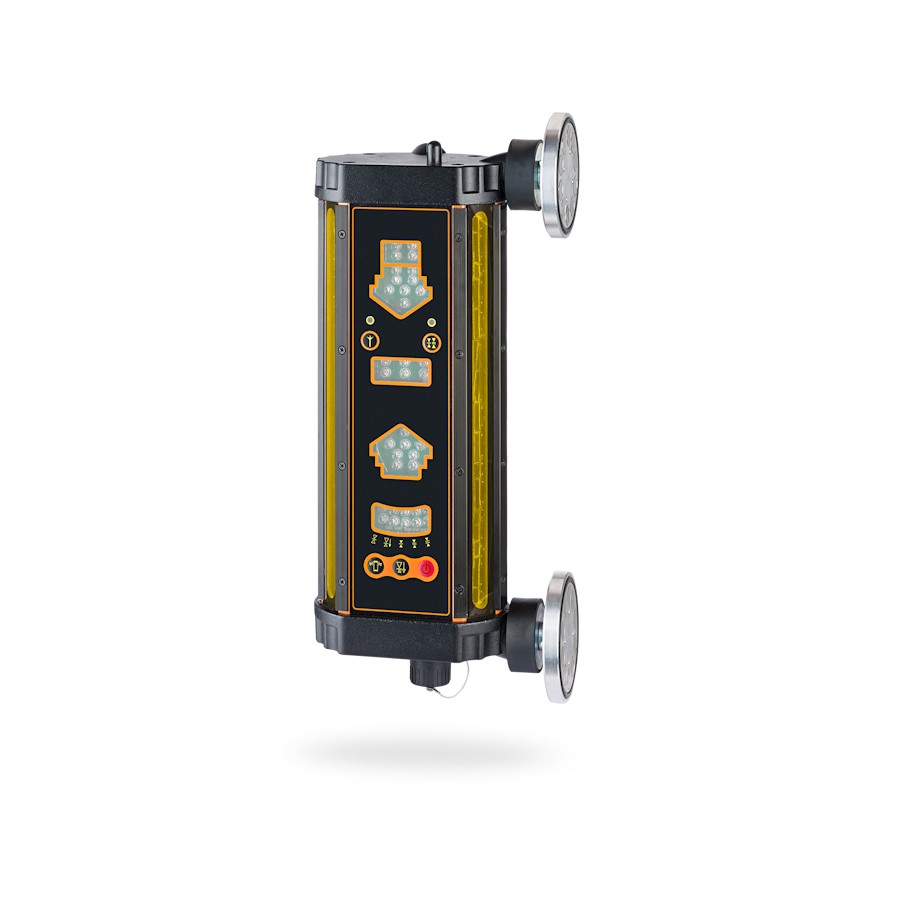

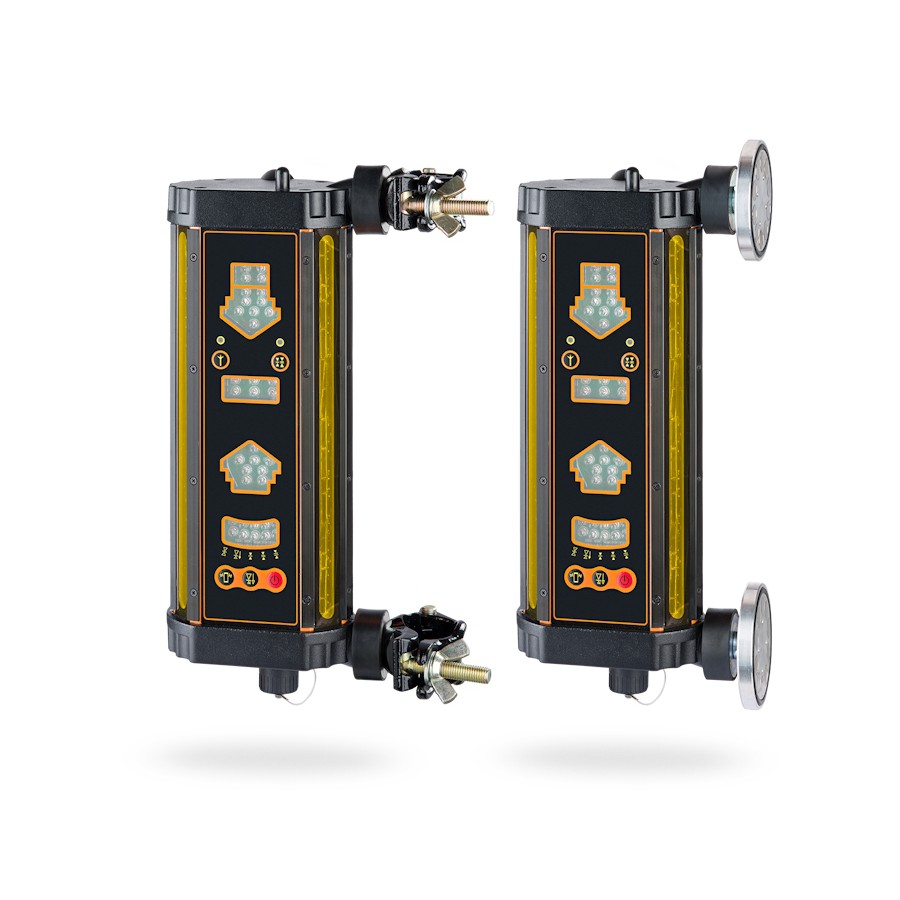

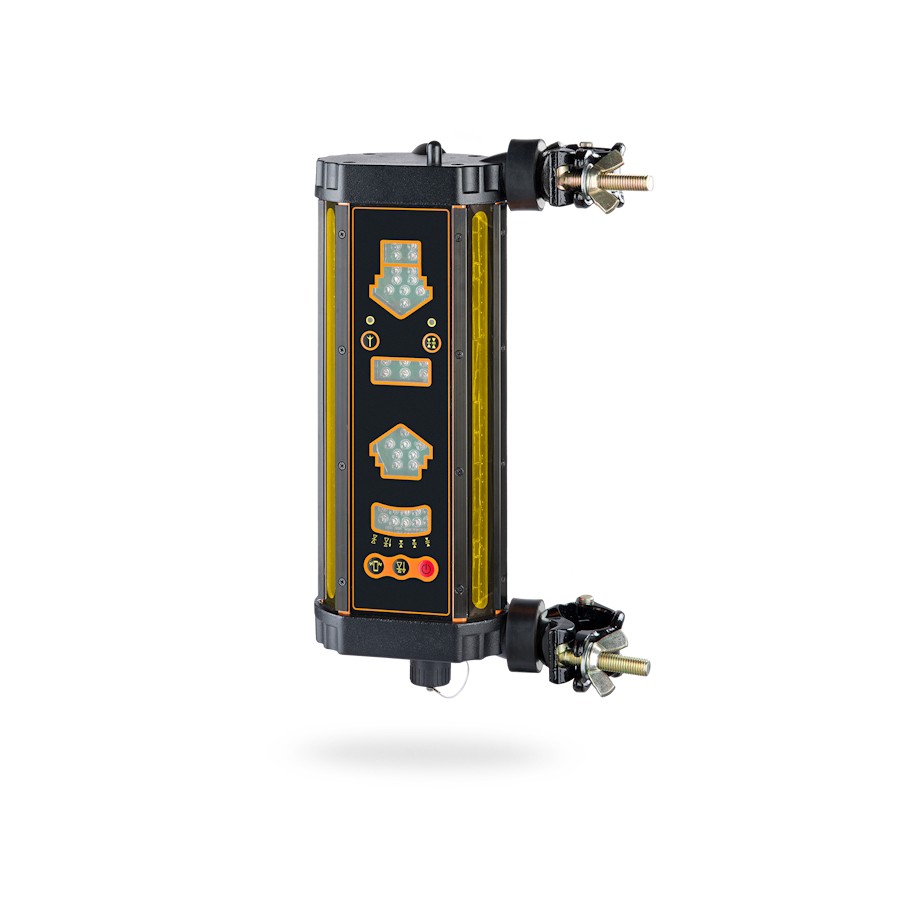

Geo-Fennel FMR 800-M/C SET Machine Control Receiver with FRD 807

GEO-FEN-264550
€1,871.16
Delivery time to be updated...

Machine control receiver used with construction machinery to increase accuracy and boost productivity. For continuous tilt and height control.

Geo-Fennel FMR

€1,871.16
Delivery time to be updated...
Quantity :
Ask a Question
No product available!

Available in 5-15 days

geo-FENNEL GmbH
  Security policy

We re using Security Certificate GeoTrust OV with 256bit encryption.

  Delivery policy

Orders places before 14:00, working days, usually are shipped at the next working day.

  Return policy

You have the right to return your purchase within 14 days (terms may apply).

  • Bulldozer: Blade tilt and height control
  • Excavator: Bucket tilt and height control
  • RF communication link to the remote display

Features

  • Length of receiving window: 27 cm
  • Will detect the beam from any brand of rotating laser (red)
  • Dust / water protected metal housing
  • Wireless remote display with suction pad and integrated magnets

Technical Specifications:

  • Accuracy fine: ± 2 mm – ± 10 mm
  • Accuracy coarse: ± 5 mm – ± 23 mm
  • Dust / water protection: IP 66
  • Weight: 3,1 kg
  • Power supply: 7,2 V NiMH 2500 mAh
  • Temperature range: -20° to +50°C
  • Extended size: 376 x 180 x 49 mm
  • Charging time: 15 h

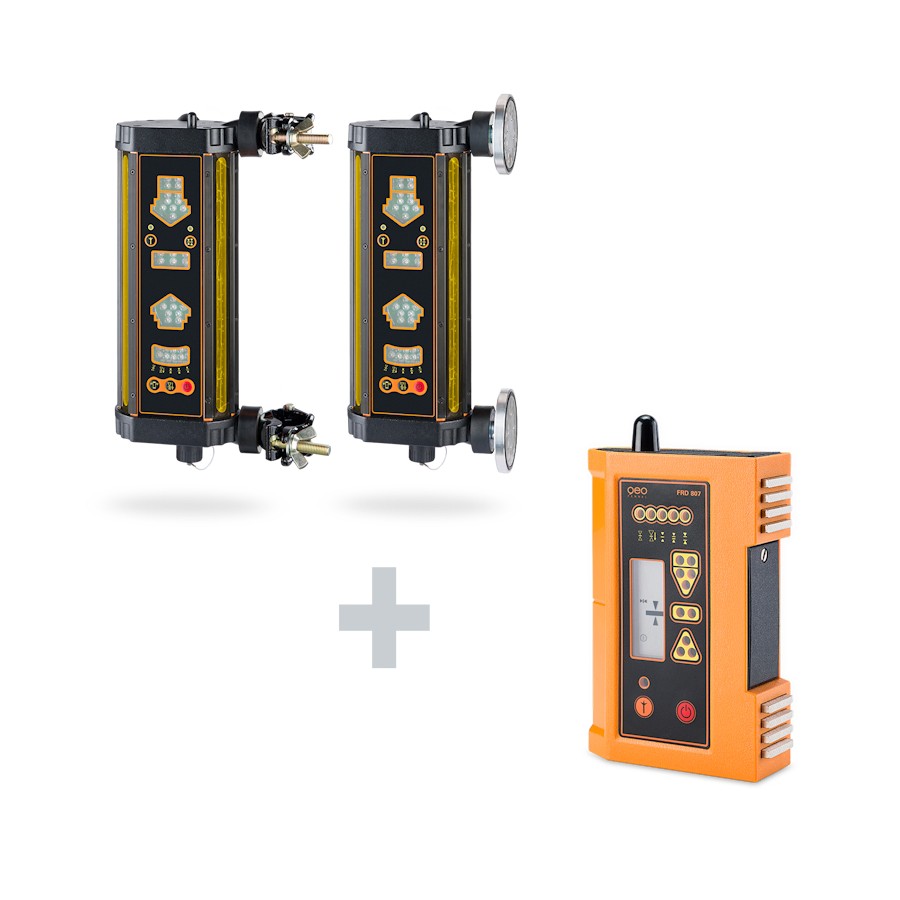

Included in scope delivery:

  • Machine receiver FMR 800-M / C with built-in rechargeable battery
  • Charger
  • Hard carrying case
  • Remote display FRD 807 with suction pad and batteries
GEO-FEN-264550

Data sheet

Dust / Water Protection
IP66
Laser Beam
Red
Receiver for use with
Machine Control
