ADA CUBE 2-360 Green Line Laser Ultimate Edition

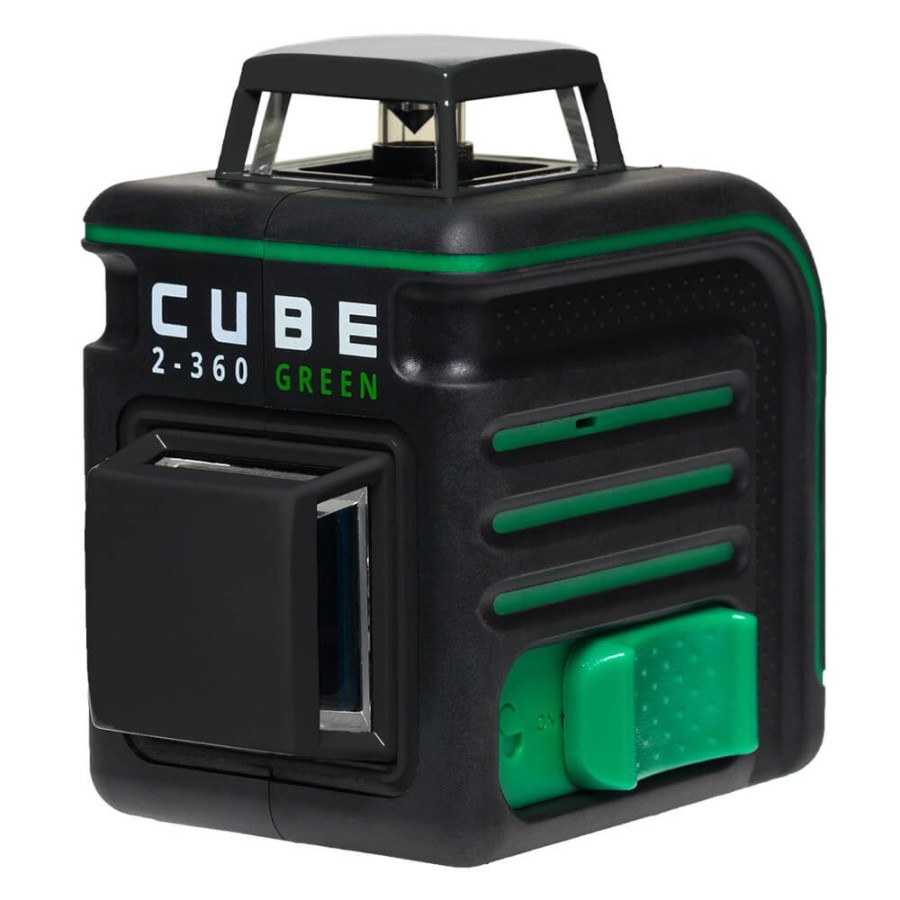

Line laser ADA CUBE 2-360 GREEN is a Line laser equipment that will be appreciated by professional and private users due to its functions. Thanks to the special emitter the instrument projects 360 degrees horizontal beam. It is ideal instrument during construction and repair works when paving tile laying or other coating, wallpapering and so on.

ADA-A00471
€329.00
€329.00 Tax incl. €329.00 Tax excl.
1-3 days
Quantity
report_problem Last items in stock

Green laser beam

Green beam has good visibility in bright light. Bright laser line helps to make fast and accurate marking without the use of additional equipment.

Convenient marking

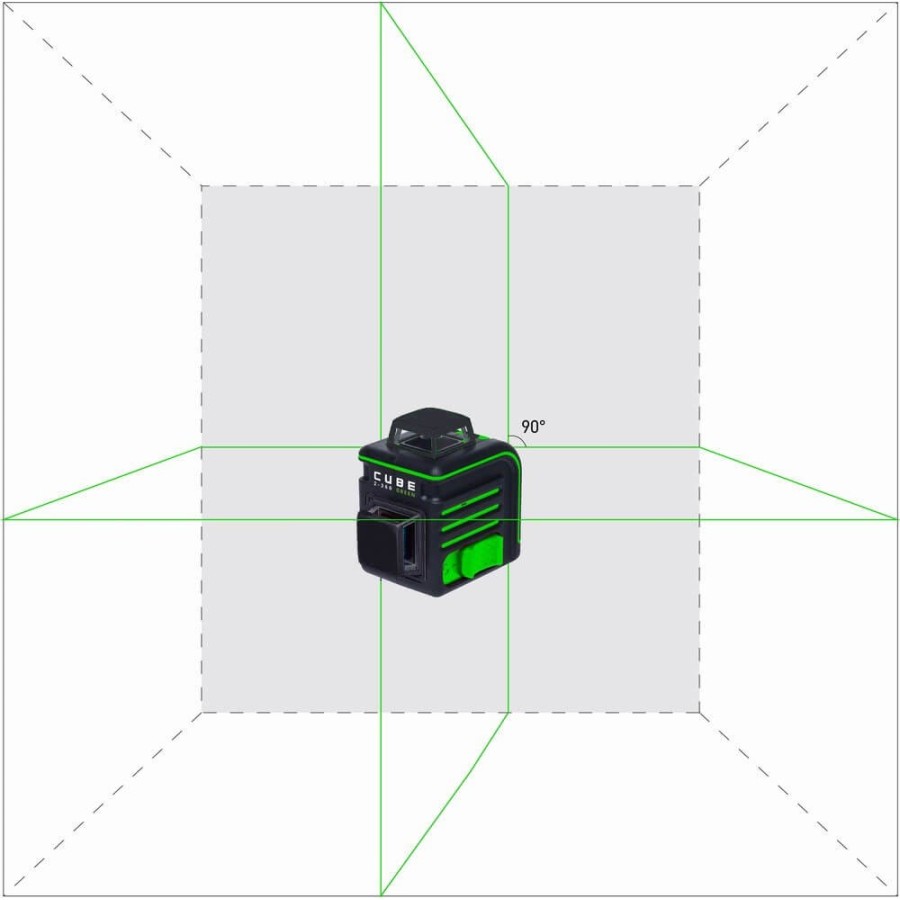

Laser level projects 360° horizontal line and 360° vertical line. There is no need to rotate the instrument when making horizontal marking. Just place ADA Cube 2-360 GREEN on the selected height. Horizontal beam will be along the perimeter. There is a 90° projection (laser cross) when switching on the vertical line. It is very convenient to shift dots, for example, from one wall to another. It is possible to switch off laser lines one-by-one. Just select the one line that you need for a work.

Accurate levelling

Auto self-leveling. ADA CUBE 2-360 GREEN differs in high accuracy – the error is just 0,3 mm/m.

Receiver mode

There is a receiver mode for outdoor operation under bright light. The range of the marking increases from 40 to 70m.

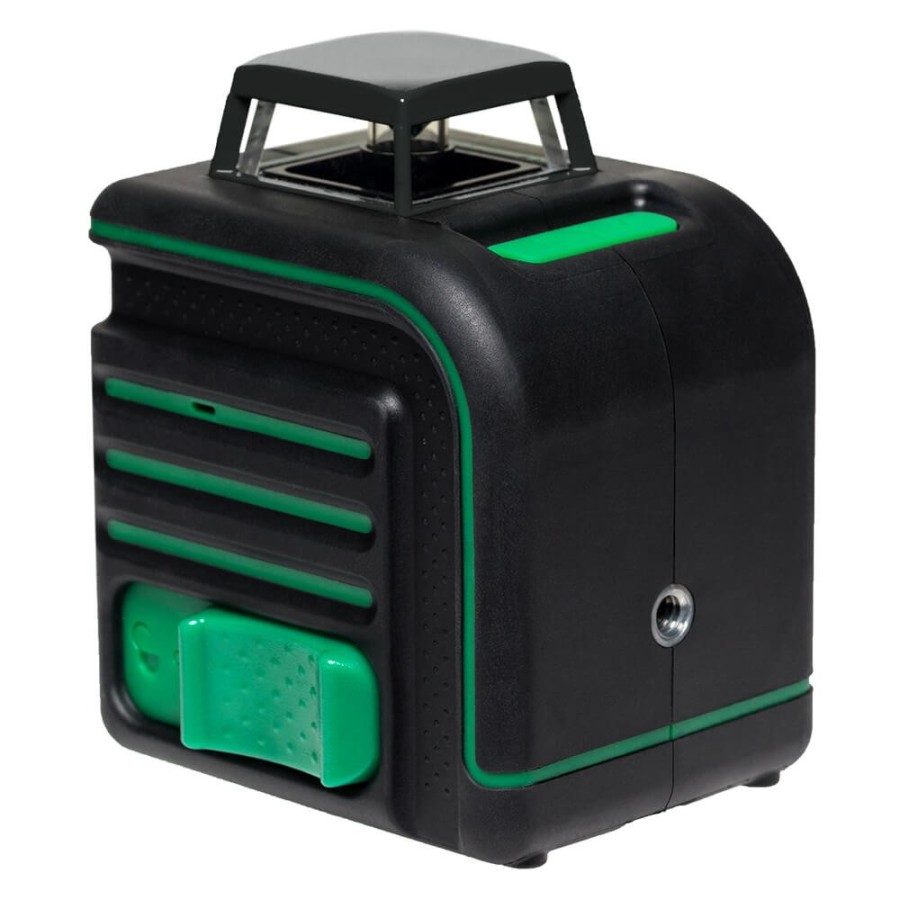

Two places of attachment

It is possible to place ADA CUBE 2-360 on the tripod or attach to the wall mount due to the thread 1/4". One thread is located on the back part of the instrument, another is on the bottom.

TILT operation

It is possible to place ADA CUBE 2-360 GREEN on the tripod or attach to the wall mount due to the thread 1/4". One thread is located on the back part of the instrument, another is on the bottom.

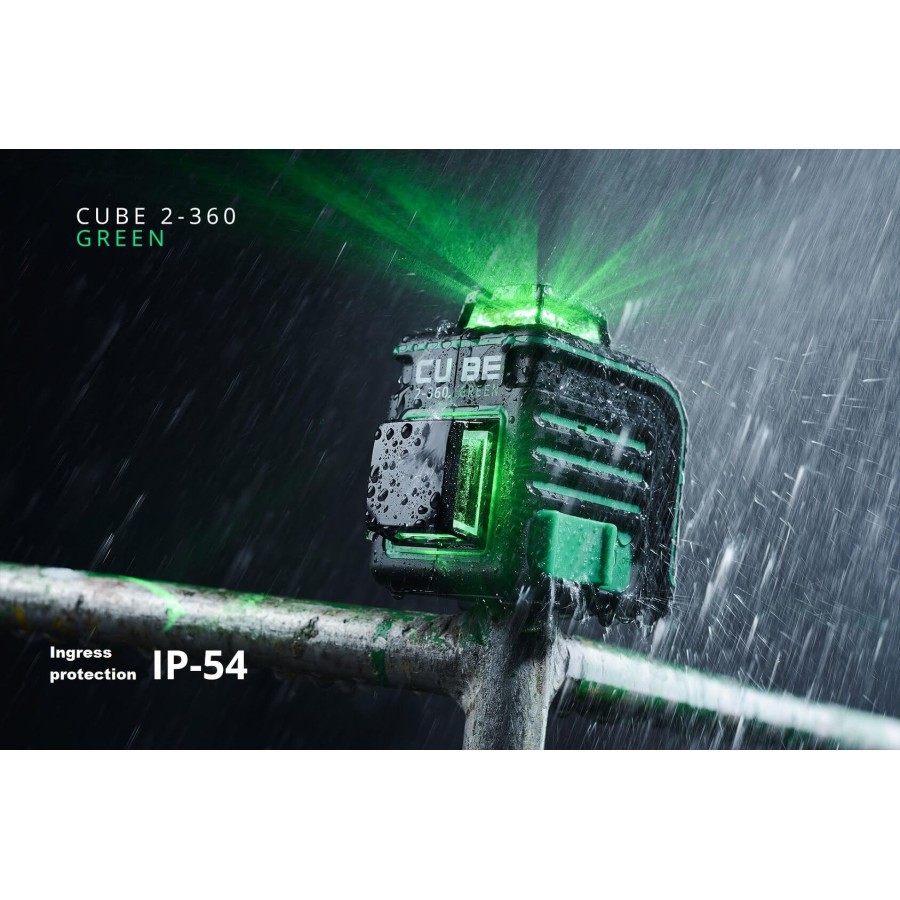

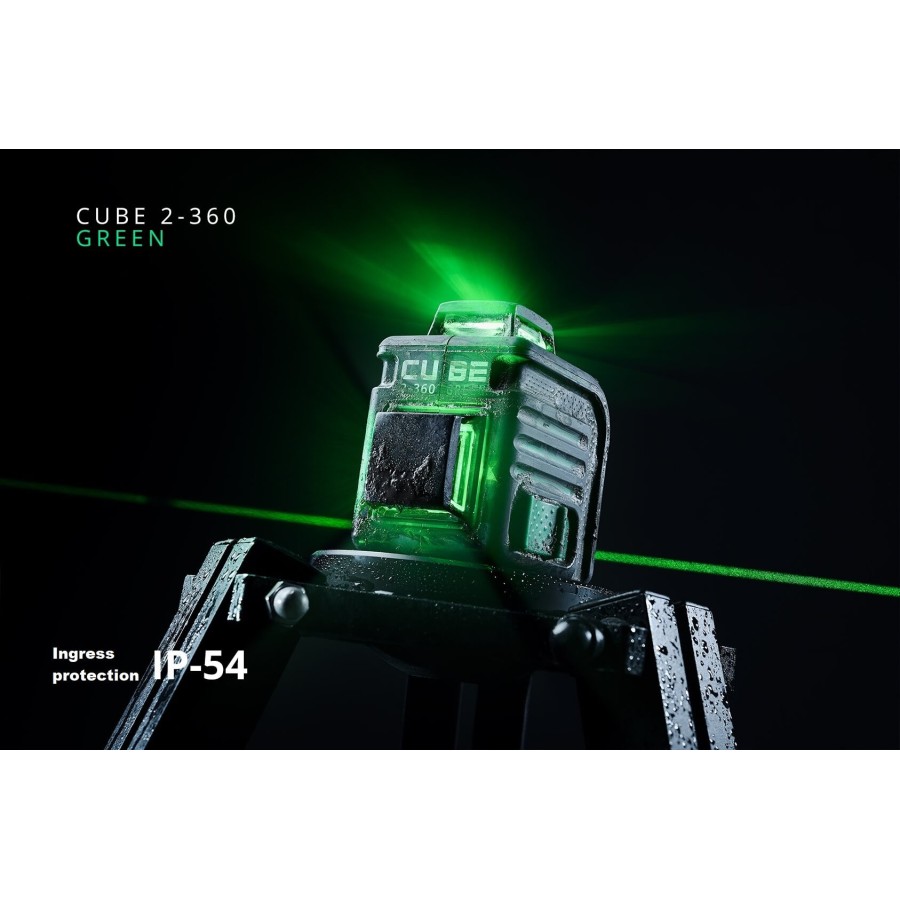

Protected housing

The whole housing of ADA CUBE 2-360 GREEN is protected from all sides. Rubber parts protect the instrument against damages during falls and hits.

Wall mounting

The metal angle bracket with magnets and 5/8″ thread allows fixing the line laser on any surface. Due to the special notch it is possible to hang the clamp on the drywall screw.

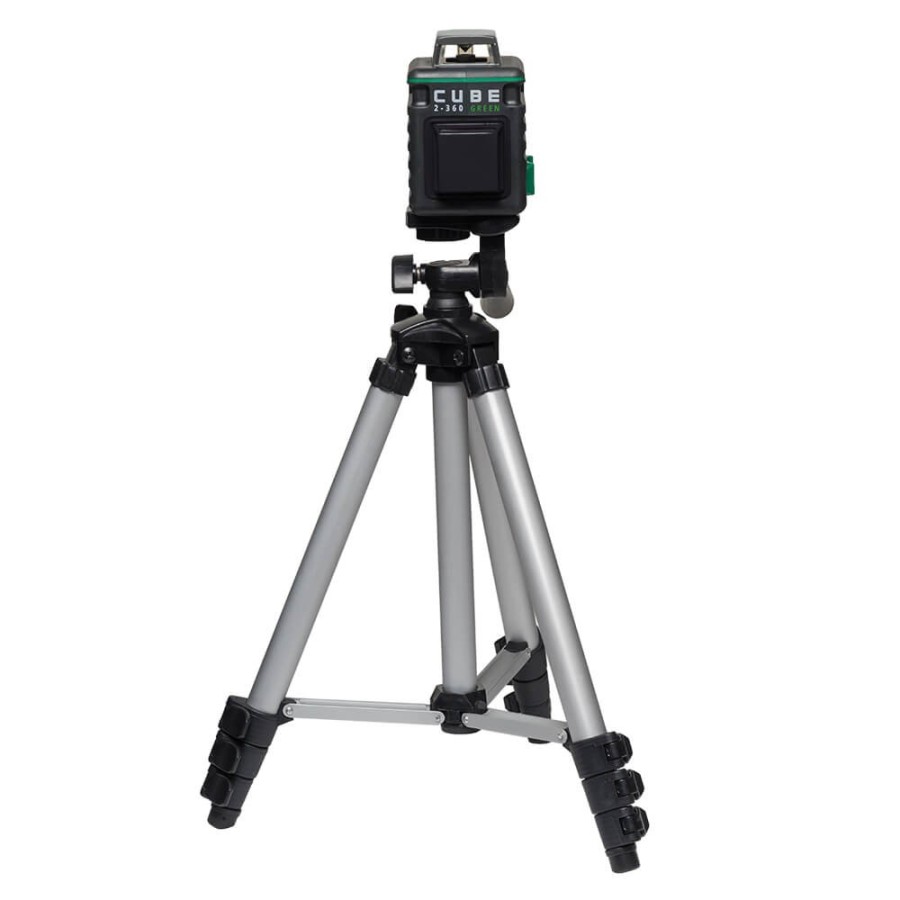

Elevating tripod

Light aluminum support with sliding column for installation at the height from 35 up to 110 cm. The elevating detail is used for smooth adjustment of the height in the range of 25 cm. The tripod provides for quick installation of the level at the required height in any place.

Laser glasses

Required for improving the laser ray visibility, especially when the laser ray is badly visible (e.g. under bright daylight).

Plastic case

Hard plastic case for convenient storage and transportation of the whole set. Everything is at hand.

Specifications:

  • Working range / working range with receiver: 40/70m
  • Accuracy: ±0,3 mm/m
  • Compensator: ±4°
  • Dust/water protection: IP54
  • Laser class: 2; 532 nm, < 1 mW
  • Power supply: 3 х АА/1,5V
  • Tripod thread: 1/4
  • Laser projection: 2 line of 360°
  • Dimensions: 100х100х65 mm
  • Weight: 0,39kg

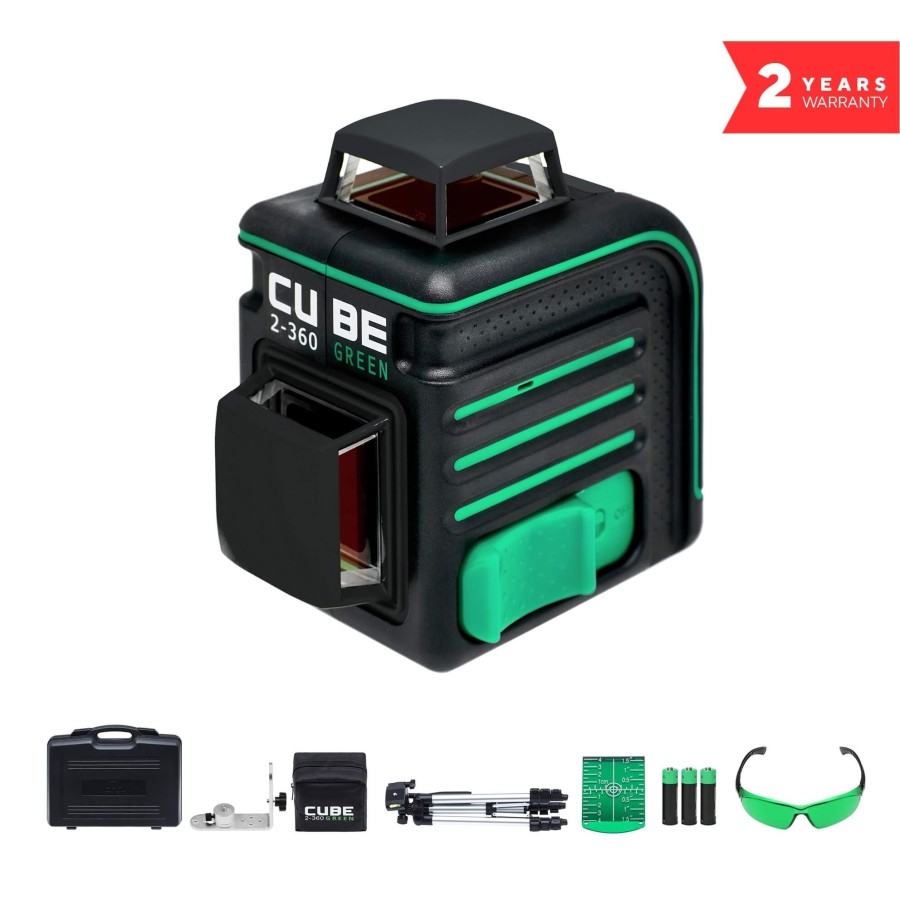

Includes:

  • Laser level
  • Bag
  • Magnetic mount
  • Tripod
  • Magnetic target
  • Laser glasses
  • Professional case
ADA-A00471

Data sheet

Range
40 m
Warranty
2 years
Self-Levelling Range
± 4°
Power supply
3 x AA
Laser Beam
Green Beam
Laser Class
2
Self-Levelling
Yes
Accuracy (mm to 10 meters)
± 3
Dust / Water Protection
IP54
Laser Type
Cross Line Lasers
