Geo-Fennel FLG 80-GREEN TRACKING

GEO-FEN-583500
€911.40
Delivery time to be updated...

Selection Pro, Green multi-line laser with automatic axis alignment

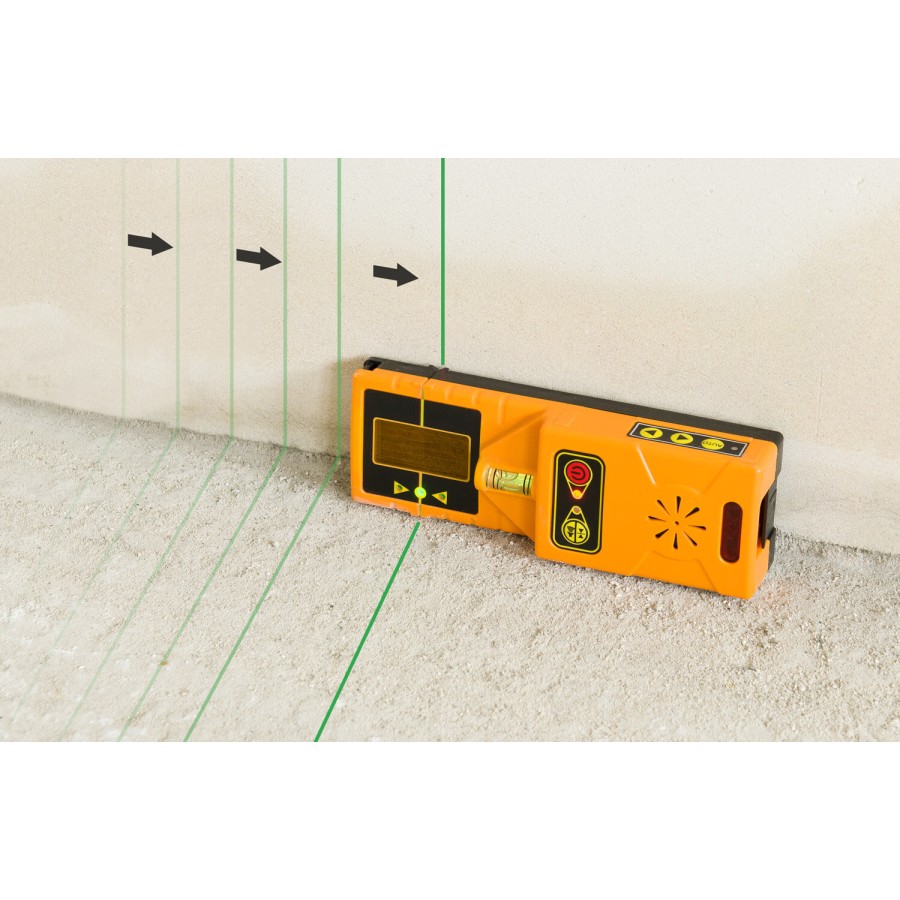

GREEN laser and TRACKING function - this is unique when compared to all other products in its category. The vertical laser line automatically aligns with the on-grade position of the receiver. This self-alignment of the instrument eliminates arduous manual alignment. Long tracking range up to 50 m with centering accuracy of ± 1 mm / 10 m. Latest green laser technology with fine and clear line visibility. 4 vertical lines at 90° to each other, 130° horizontal line, plumb up, cross, plumb down beam - can be switched on/off in groups.

Geo-Fennel FLG

€911.40
Delivery time to be updated...
Quantity :
Ask a Question
No product available!

Κατόπιν Παραγγελίας

geo-FENNEL GmbH - Όλα τα προϊόντα
  Security policy

We re using Security Certificate GeoTrust OV with 256bit encryption.

  Delivery policy

Orders places before 14:00, working days, usually are shipped at the next working day.

  Return policy

You have the right to return your purchase within 14 days (terms may apply).

Features:

  • Green laser
  • 4 vertical lines at 90° to each other
  • 130° horizontal line
  • Laser cross to the ceiling
  • Plumb down beam
  • Tracking function up to 50 m
  • 360° horizontal orientation in either motorized or manual mode
  • Slow motion screw for fine adjustment
  • Use with receiver to extend working range
  • Self-levelling function can be switched off
  • Audible and visible alarm when out of level

Technical Specifications:

  • Self-levelling range: ± 3°
  • Accuracy: ± 2 mm / 10 m
  • Laser diode: green
  • Working range without receiver: 40 m (radius)
  • Working range with receiver: 80 m (radius)
  • Dust / water protection: IP 54
  • Laser class: 2
  • Operating time: 8 h
  • Power supply: Li-Ion, Alkaline
  • Temperature range: -10°C to +45°C

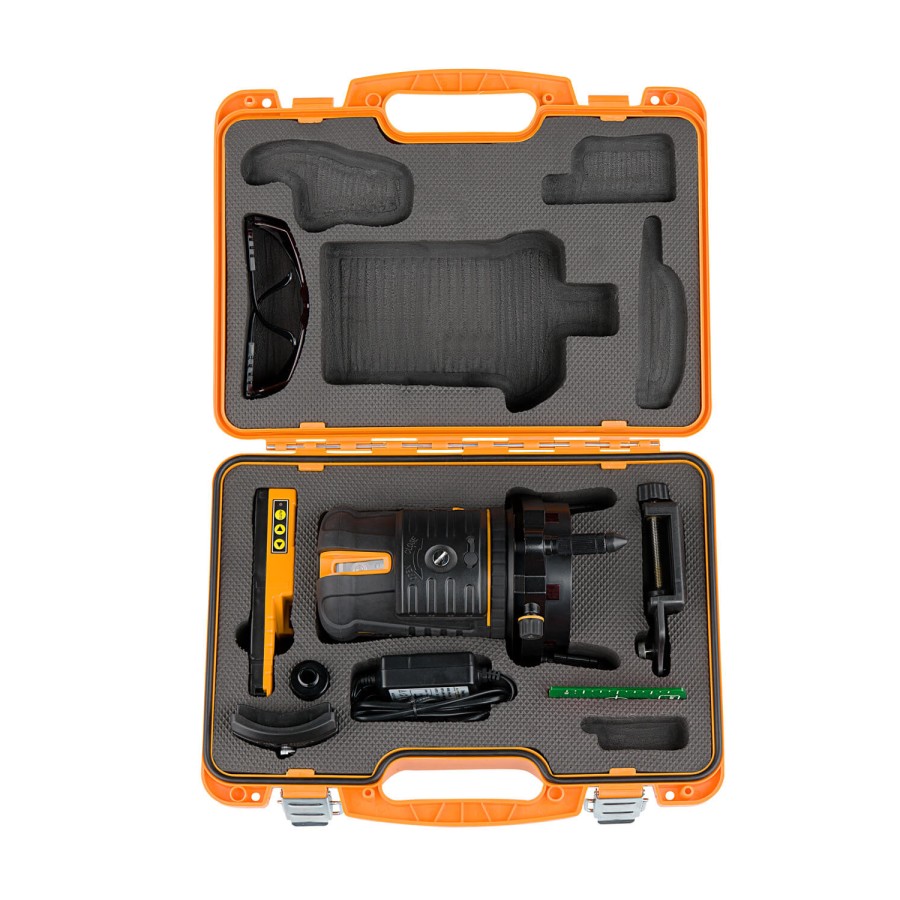

Supplied with:

  • Li-Ion battery
  • Charger
  • Compartment for alkine batteries
  • Receiver FR 57-TR
  • Floor tripod
  • Adapter for tripod connection
  • Magnetic target
  • Laser glasses
  • Container
GEO-FEN-583500

Data sheet

Range
40 m
Warranty
2 + 1 years
Self-Levelling Range
± 3°
Power supply
Li-Ion / 4 X AA
Working Temperature
-10°C~45°C
Laser Beam
Green Beam
Laser Class
2
Number of Vertical Lines
4
Self-Levelling
Yes/Manual
Accuracy (mm to 10 meters)
± 2
Dust / Water Protection
IP54
Laser Type
Multi-Line Lasers
