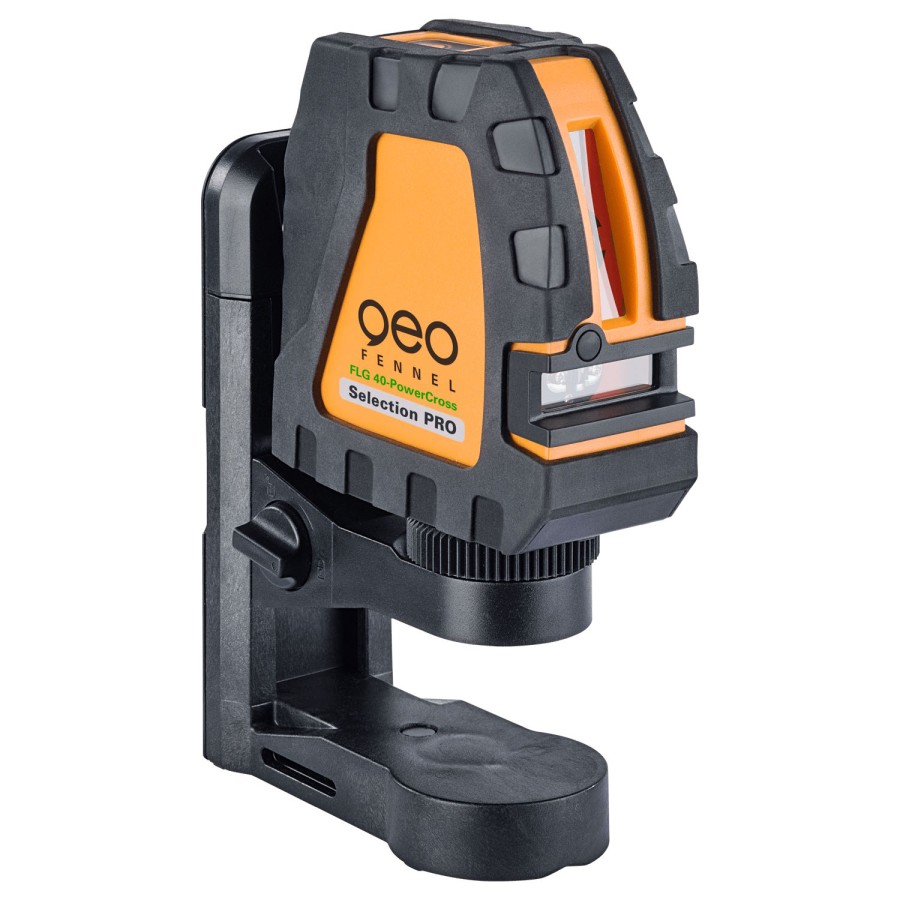

Geo-Fennel FLG 40-PowerCross Plus GREEN SP

FLG 40-PowerCross Plus GREEN SP is a Selection PRO product with special features

GEO-FEN-541560
€150.00
€150.00 Tax incl. €150.00 Tax excl.
Delivery time to be updated...
Quantity
check Κατόπιν Παραγγελίας

Overview:

  • Outstanding visibility of the laser lines
  • Very long vertical line with 150° fan angle (beyond zenith)
  • Pulse-function for use with receiver (optional)
  • Self-levelling function can be switched off for manual use
  • Extremely rugged design for rough use at construction site: product withstands drop up to 1m

Features:

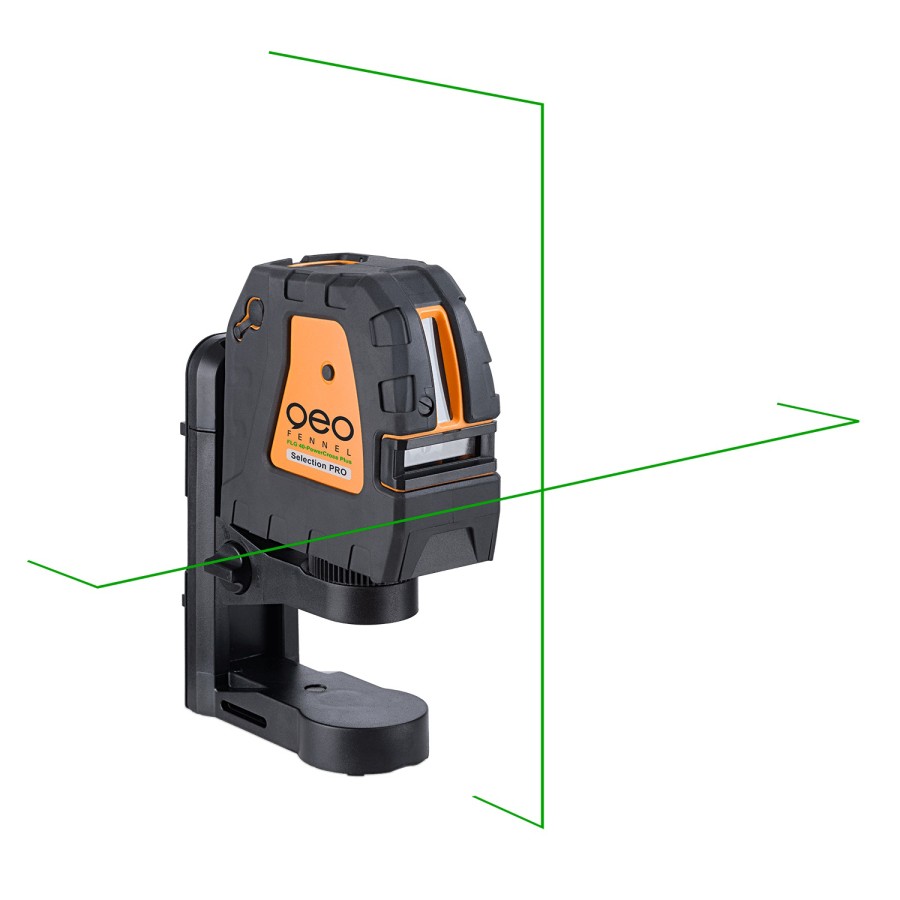

  • 1 Laser cross
  • Laser lines switchable separately
  • TILT function for manual use
  • Visual alarm when out of level
  • Use with receiver FR 75-MM / FR 55 / 55-M (optional)
  • Multi-functional mount
  1. height adjustable
  2. for wall-hanging with screw
  3. strap attachement
  4. strong magnet on back side
  • for tripod fi xing with 5/8" or 1/4" thread

Specifications:

  • Self-levelling range: ± 3°
  • Accuracy: ± 3 mm / 10 m
  • Laser diode: green
  • Working range without receiver: 40 m (radius)
  • Working range with receiver: 100 m (radius)
  • Fan angle horizontal: 135°
  • Fan angle vertical: 150°
  • Dust / water protection: IP 54
  • Laser class: 2
  • Operating time: 9 h
  • Power supply: 4 x AA Alkaline
  • Temperature range: -10°C to +45°C
  • Weight (instrument with battery): 0,4 kg

Included in scope delivery:

  • Multi-functional mount
  • 4 x AA Alkaline battery
  • Padded bag
GEO-FEN-541560

Data sheet

Range
40 m
Warranty
2 + 1 years
Power supply
4 x AA
Laser Beam
Green Beam
Laser Class
2
Number of Vertical Lines
1
Self-Levelling
Yes
Accuracy (mm to 10 meters)
± 3
Dust / Water Protection
IP54
Laser Type
Cross Line Lasers
