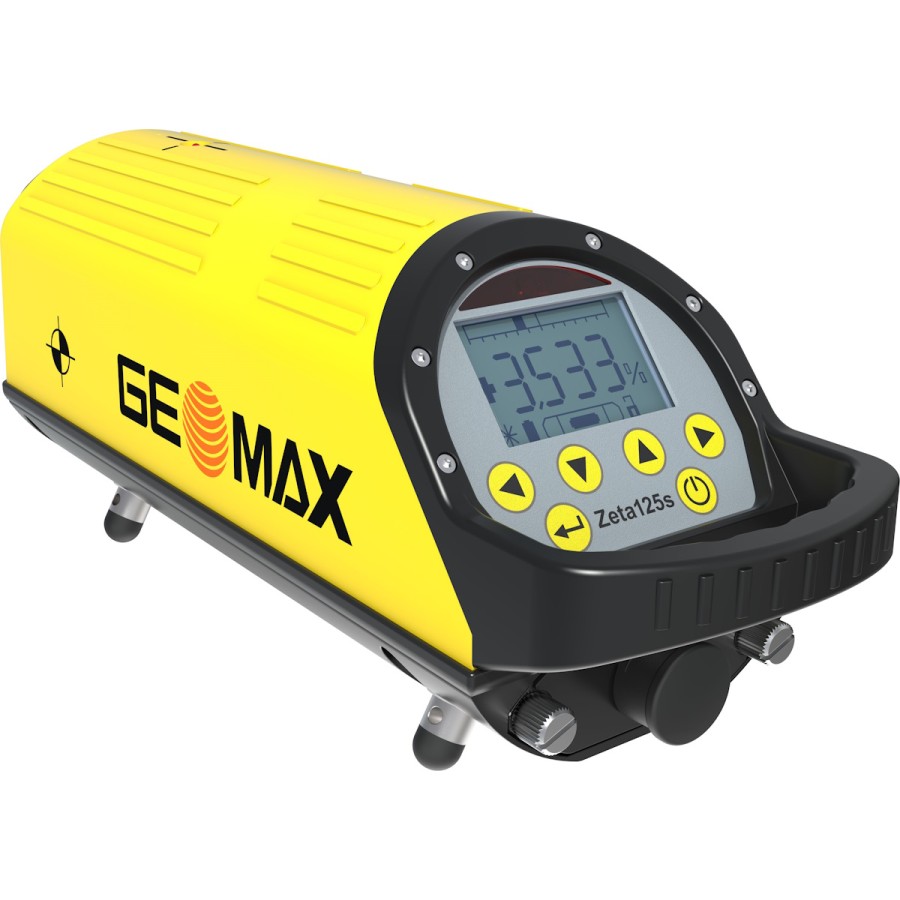

The GeoMax Zeta125 Series Pipe Laser provides ±10 arc second accuracy which boasts great functionality and versatile configuration, ideal for control and implementation of gradients and drainage systems. It offers maximum productivity with its fast self-leveling laser that can reach up to 900 feet and inclination of -15% to +45%.

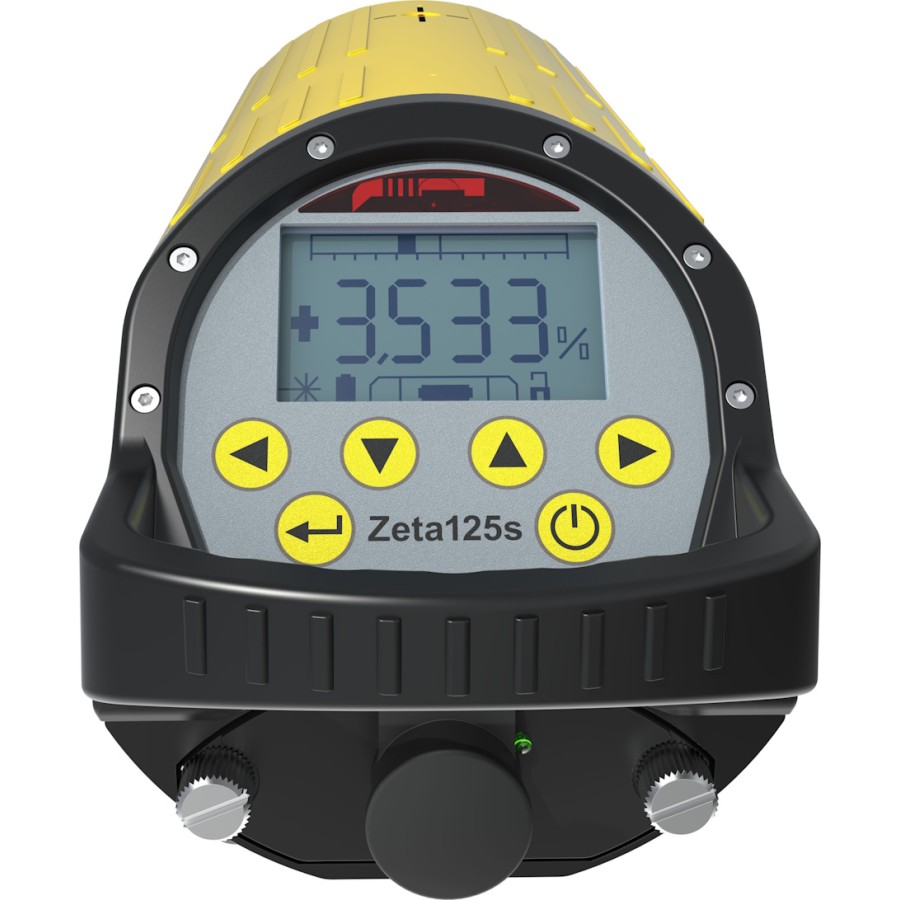

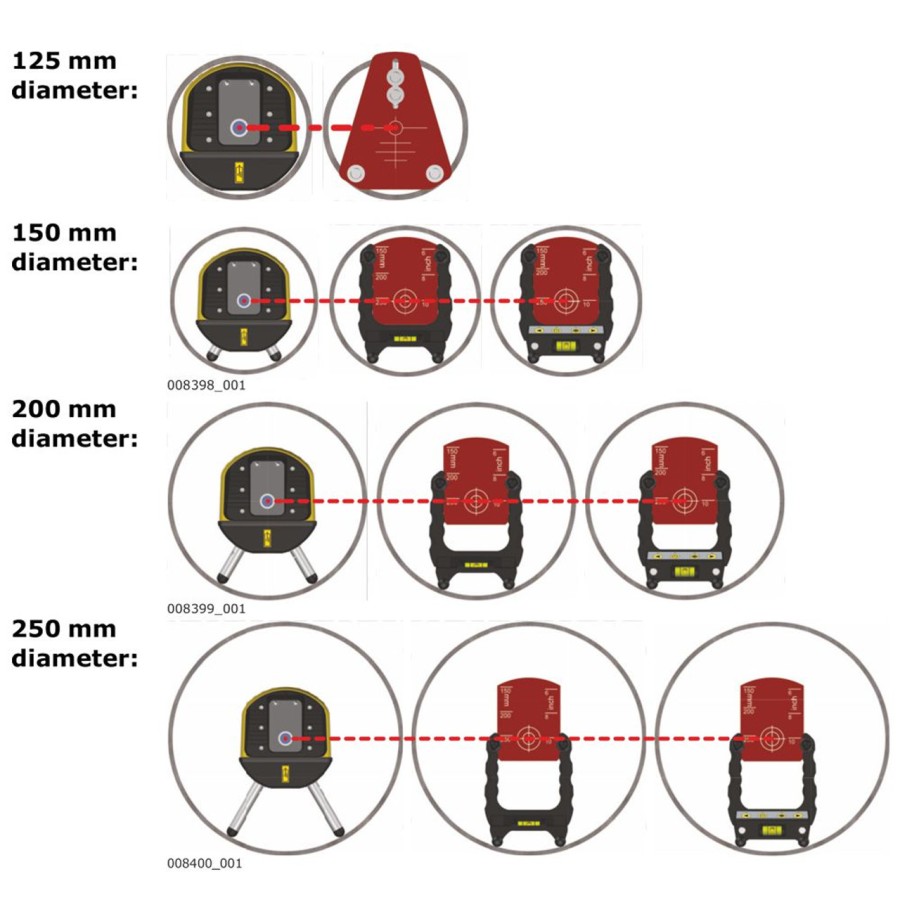

This pipe laser is built with an easy to read LCD display which is perfectly backlit, functional even in dark condition. It fits in tight bends and narrow manholes and its slim build make it suitable for pipes with around five inches diameter. With an alignment function, surveyors can control the laser in the direction of the target up to 600 feet away using the included remote control.
With an IP68 rating, the Zeta125 series is made with extremely robust construction, perfect in rough environments. It also has an optional feature for vertical plane rotation, auto-target system, and cross-axis compensation to accommodate all work preference. Using a Li-Ion battery pack, this pipe laser lasts up to 40 hours and is adaptable with 5/8-11 tripod threading.
Maximum productivity
- Fast self-levelling
- Automatic target alignment
- Cross axis compensation
Maximum robustness
- IP68 submerge proof
- Full metal housing
- Built to last
Maximum flexibility in applications
- Wide range of accessories
- Long distance remote control
- Safe and versatile charging options
Specifications:
- Self-levelling range: -15% to +45%
- Grade range: -10% to +40%
- Protection: IP68
- Power supply: Rechargeable lithium ion battery pack 110/230V AC converter (charge and run simultaneously); 12V power cord
- Battery life: 40h Li-Ion battery
- Thread mounting: 5/8”
- Operating temperature: +50°C to -20°C (122°F to -4°F)
- Size and weight: 305 (12”) x 105 (4.1”) x 113 mm (4.4”); 2.07 kg
- Operating range: < 200 m (656’)
- Detection angle: 20° (12m / 40’ @30m / 100’)
- Rotation speed: 1250 rpm
Remote Control:
- Operating range 190 m (600’) front through the pipe; 7.6 m (25’) from rear
- Batteries 3 AA alkaline
- Dimensions 119 x 60 x 30 mm (4.7” x 2.35” x 1.2”)

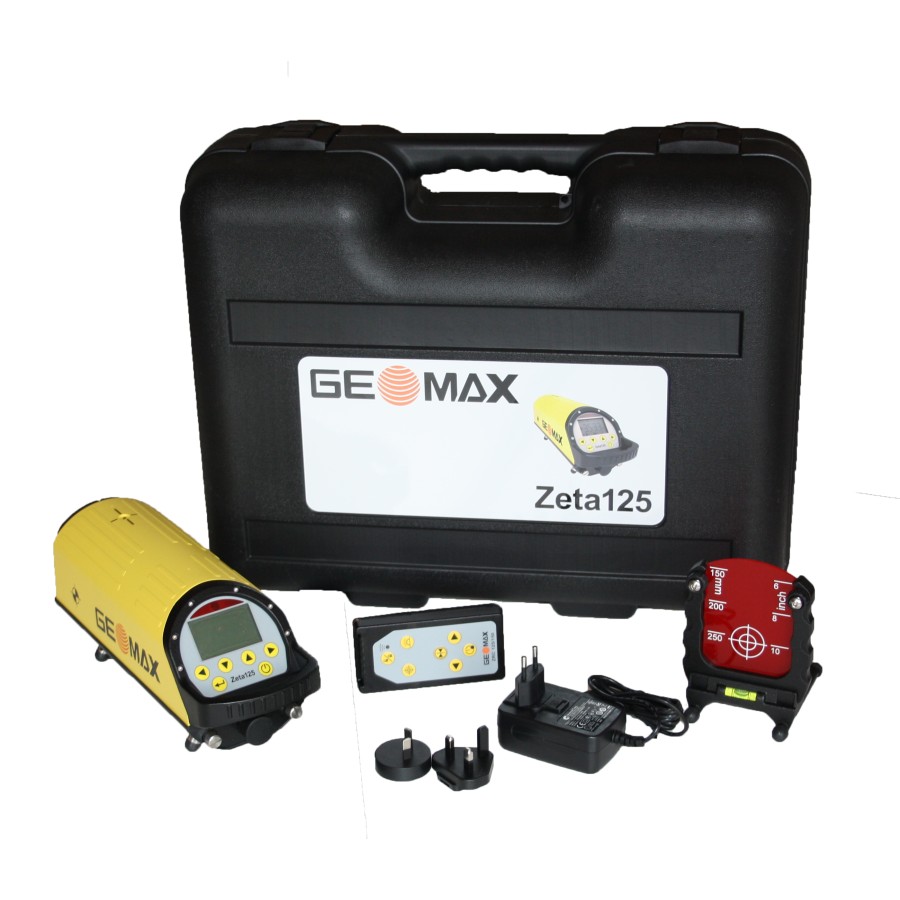

Includes:
- GeoMax Zeta125 Series Pipe Laser
- Remote Control
- Leg Set, 150mm
- Carrying Case
- Li-ion Battery
- International Charger
- User Manual
- 5-Year Manufacturer's Warranty

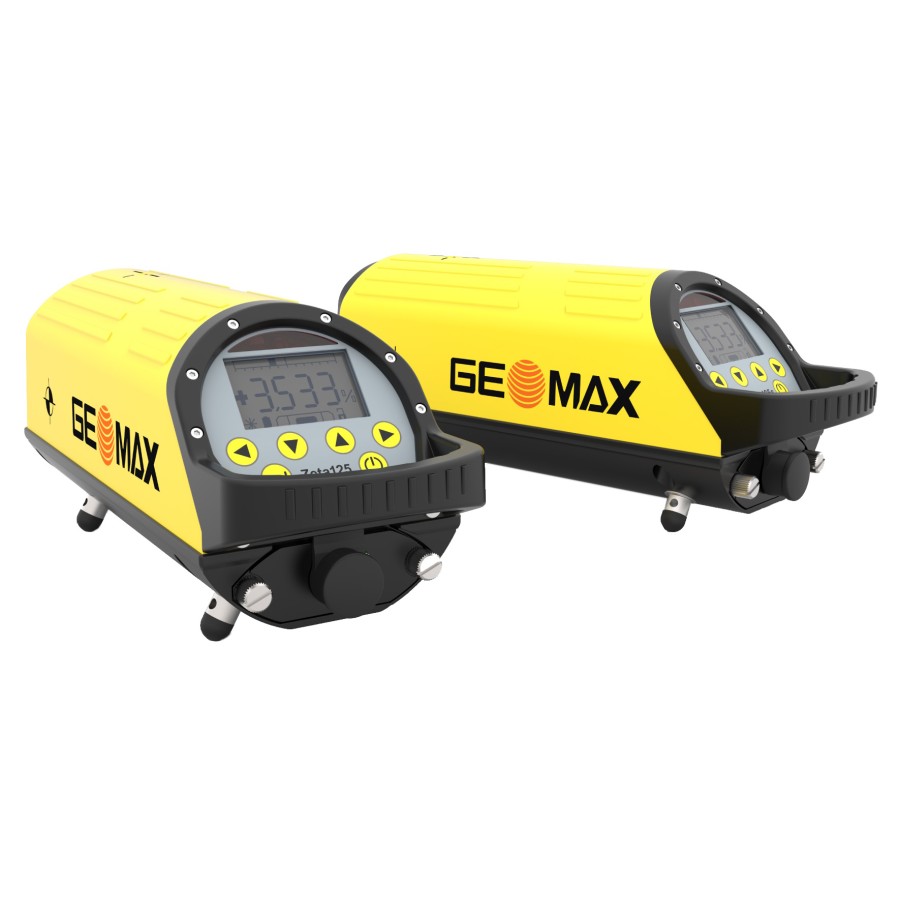

Models of the GeoMax Zeta125 Series:
- Zeta125 Red beam pipe laser, Laser class 2
- Zeta125 Red beam pipe laser, Laser class 3R
- Zeta125S Red beam pipe laser with active cross axis compensation
- Zeta125G Green beam pipe laser, Laser class 2M
- Zeta125G Green beam pipe laser, Laser class 3R
- Zeta125SG Green beam pipe laser with active cross axis compensation
