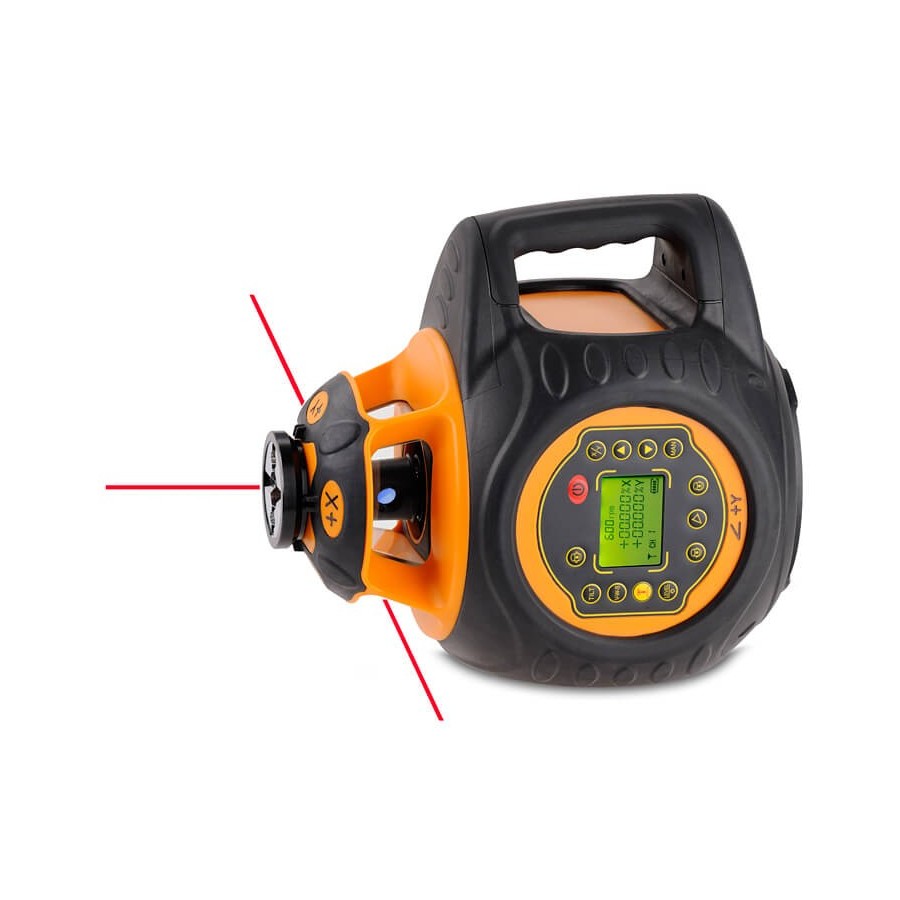

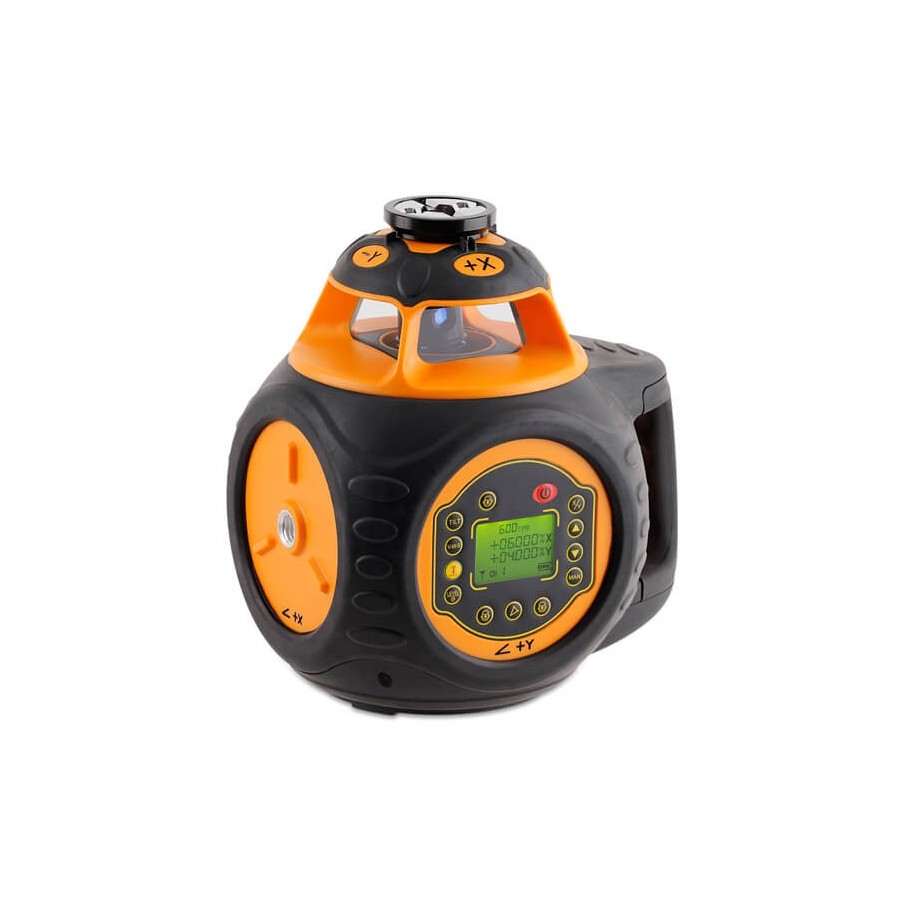

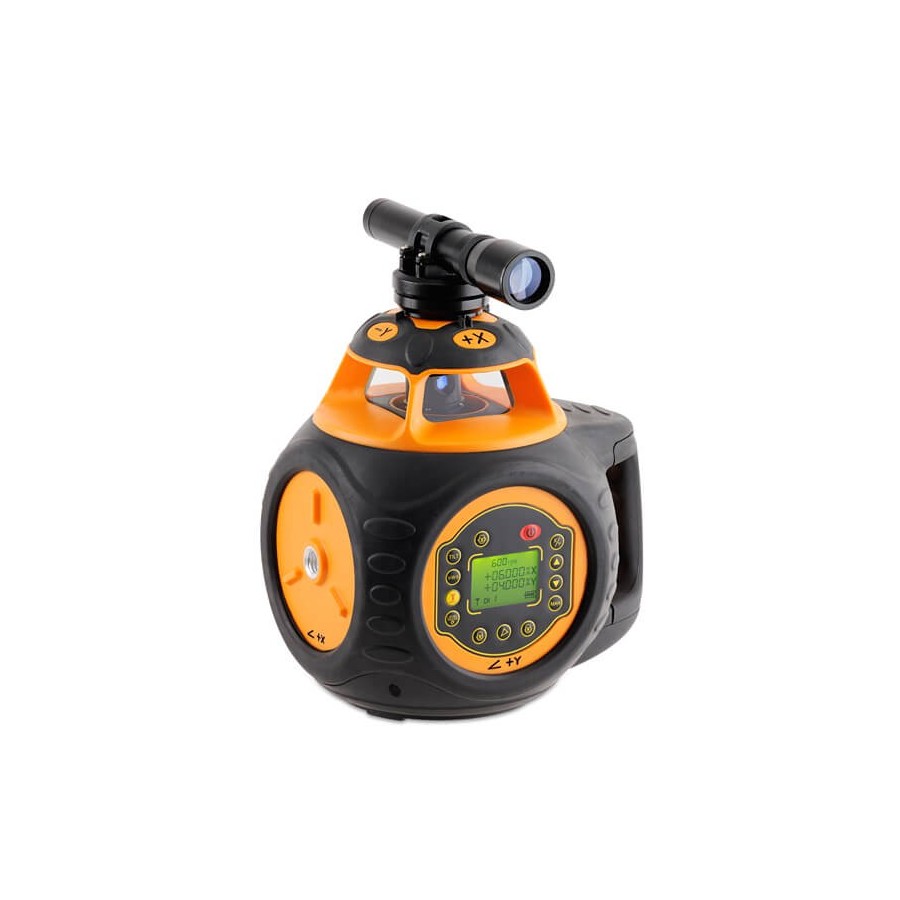

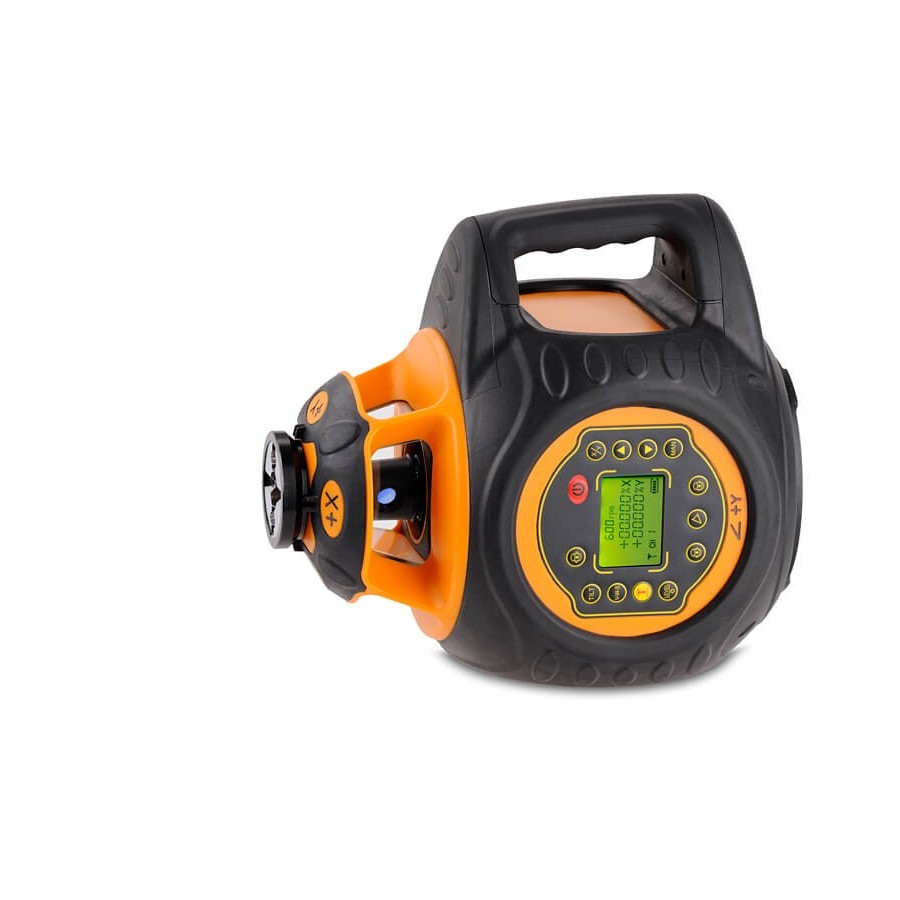

Geo-Fennel FL 505HV-G Rotating Laser with Receiver FR 80-MM

Overview:

• Fully automatic self-levelling in horizontal, vertical and grade
• Slope functions horizontal: Digital grade setting of X and Y axis up to ±10 % Manual slope setting of X and Y axis
• Slope functions vertical: Direction of X axis can be set up to ±10 % with Y axis self-levelled Direction of X and Z axis can be set manually
• Automatic TILT function
• VWS function (Vibration-Wind-Security) Rotation will not be stopped due to light ground and wind vibrations (combined with TILT function)
• Fully functional 9-channel 2-way RF remote control
• Li-Ion battery technology

Features:

• Dual Axis Laser
• Horizontal and vertical
• Digital grade adjustment
• Monitored grade
• TILT function
• VWS function
• 90° beam to zenith
• Illuminated display
• 2 way RF remote control
• Manual function
• 4-step scanning function
• Operation with rechargeable Li-Ion or alkaline batteries
• Dust / water protection IP 66

Technical Specifications:

• Grade: digital
• Self-levelling range: ± 8°
• Laser diode: red
• Accuracy vertical: ± 1,0 mm / 10 m
• Accuracy horizontal: ± 0,5 mm / 10 m
• Working range remote control: 150 m
• Power supply: intelligent / Li-Ion (Alkaline batteries optional)
• X and Y-Axis: ∑ ± 14 %
• Horizontal slope setting x-Axis: ± 10.000%
• Horizontal slope setting Y-Axis: ± 10.000%
• Vertical slope setting X axis: ± 10,000 %
• Remote control channels: 9
• Vertical slope setting Y(Z) axis: horizontal self-levelled
• Weight (instrument only): 3,85 kg
• Scanning range: 0°, 10°, 45°, 90°, 180°
• Rotating speed rpm: 300, 600, 1100
• Rotating w/o receiver Ø: Ø 60 m
• Scanning w/o receiver : 60 m (radius)
• Dust / water protection: IP 66
• Temperature range: -10°C to +50°C
• Operating time: 40 h
• Laser class: 2

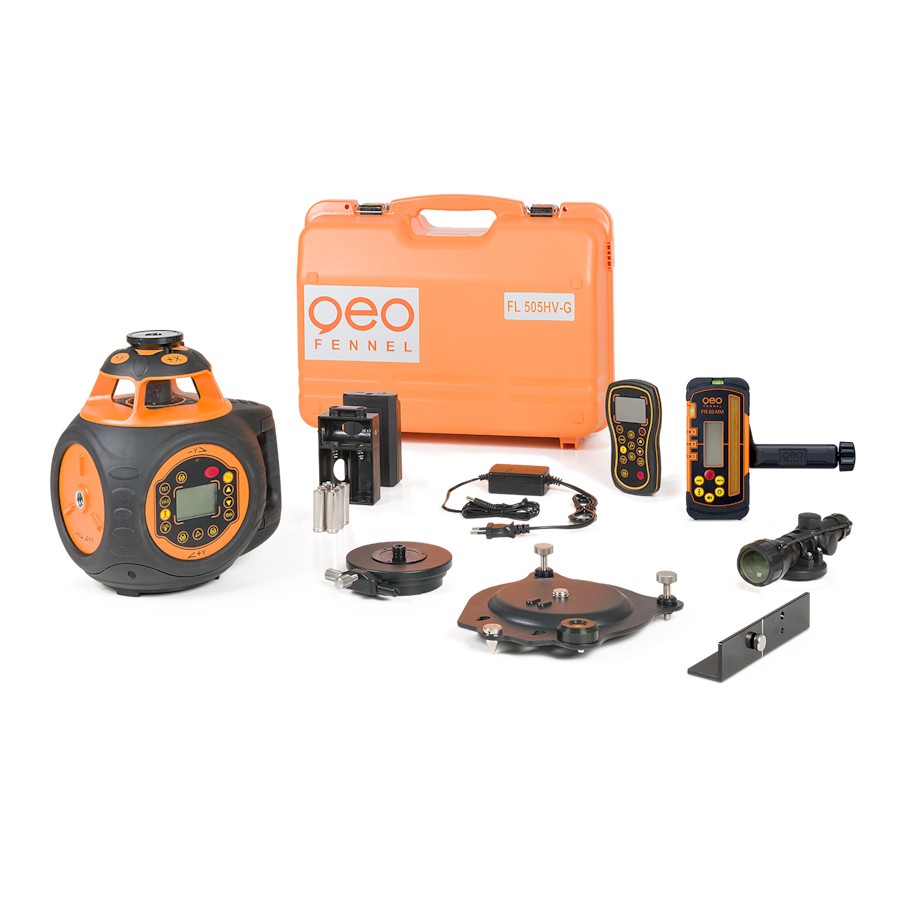

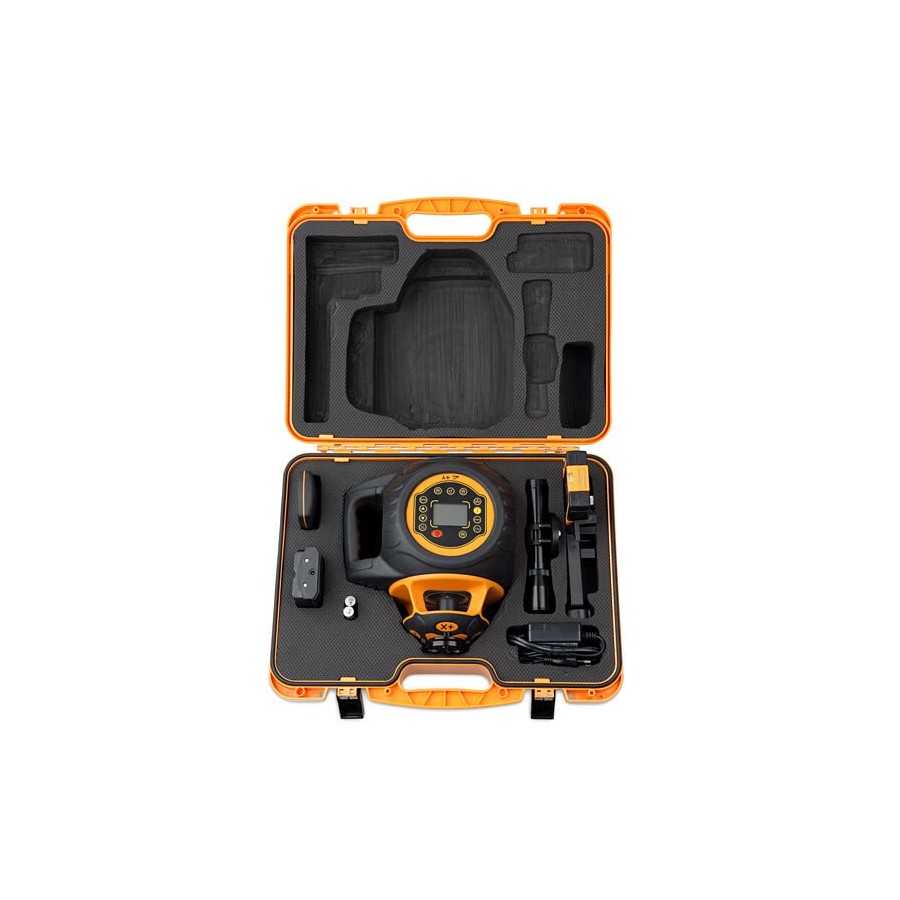

Included in scope delivery:

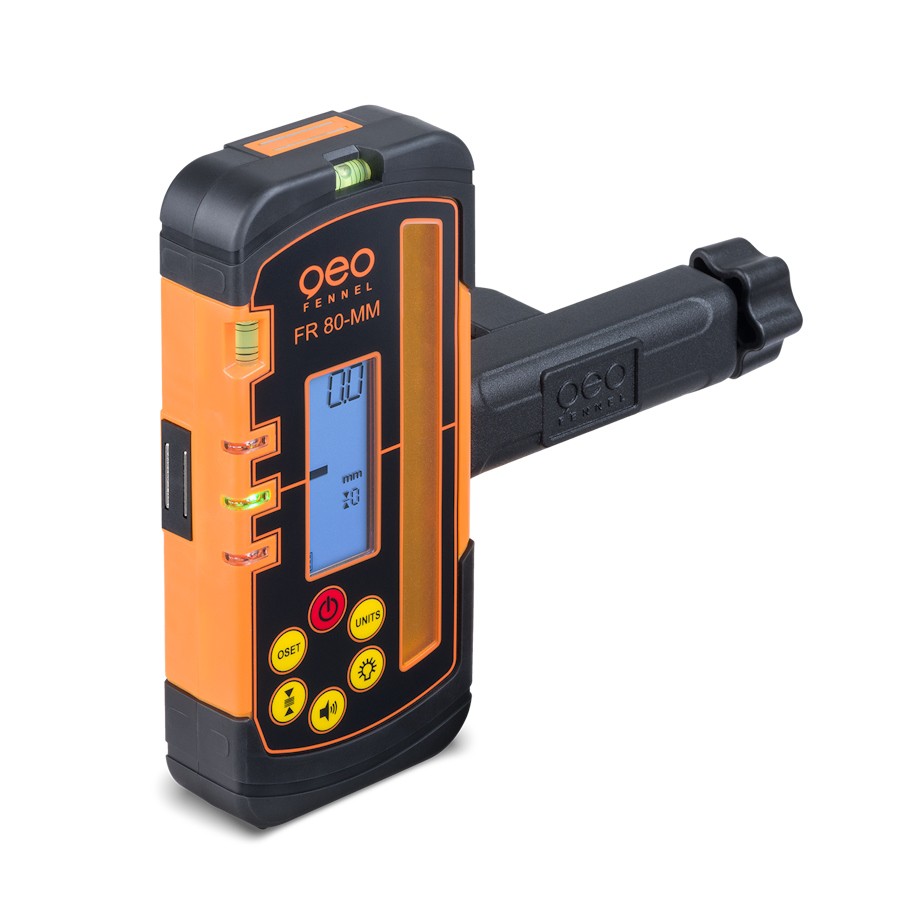

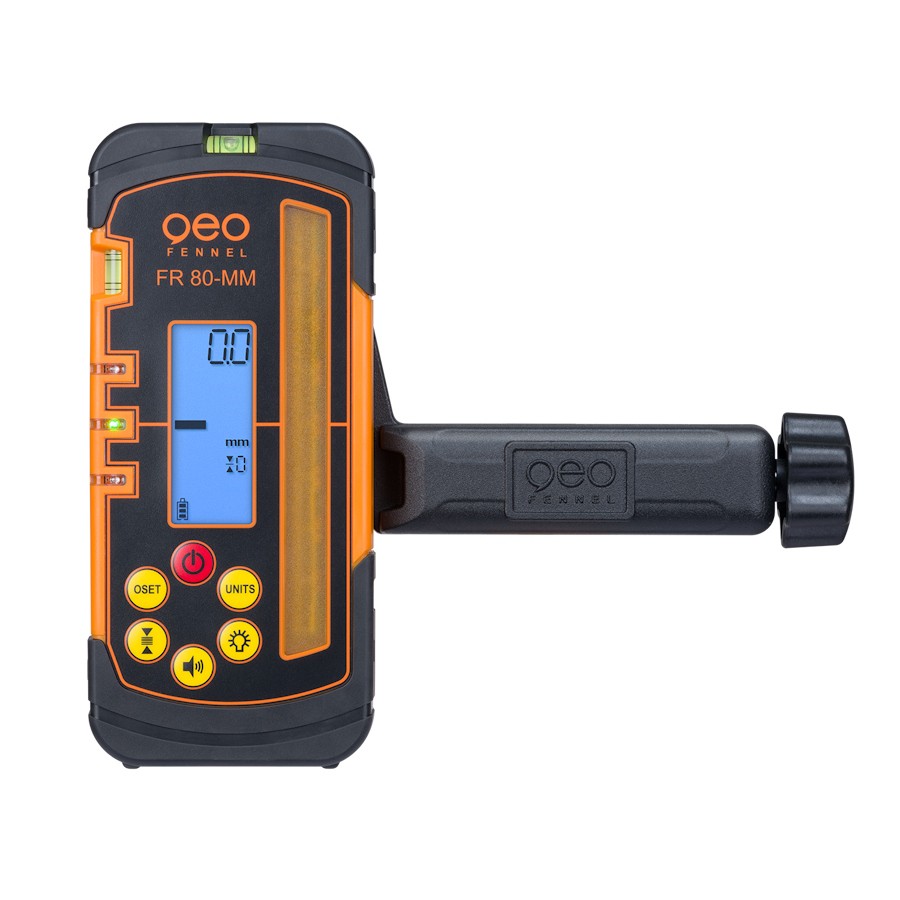

• Receiver FR 80-MM with clamp
• 2-Way RF Remote control
• Li-Ion battery & charger
• Vertical mount
• Telescope
• 360° horizontal fine adjustment bracket
• Container
