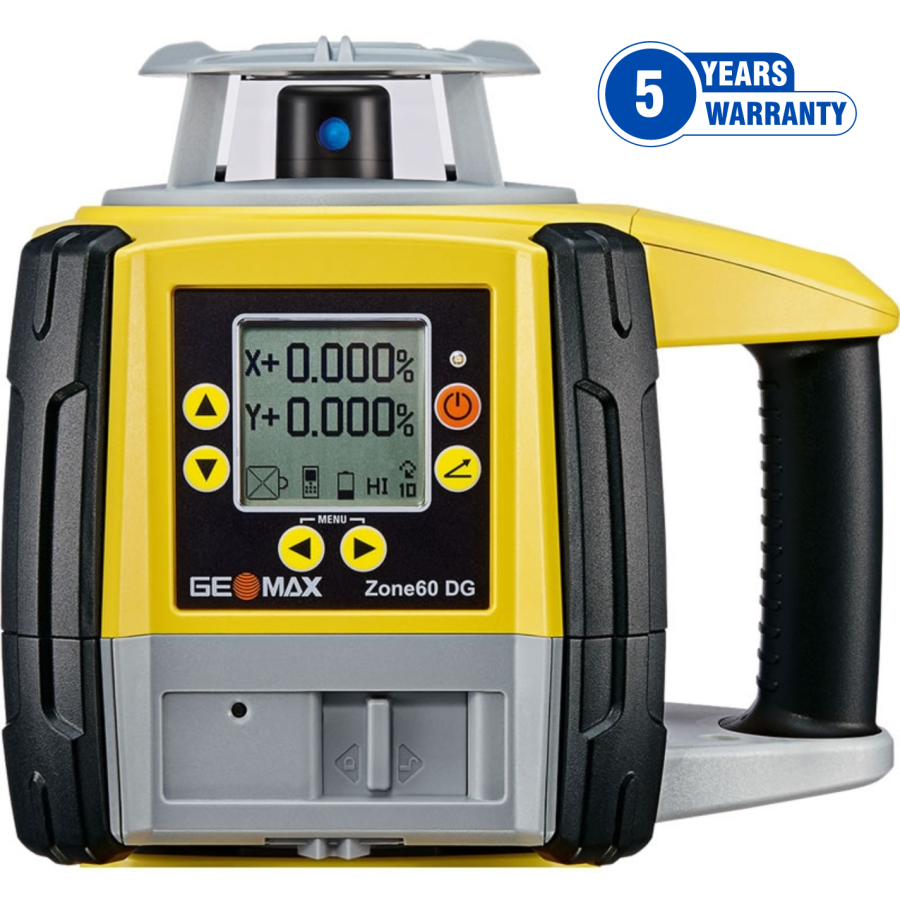

GeoMax Zone60 DG Rotaty Laser
The GeoMax Zone60 DG Fully-Automatic Dual Grade Laser is a fully-automatic device designed for construction workers who need the dependability of a professional grade laser on a daily basis. With a working range of up to 3,000 feet, the Zone60 DG also boasts an accuracy of ±1/16-inch at 100 feet. The Zone60 DG self-levels within ±5 degrees in both horizontal and vertical direction.
Highlights
- Range up to 3,000 feet with laser receiver Ø
- Dual grade to ±15%
- Self-leveling within ±5 degrees
- Accuracy of ±1/16 inch at 100 feet
- Adjustable rotation speeds: 300 & 600 RPM
- Battery life up to 40 hours
- IP67 dustproof and water resistant
We re using Security Certificate GeoTrust OV with 256bit encryption.
Orders places before 14:00, working days, usually are shipped at the next working day.
You have the right to return your purchase within 14 days (terms may apply).
Outlined with a grade range of up to 15 percent, this dual grade laser is designed with adjustable rotation speeds of 300 and 600 rpm, increasing its flexibility. Featuring digital slope in dual axis, the Zone60 HG can also be operated with a remote control for greater accuracy. In addition, this grade laser gives surveyors three receiver options to boost range and precision in every work.
Made with fully enclosed head, the Geomax Zone60’s visible 635 nm laser beam is safeguarded and well protected. With an IP67 rating, this laser is resistant to water and dust. It also has a 5/8-11 tripod thread and a 40-hour battery life with its D-cell batteries. This Geomax grade laser is backed by a 3-year manufacturer’s warranty.
Configuration Options:
- 6013527 Zone60 DG Basic rec Li-Ion pack
- 6010663 Zone60 DG Pro rec Li-Ion pack
- 6010664 Zone60 DG Digital rec Li-Ion pack
- 6012186 Zone60 DG Beam Catch Rec Li-Ion Package
Specifications:
- Tolerance: ± 0.5mm at 10m
- Working range with receiver: Ø 900 m
- Laser diode: 635nm visible (red), class 1
- Self-levelling range: ± 6°
- Temperature range: -20°C to +50°C
- Power supply: 4 alkaline D-cell (D), Lithium-Ion (Li-Ion Pack rechargeable)
- Grade: 15% in one axis with up to 3% of the cross axis. Up to 10% in both axis simultaneously
- Operating time: > 40 hours
- Dimensions: 240 x 215 x 215mm
- Weight: 3,400g
- Protection class: IP67
- Tilt warning: yes
Included:
- GeoMax Zone 60DG laser rotator
- Carrying case
- Receiver
- Li-Ion battery
- Li-Ion charger
- User manual on CD
- Quick start guide
- Safety instructions
- ZRC60 Remote control
- 5-year manufacturer's warranty
Data sheet
- Use
- Internal/External
- Warranty
- 5 years
- Self-Levelling Range
- ± 5°
- Working Range with Receiver Ø
- 900 m
- Slope Setting
- Digital
- Rotating Speed (rpm)
- 300, 600
- Power supply
- Li-Ion / 4 X D-cell
- Working Temperature
- -20°C~50°C
- Laser Beam
- Red Beam
- Laser Class
- 1
- Dust / Water Protection
- IP67
- Horizontal Levelling
- Fully Automatic
- Vertical Levelling
- Fully Automatic
- Included Receiver
- Basic / Pro / Digital
Specific References
- ean13
- 7640163572773
