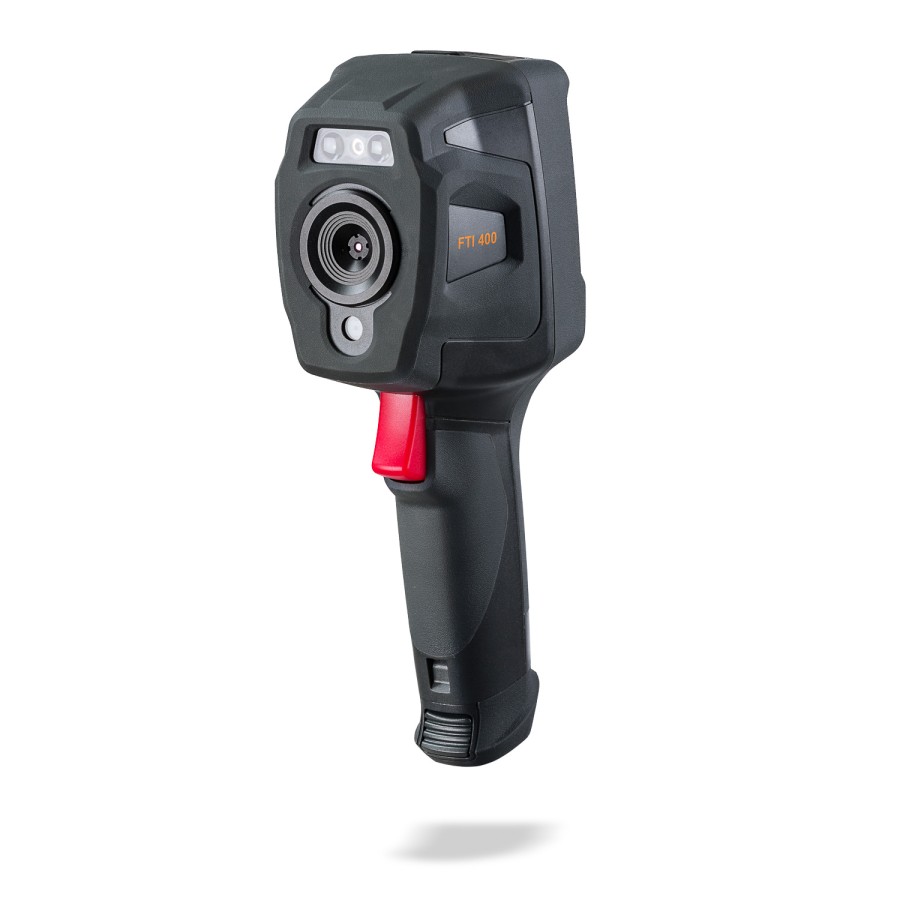

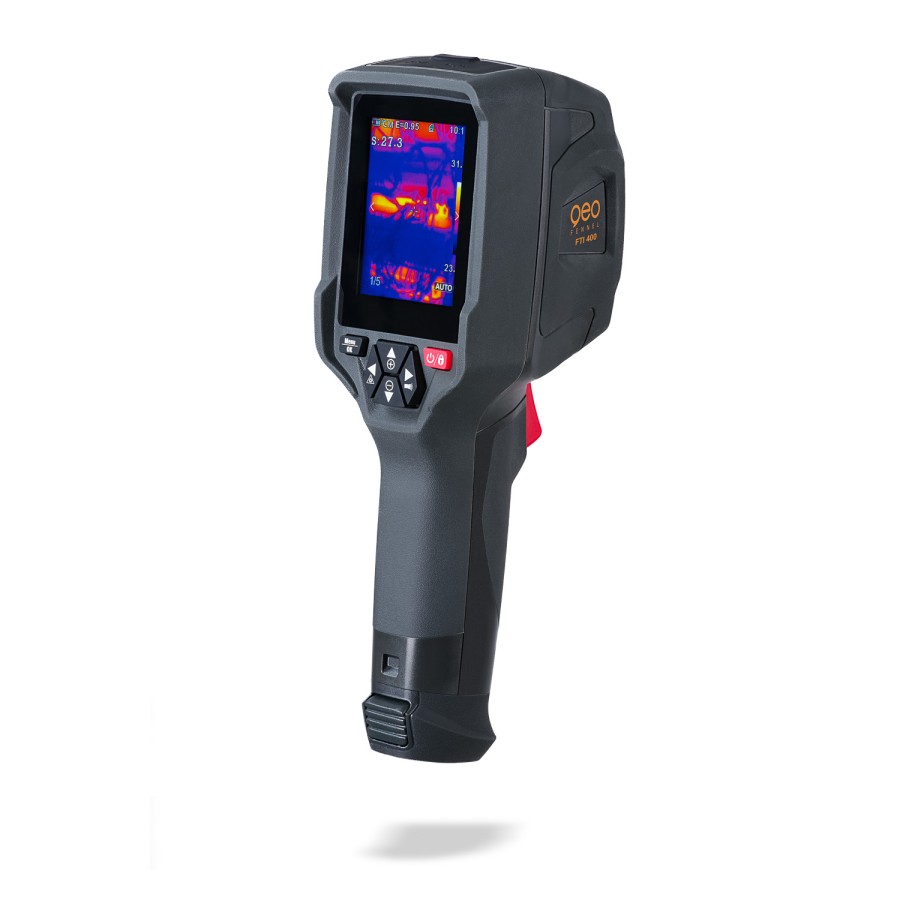

Geo-Fennel FTI 400 Thermal Imaging Camera

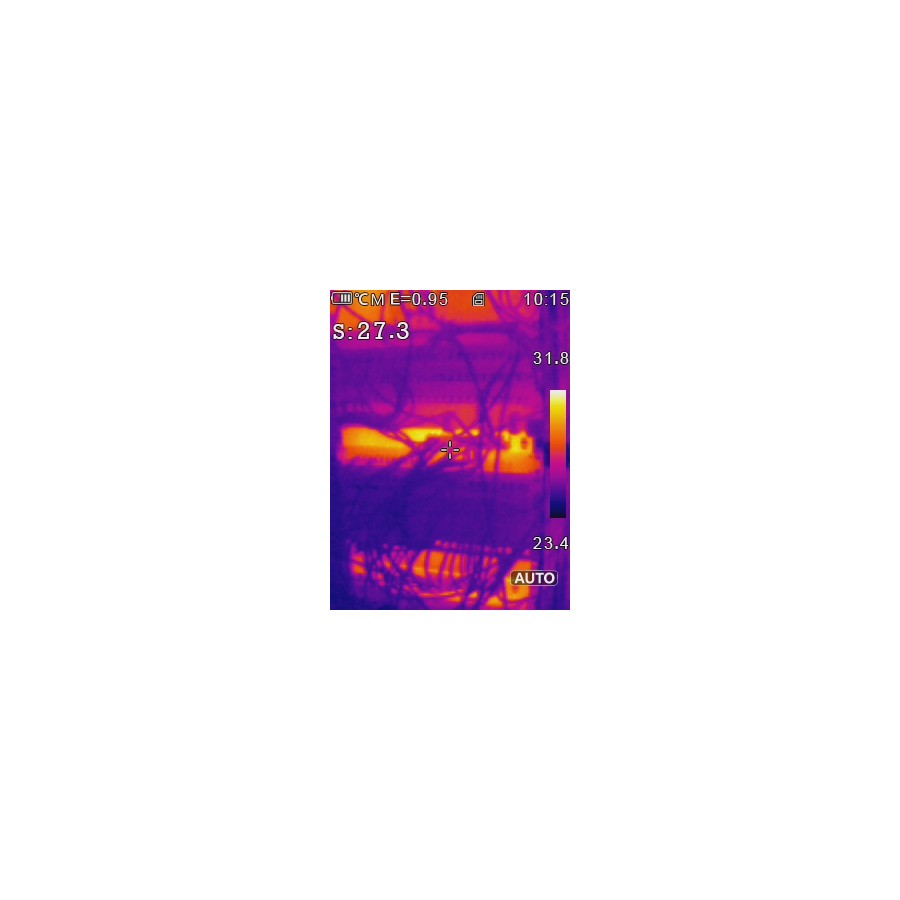

Thermal imaging cameras capture infrared radiation emitted by surfaces and objects and visualise it in the form of thermal images. The different temperature ranges are clearly visible.

Areas of application:

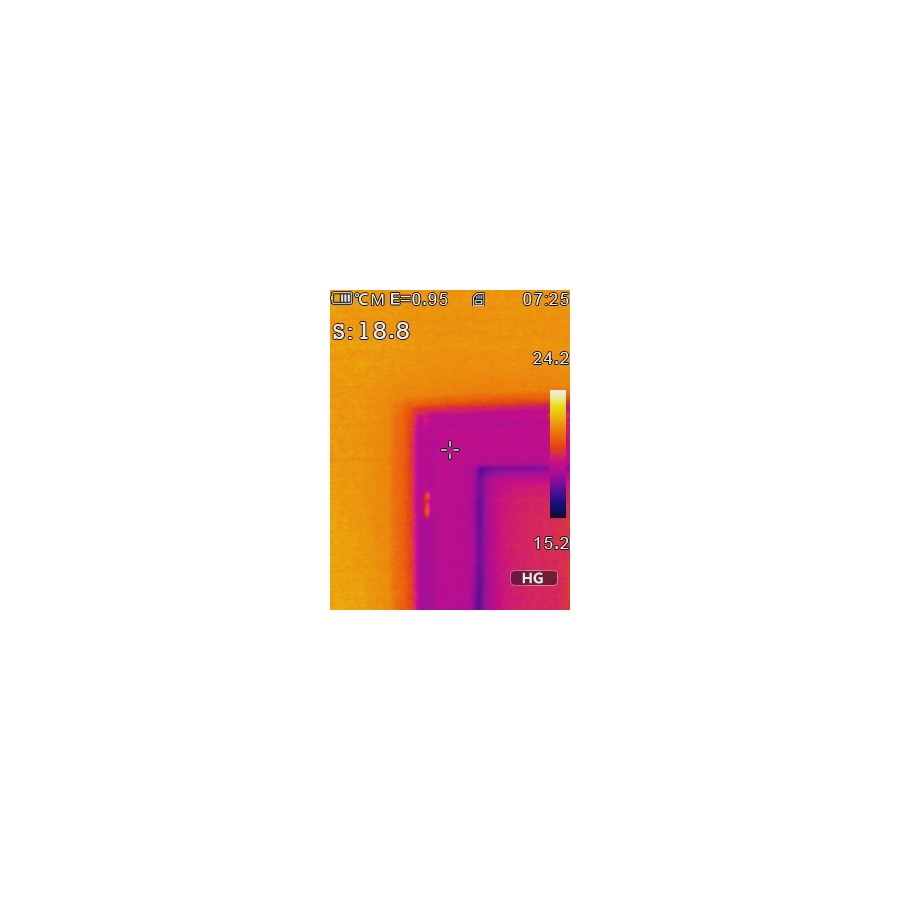

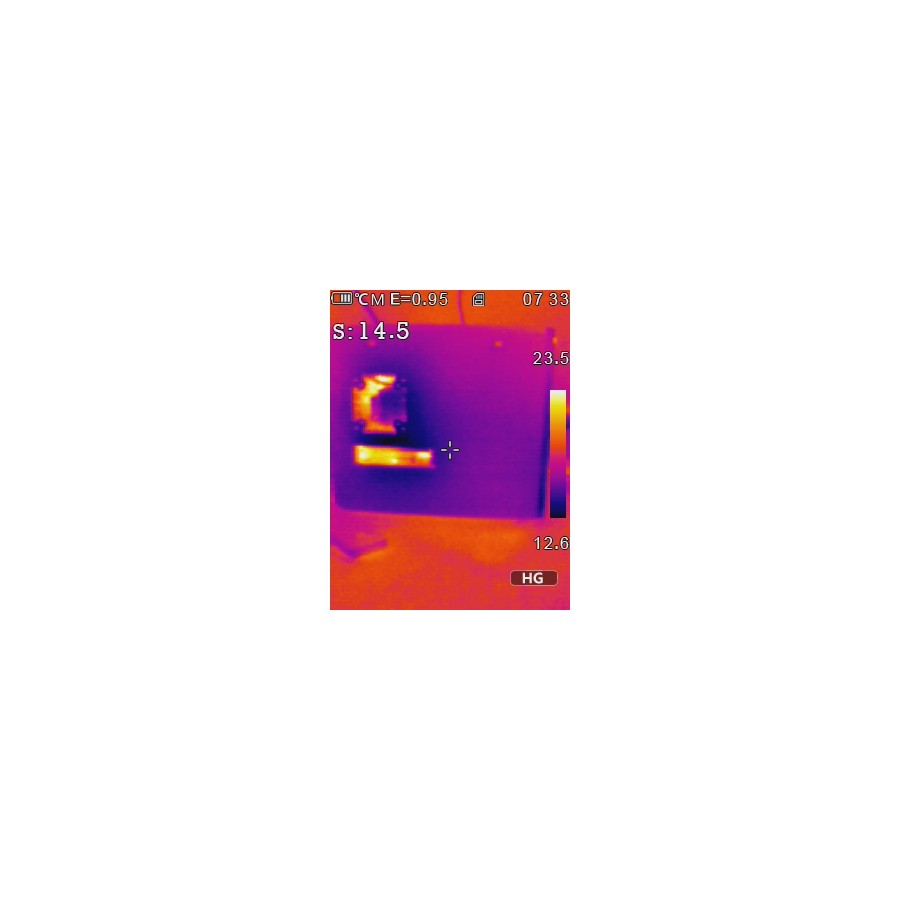

• Building inspection: Identification of leaks in the building, e.g. leaking windows or roofs. Detection of moisture and thermal bridges. Localisation of energy leaks and heat losses.
• Electrical installation: Detection of overloaded electrical components, loose connections and other problems in electrical systems.
• Plumbing, heating: Detection of leaks/thermal insulation of pipes, optimisation/investigation of underfloor heating, inspection of boilers/heat exchangers.
• Automotive sector: Troubleshooting in vehicle electronics, temperature distribution in the engine compartment/exhaust, windscreen heating, detection of overheated brakes.

Technical Specifications:

• Temperature range: -20 bis +400°C
• Thermal sensitivity: < 0,15°C (150 mK)
• IR sensor resolution: 32 x 31 Pixel
• Field of view (FOV): 40° x 40°
• Display: 2.8" TFT / 320 x 240 Pixel
• Colour palettes: greyscale (white hot), greyscale (black hot), ironbow, rainbow, rainbow (high contrast), hot metal
• Additional memory: MicroSD card 8 GB
• Operation languages: DE, EN, FR, ES, IT
• Focusing: fixed
• Accuracy: ±2°C oder ±2% der Anzeige
• Memory size: 6000 pictures
• Measurement cursors: 3 (centre, max, min)
• File format: .bmp
• PC interface: USB 2.0
• PIP (Blending fusion): IR image with visible image in 6 steps (0 – 100%)
• Extended size: 234 x 75 x 100 mm
• Power supply: 3.7 V Li-Ion battery
• Weight: 0,5 kg

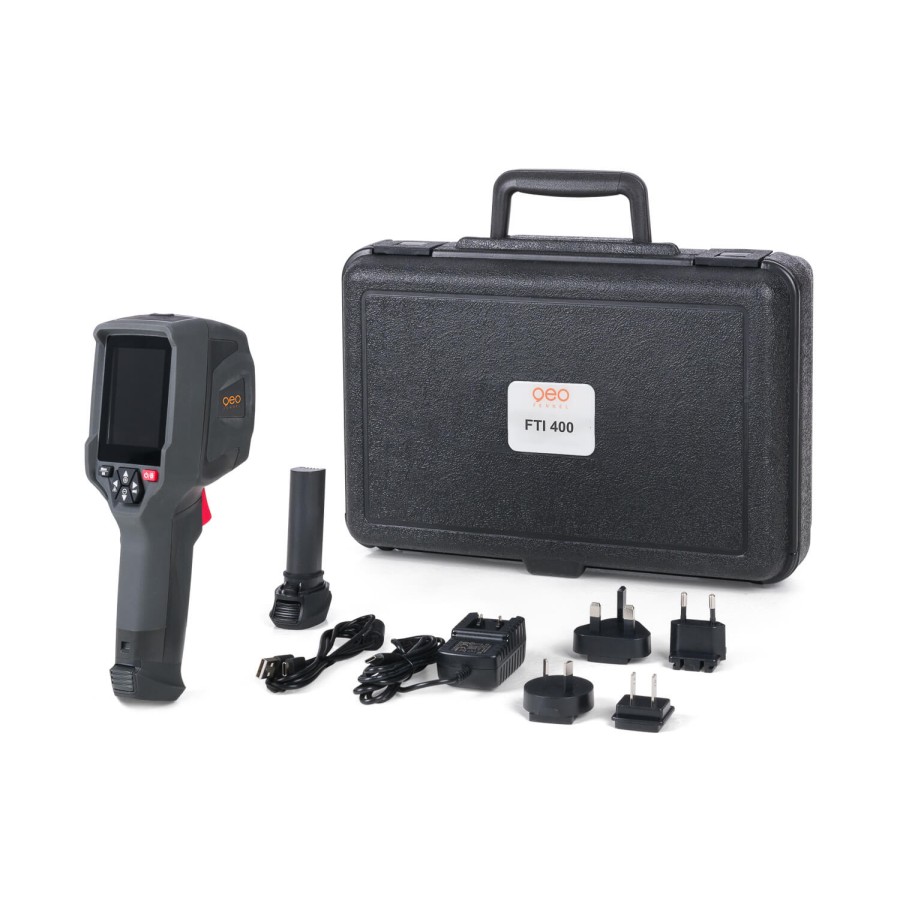

Included in the scope of delivery:

• Li-ion battery & charger
• USB-cable for data transfer and charging
• Hard case
