- The transmitter range features locate frequencies compatible with locators across the Radiodetection Precision Locator ranges, and can be easily customized to match your chosen locator using the ‘model’ feature.
- All transmitters feature constant current across their entire bandwidth in all modes (direct connect, clamp or inductive mode), and deliver convenience on-site with an IP65 ingress protection rating, removable accessory tray and a large, high-contrast, backlit LCD screen.
iLOC remote control
iLOC is an advanced Bluetooth® link between the RD8200 locator and transmitter, which allows you to control the locate signal’s power and frequency from up to 1400’ / 450m away. Less time walking and more time locating.
Fault Find

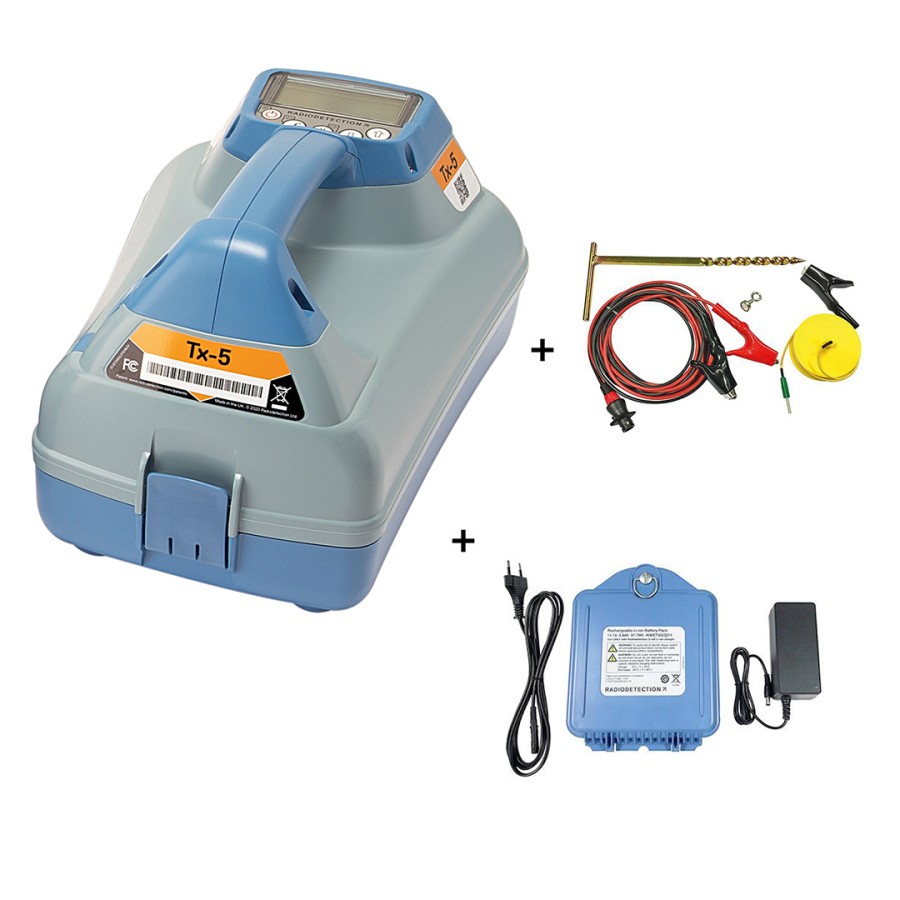

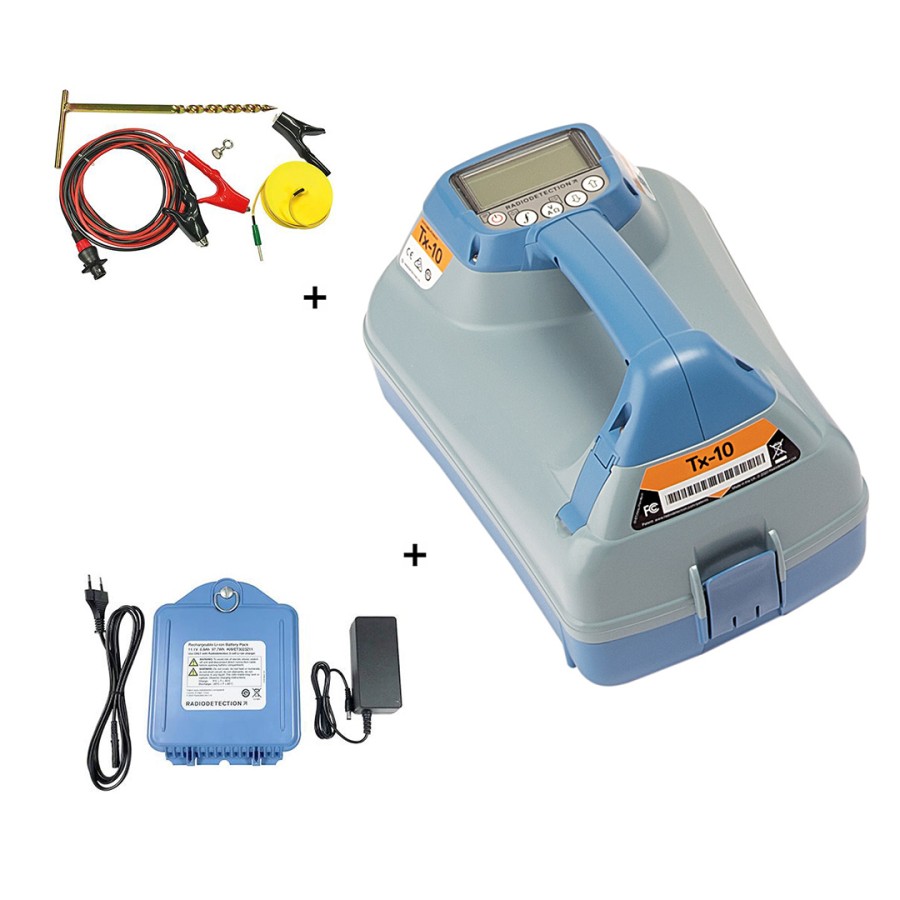

Apply a Fault-Find signal with the Tx-5 and Tx-10 transmitter and use an accessory A-frame to detect and pinpoint insulation faults.
Automatic impedance matching
Transmit your locate signal as far as possible by automatically matching the transmitter impedance to that of your target cable.
Built for on-site use – IP65
Shock resistant, ingress protected casing protects against knocks, drops, water and dust.
Multimeter function
Measure output voltage, line voltage, current, impedance and power, and characterize faults on the target line before beginning a survey
Accessories to optimize the system to your needs
90V maximum output
High voltage output makes sure that you can get locatable signal onto even high impedance lines like telephone pairs.
SideStepAuto
The transmitter can be used to recommend a general-purpose locate frequency for the intended locate task by measuring the impedance of the target cable or pipe. SideStepAuto helps to improve locate accuracy and extends battery life.

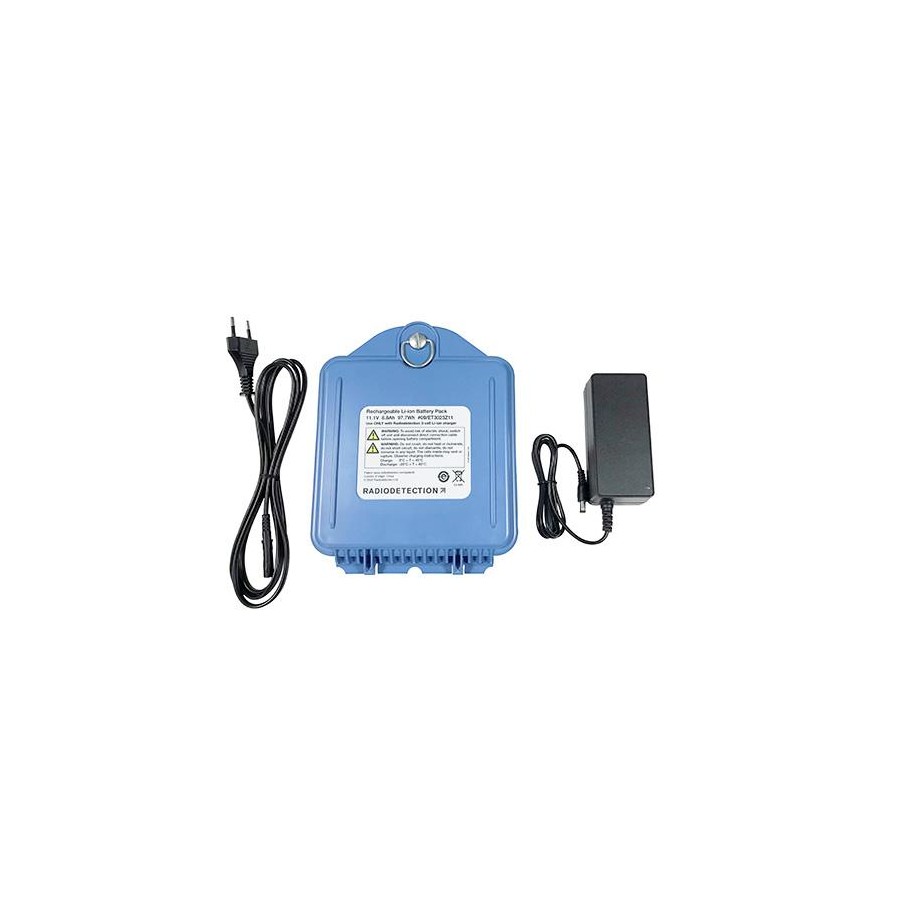

Lithium Ion battery pack option
Deliver extended run-time, lighter weight and superior cold-weather performance by comparison to standard alkaline batteries.
No need for operators to replace, manage and recycle alkaline battery cells, reducing the associated costs, workload and environmental burden.
ECO mode
Extend alkaline battery life by enabling ECO mode. When a low battery condition is detected the transmitter gradually reduces the power output and provides audio and visual warnings.

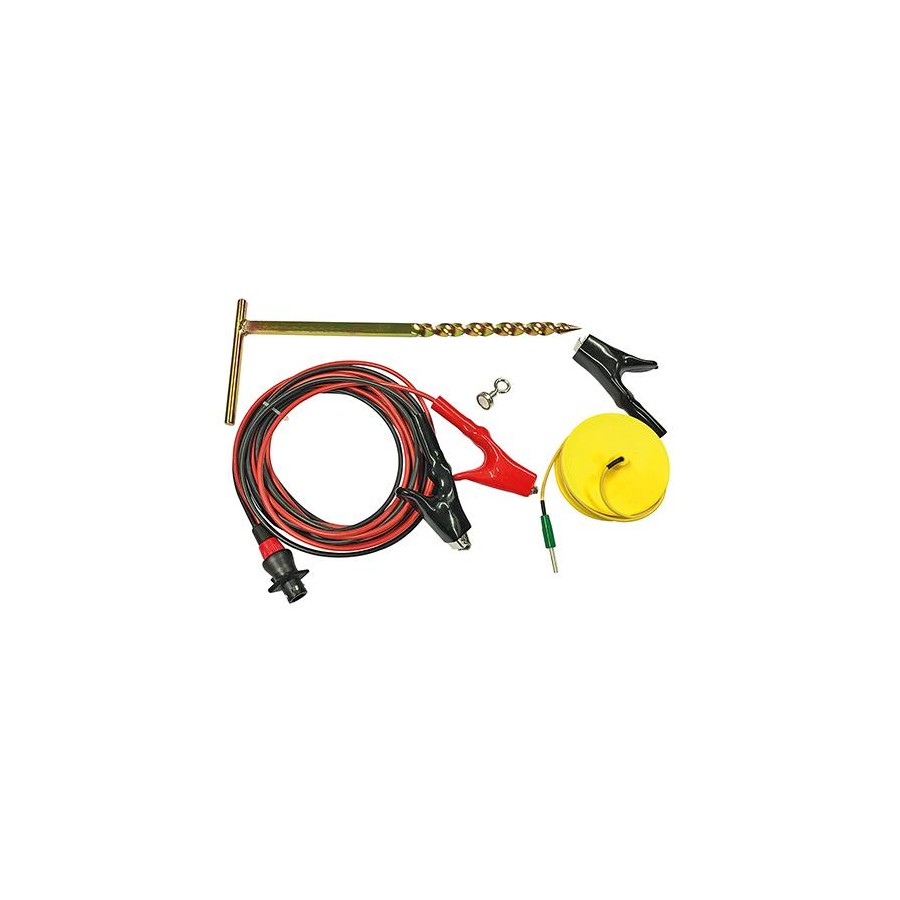

Standard Equipment:
- Transmitter
- Integrated tool tray
- Earth spool
- Earth spike
- Direct connection leads
- Magnet
Power options:
- Alkaline or NI-MH 8x D cells
- Rechargeable battery: Custom Lithium-Ion (Li-Ion) battery pack
- Battery run-time (continuous): Alk: 4 hours, NI-Mh: 7 hours, Li-Ion: 8 hours
- DC IN 12V, 3A
Physical Characteristics:
- Construction Injection Molded ABS Plastic
- Weight With Alkaline: 3.9 kg / 8.6 lb, Li-Ion: 3.8 kg / 8.3 lb
- Dimensions 350 x 220 x 220 mm / 30.8 x 8.7 x 8.7 in
- Ingress Protection rating IP65: Protected against dust ingress and jets of water3 applied from any direction
- Display type High contrast custom made monochrome LCD
- Audio options Built-in water-resistant speaker
- Operating temperature4 -20°C to 50°C / - 4°F to 122°F
- Storage temperature -40°C to 70°C / - 40°F to 158°F
Warranty and Maintenance:
- Manufacturer’s warranty duration 3 years standard, on registration
- Recommended calibration and maintenance schedule: Annual, or at the beginning / end of a lease period if earlier
