RadioDetection RD510 Water Pipe Locator & Leak Detector

Water pipe leaks result in significant water loss, increased operational costs, and hinder sustainable water management practices. While plastic pipes offer a safe, strong, and flexible alternative to traditional materials, their non-metallic nature poses a challenge for locating them underground. This can complicate maintenance, repair, and replacement efforts, further impacting water infrastructure efficiency.

The RD510 Water Pipe Locator & Leak Detector solution is designed for maintenance and repair work, helping you pinpoint leaks with precision – up to 16 feet / 5 m deep.

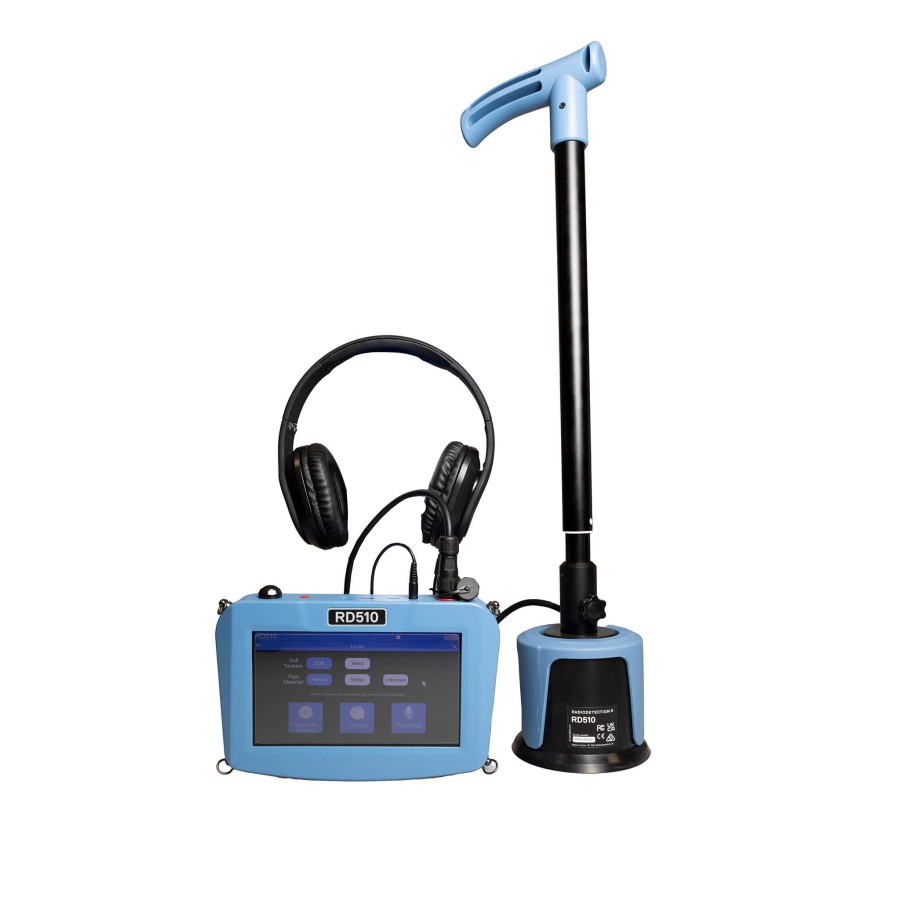

User-Friendly Control

Easy-to-use, hand-held control unit with 7” color touch screen.

High Sensitivity Microphone

Ground microphone with a telescopic pole for precise detection.

Comfortable Headset

Equipped with a standard audio jack for seamless audio clarity.

Versatile Metal Spike

Extends usability on soft ground conditions.

Noise Reduction

Band pass filter to minimize background noise interference.

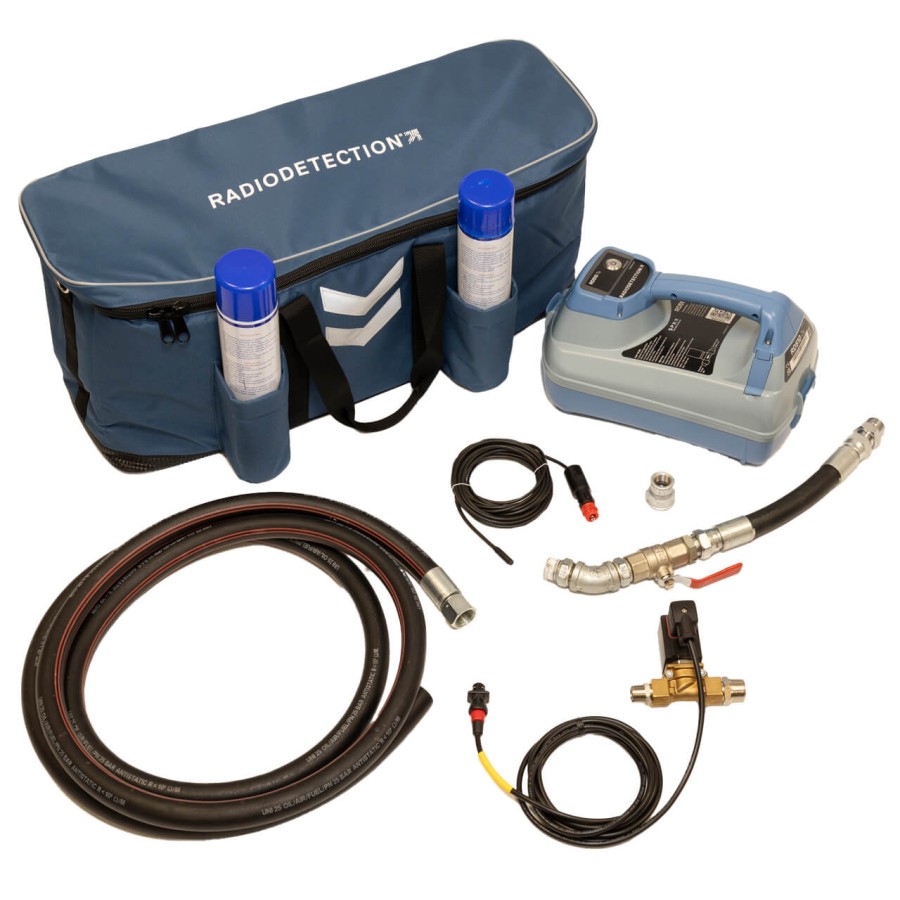

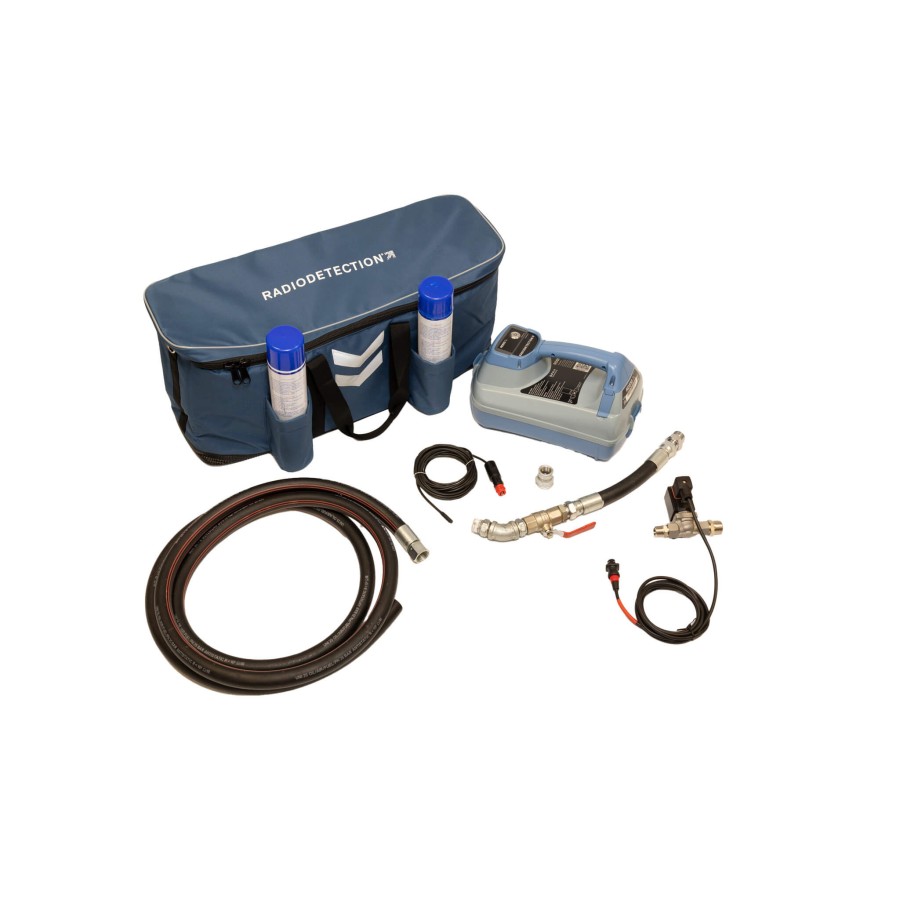

Pulsed Water Transmitter

Provides a traceable pulse to the target pipe.

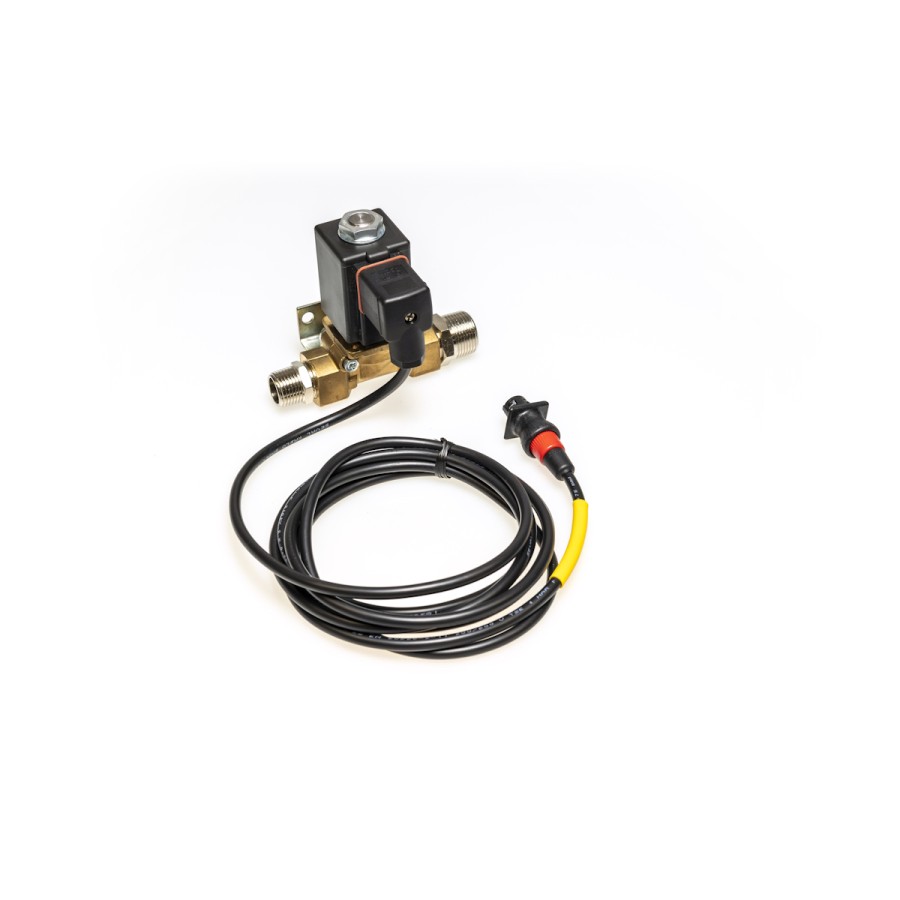

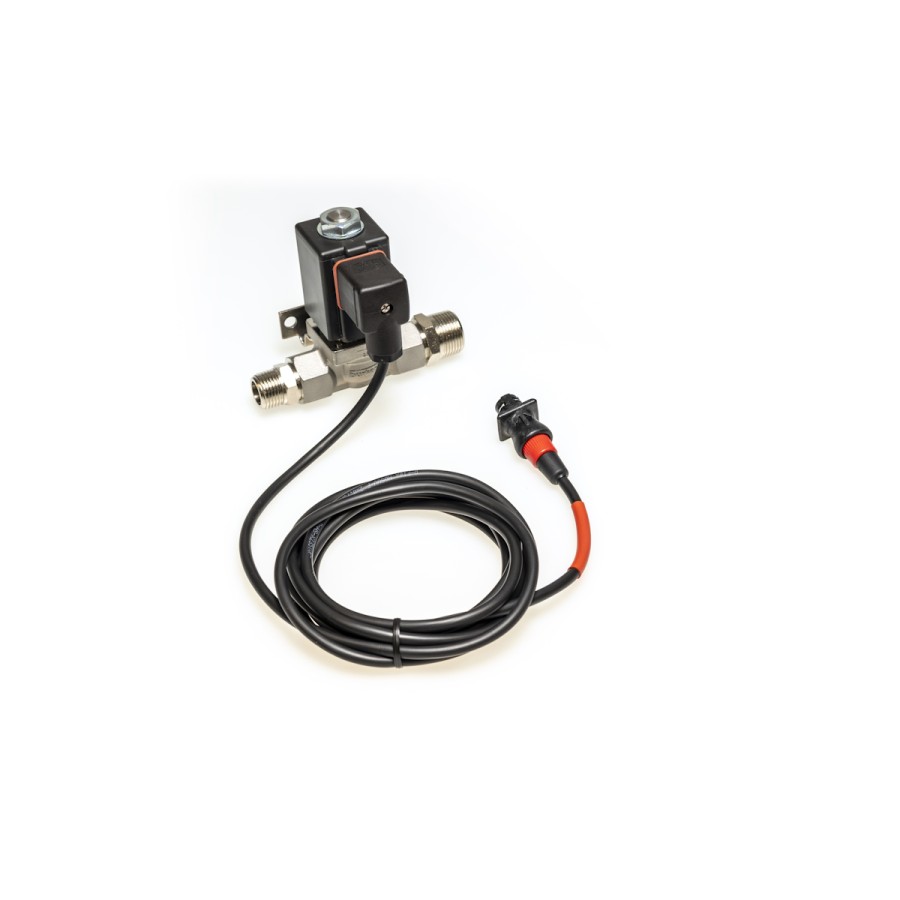

Adaptable

Pulsed Water Valves to suit most environments (4 or 10 bar).

Technical Specifications:

• Part number: 10/RD510-RX

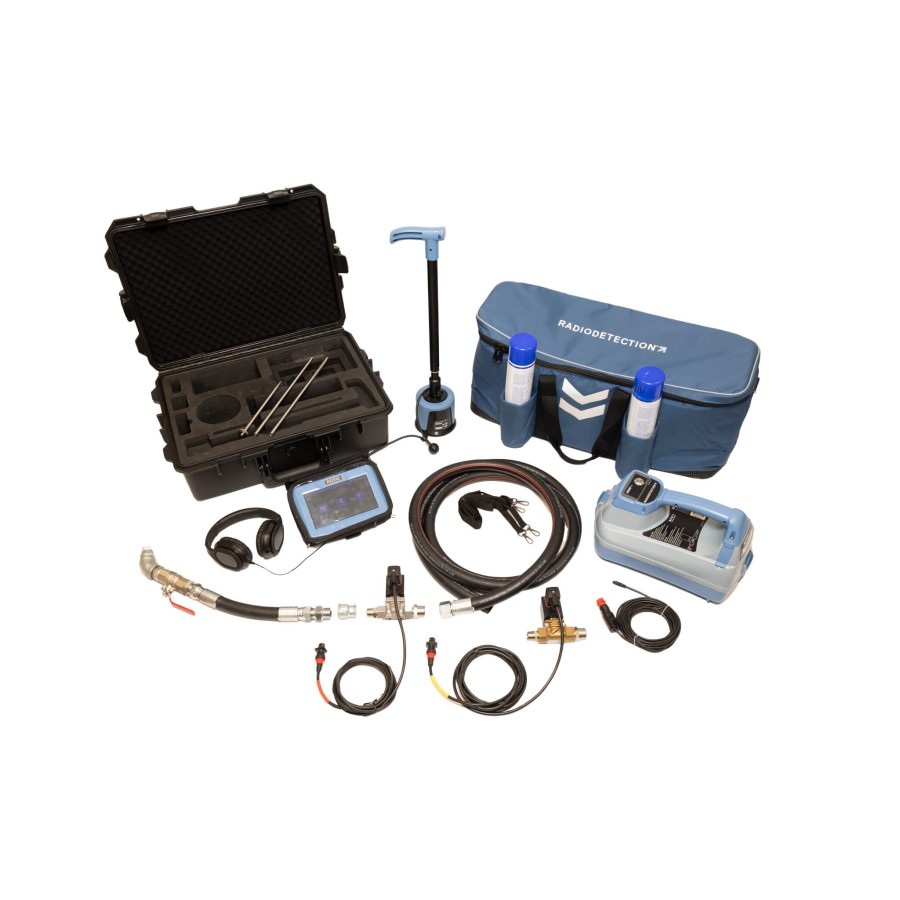

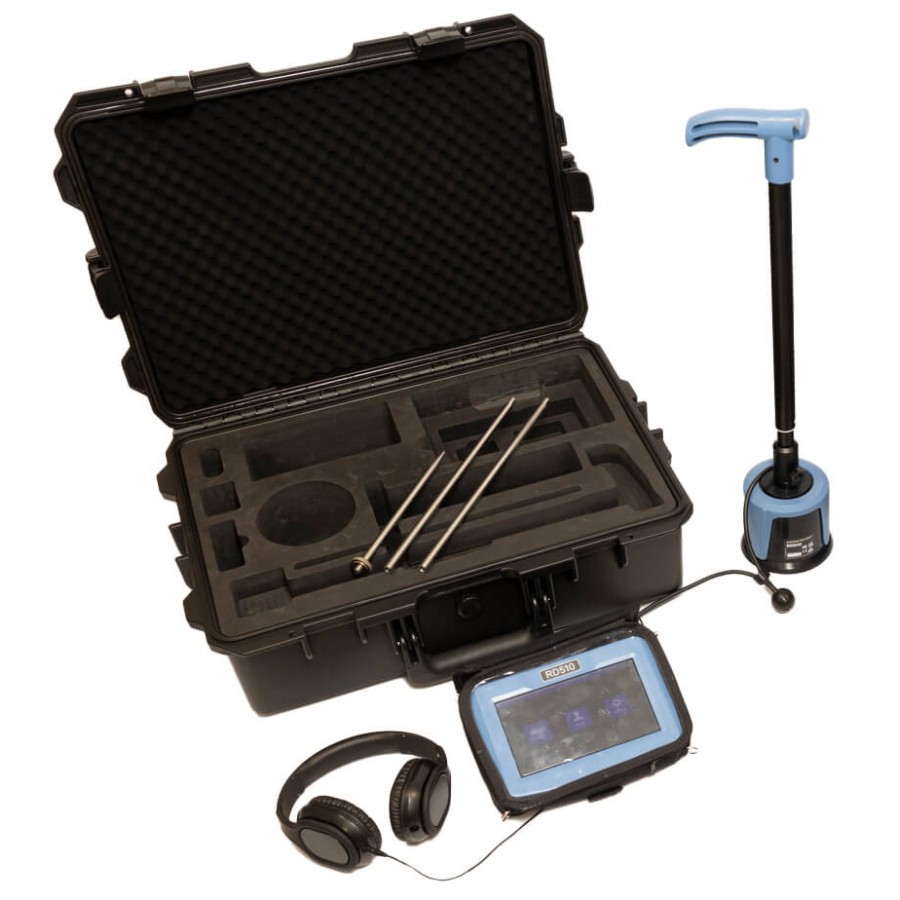

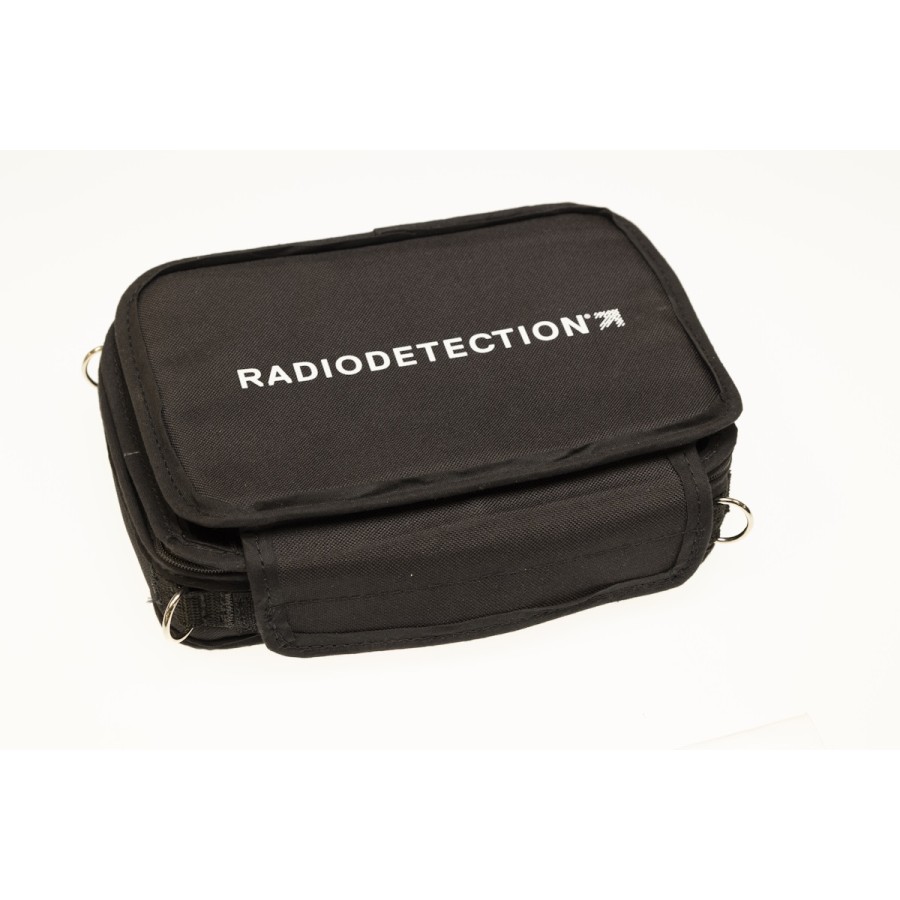

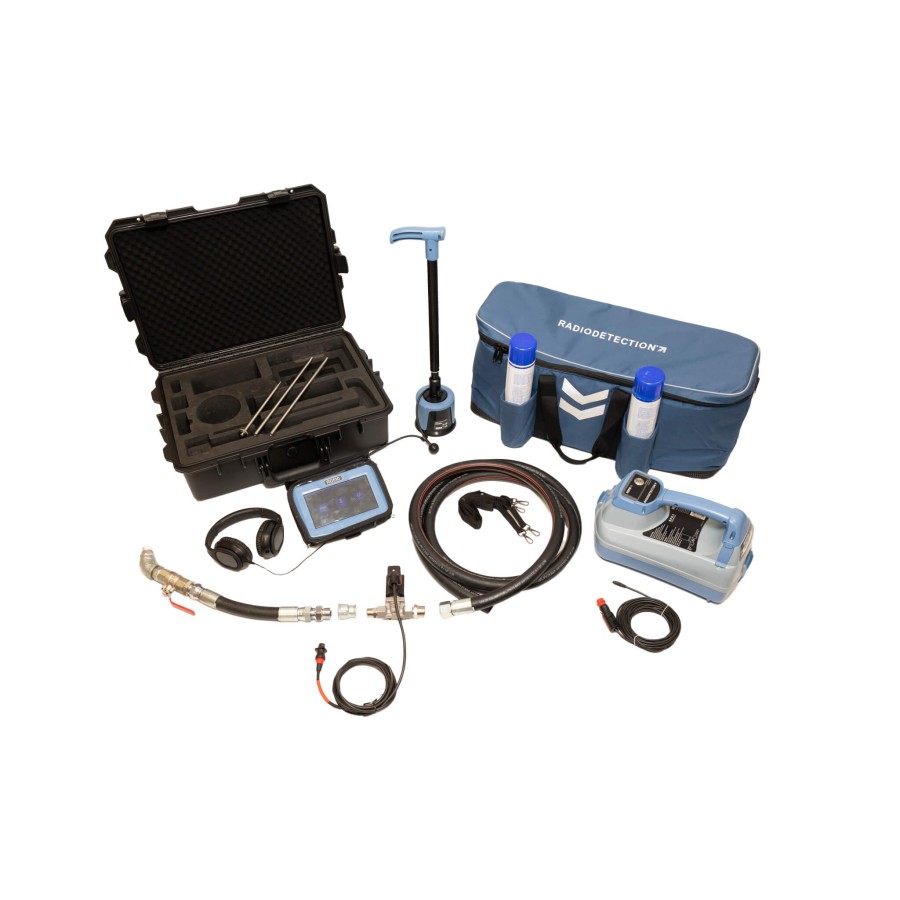

• Components: Hand held control unit with soft bag cover, acoustic sensor, telescopic pole, soft ground spikes, hard ground plate, headset, USB cable, memory card, transit case
• Weight (shipping): 9 kg
• Dimensions:(case) 22.5 x 60 x 45 cm (HxLxW)
• Construction: ABS
• Display: 7” HD touch color screen
• Power Input: 5V, 2A Micro USB
• Operating Modes: Spectrum Analysis, Locating
• Language: English
• Power: Internal Li-Ion batteries, not removable
• Frequency Range: 1:1000 Hz
• Gain: 10 levels adjustable
• Volume: 10 levels adjustable
• Response: Peak
• Acoustic Sensor Type: Piezo Electric Ceramic
• Operating Temperature: -20 to 50°C
• Operating time: Up to 8 hours (At 20°C, medium screen brightness)
