Key Features
- Android 13, 2.0 GHz and 8 core high speed processor
- 8200 mAh battery for 8 hours with quick charge available
- Professional RTK engine with detachable spiral antenna
- 8 inches touchable screen, 1280×800 HD resolution
- Rugged design with IP67, anti 1.2m free drop
- Open platform for 3rd party software applications

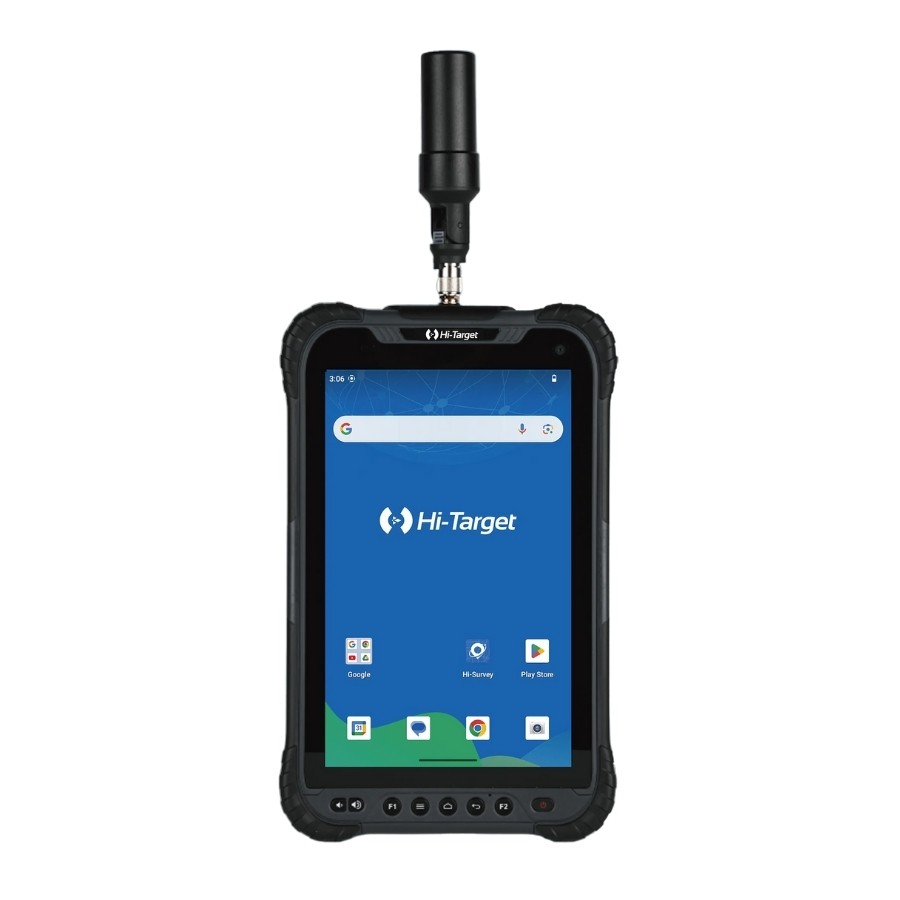

Portable and Rugged Design
Qpad X9 Pro features a rugged design, constructed with durable materials. It boasts an IP67 waterproof rating and 1.2-meter drop protection, making it perfect for harsh outdoor working environments.

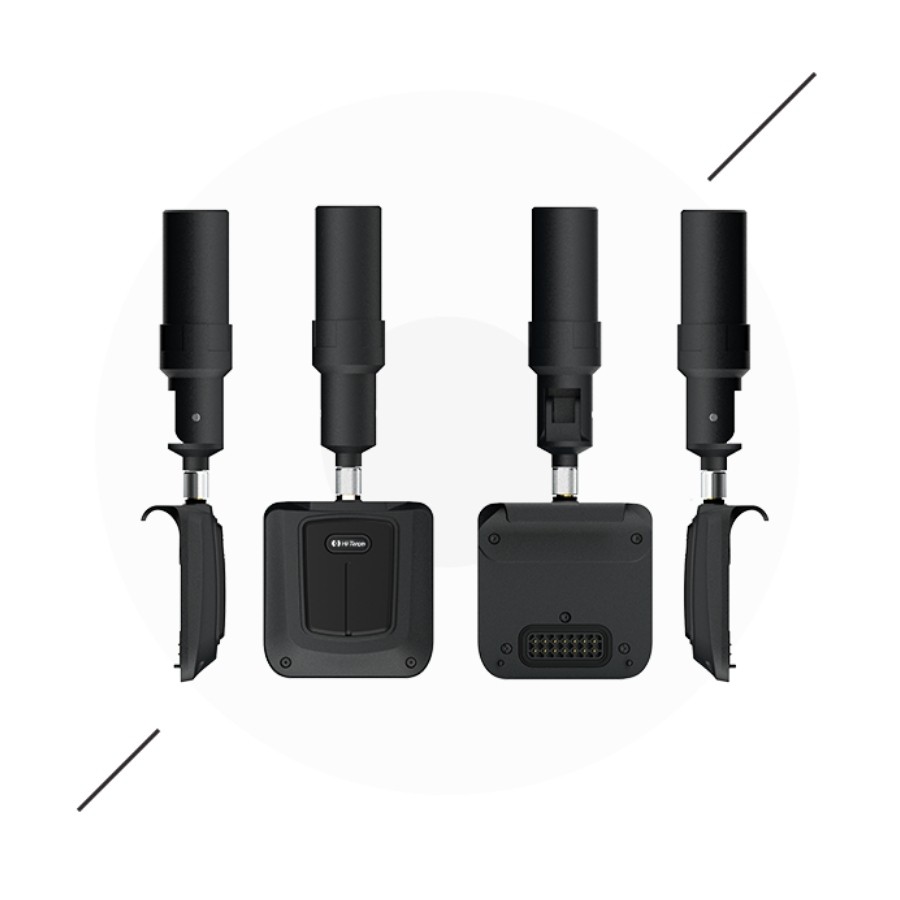

High-precision Module
Equipped with a detachable high-precision positioning module, Qpad X9 Pro supports access to CORS services for centimeter-level high-precision positioning scenarios, and can also be used as a controller to connect other positioning products.
8″ HD Touchable Screen (800nit)
Wear-resistant and drop-resistant screens can prevent scratches when used in harsh environments, and 800nit makes screen content visible under sunlight.
Abundant GIS applications
Qpad X9 Pro is pre-installed with Hi-survey software, which has abundant GIS functions and supports access to online map services such as WFS/WMS/WMTS. It is also compatible with third-party GIS applications such as Q-field and ArcGIS Pro.
Product Parameters
- Channels: 1408
- Signal tracking: GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS
- Storage: RAM: 6GB, ROM:128GB
- Size: 235mm*146mm*14.5mm
- Accuracy: RTK 2cm HRMS; PPP 20cm HRMS
- Display: 8″, 1280×800 touchable screen (800 nit)
- Battery: 8200mAh
- Weight: 480g without battery
