High-Speed Data Processing
Offer the Android 12 OS that runs on a brand new Qualcomm Snapdragon 8-core CPU, giving you faster data computation and processing without response lag.
Worry-Free Storage
Adopt UFS 2.1 6 and 128GB ROM for large storage, ensuring smooth storing operations for all your needs.
Broader Screen Vision
Feature an ultra-high-definition 600nits IPS display for outdoor use, helping you see more clearly at a glance even in direct sunlight.
Large-Capacity Battery
Adopt a 9000mAh polymer battery for harsh working environments, achieving continuous operation even in low temperatures of -20°C.
Drop-Proof Design
Boast IP68 protection rating that can withstand drops from a height of 1.2 meters to the ground, allowing you to use it with confidence in harsh and demanding environments.
Expandable Versatility
Support RTK backpack module and survey pole mounting, catering to a wider range of surveying and mapping applications.
ACCESSORY

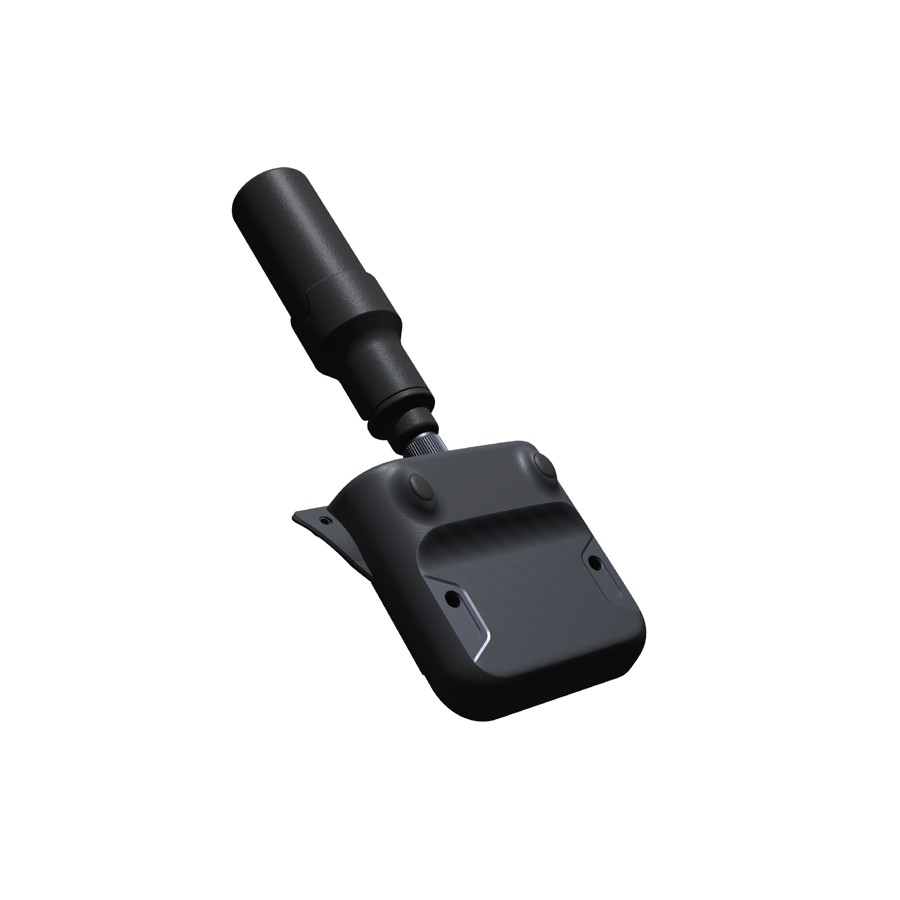

1.Positioning Backpack Clip
Support the RTK backpack module and achieve centimeter-level positioning accuracy in a plug-and-play manner.
Offer open interfaces for more integrations to satisfy free development needs.
.png)
.jpg)

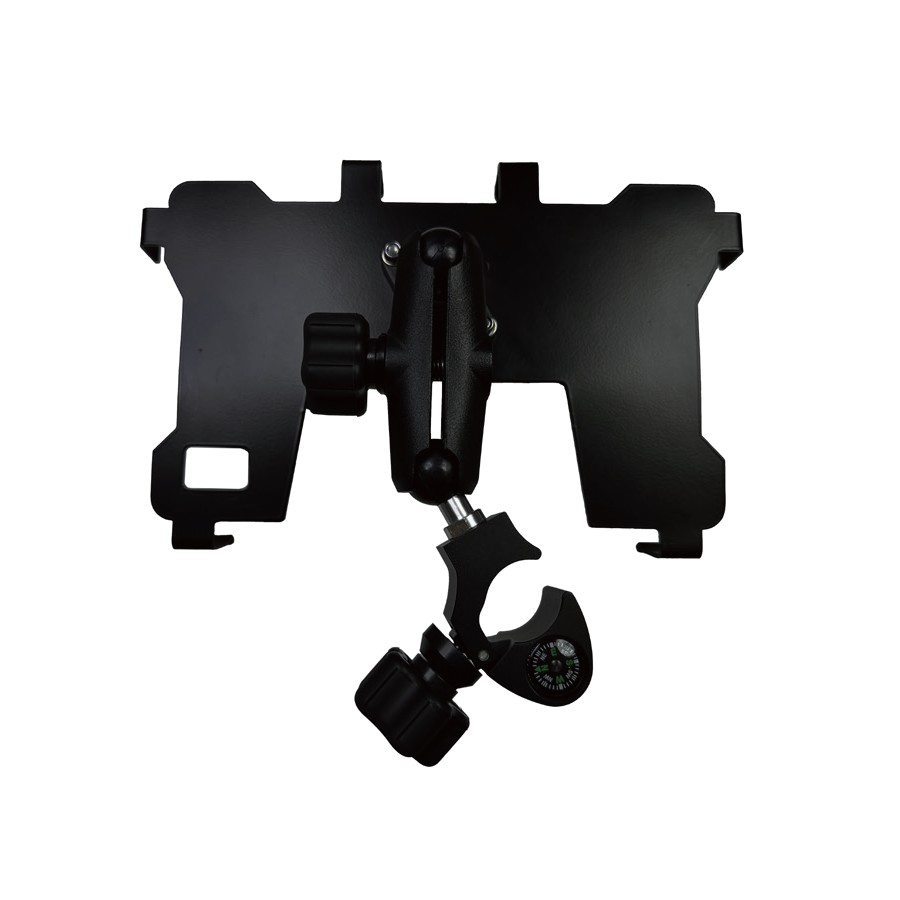

2.Bracket
.png)
QUICK SPECS
System
Operating System: Android 12.0
CPU: 8 core 2.0 GHz
RAM: 6 GB
Flash Memory: 128 GB
Memory Card: MicroSDHC up to 128 GB
Communications
SIM Card Type: Nano-SIM
Network: GSM: 850/900/1800/1900
WCDMA: B1/B2/B4/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28
Wi-Fi: IEEE 802.11a/b/g/n/ac
Bluetooth®: 5.0
USB: Type-C, OTG, USB-A*1, OTG
NFC: Support
Sensors
G-sensor
E-compass
Gyroscope
Electrical
Battery Type: Li-ion
Battery Capacity: 9900 mAh
Operating Time: 6 h
Charging Time: 4 h (typical)
Display
Size: 10.1"
Resolution: 1920 x 1200
Brightness: 600 cd/m²
Touch: Capacitive multi-touch, supporting 5-point touch
Location
Location Qualcomm GPS/A-GPS, GLONASS, BDS, Galileo
Camera
Front Camera: 8 MP
Rear Camera: 16 MP
Physical
Size: 268 mm × 174 mm × 14.2 mm (10.5 in × 6.8 in × 0.5 in)
Weight: 880 g (31.04 oz)
Operating Temperature: -20°C to +60°C (-4°F to +140°F)
Storage Temperature: -30°C to +70°C (-22°F to +158°F)
Dust and Water Proof: IP68
Humidity: 5% – 95% (non-condensing)
Shock and Vibration: 1.2 m (3.9 ft) drop on concrete
INDUSTRY APPLICATIONS
• Building Surveying
• Pipeline Surveying
• Forestry Surveying
• GIS Data Collection
• Road Surveying
