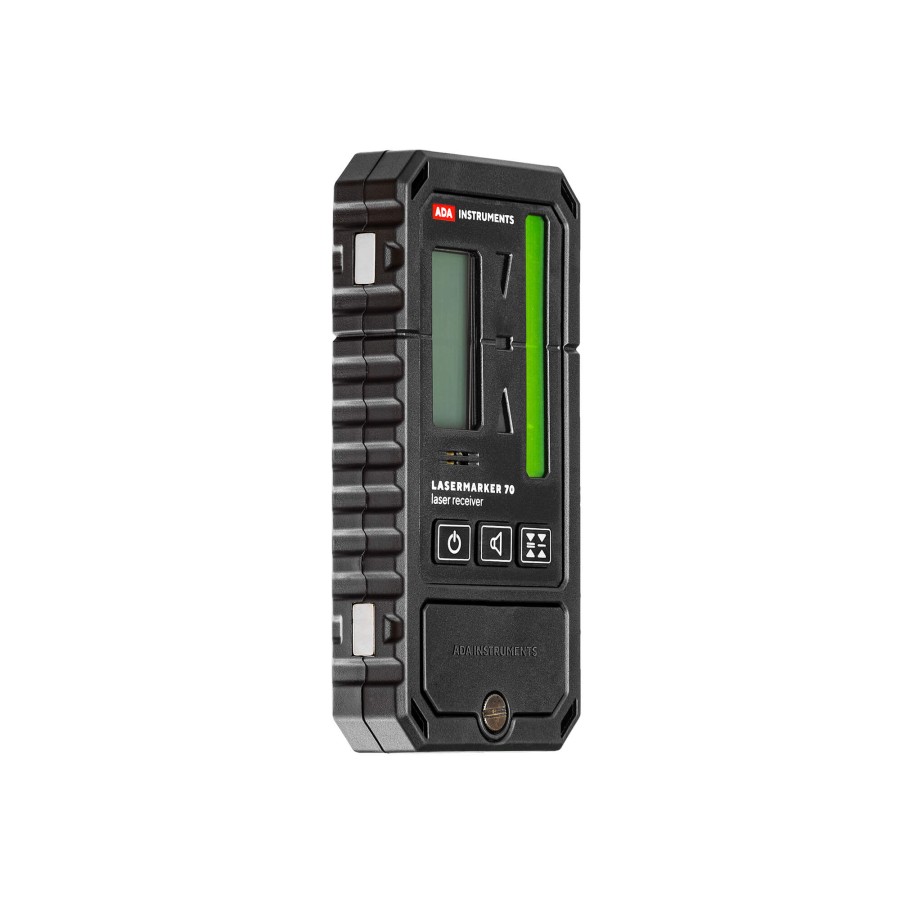

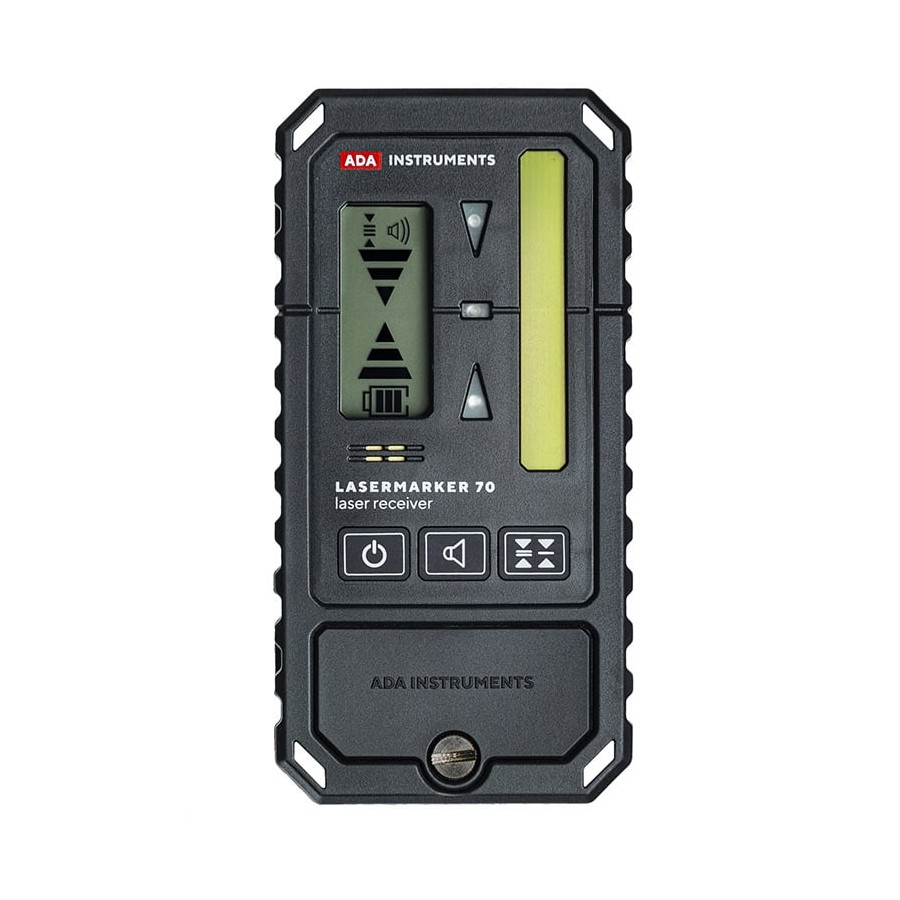

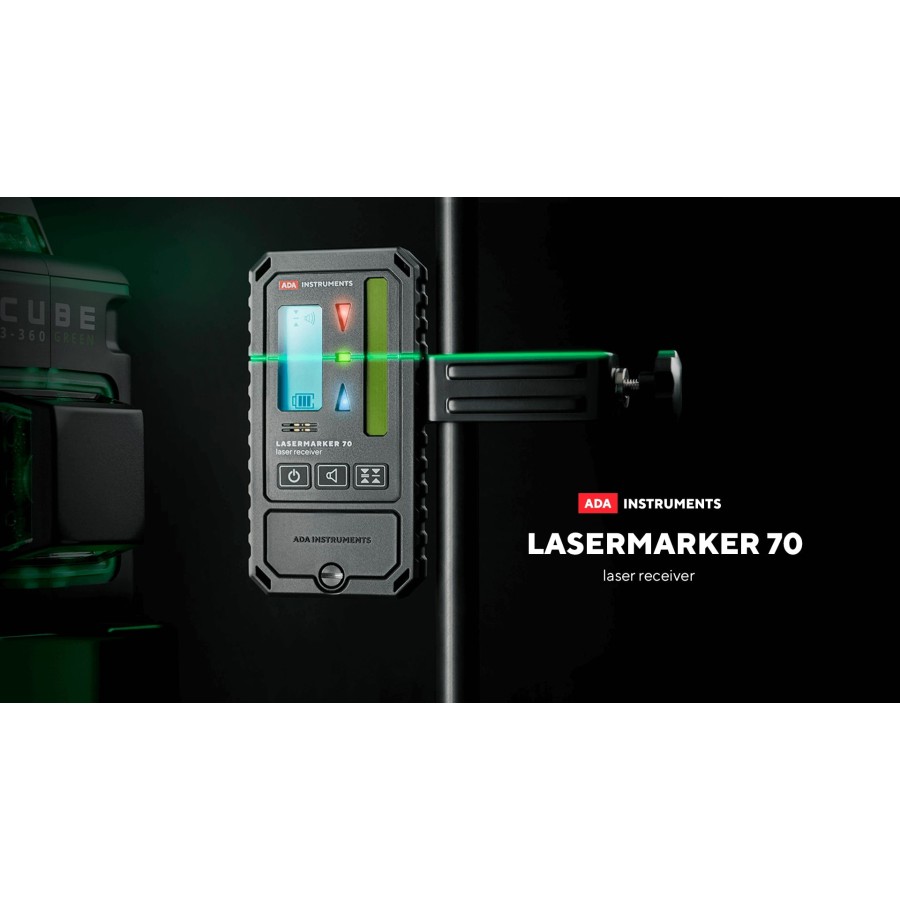

ADA LASERMARKER 70 (for green and red beam)

The ADA LASERMARKER 70 receiver works with any line laser in receiver mode. The receiver’s settings can be changed using the keypad.

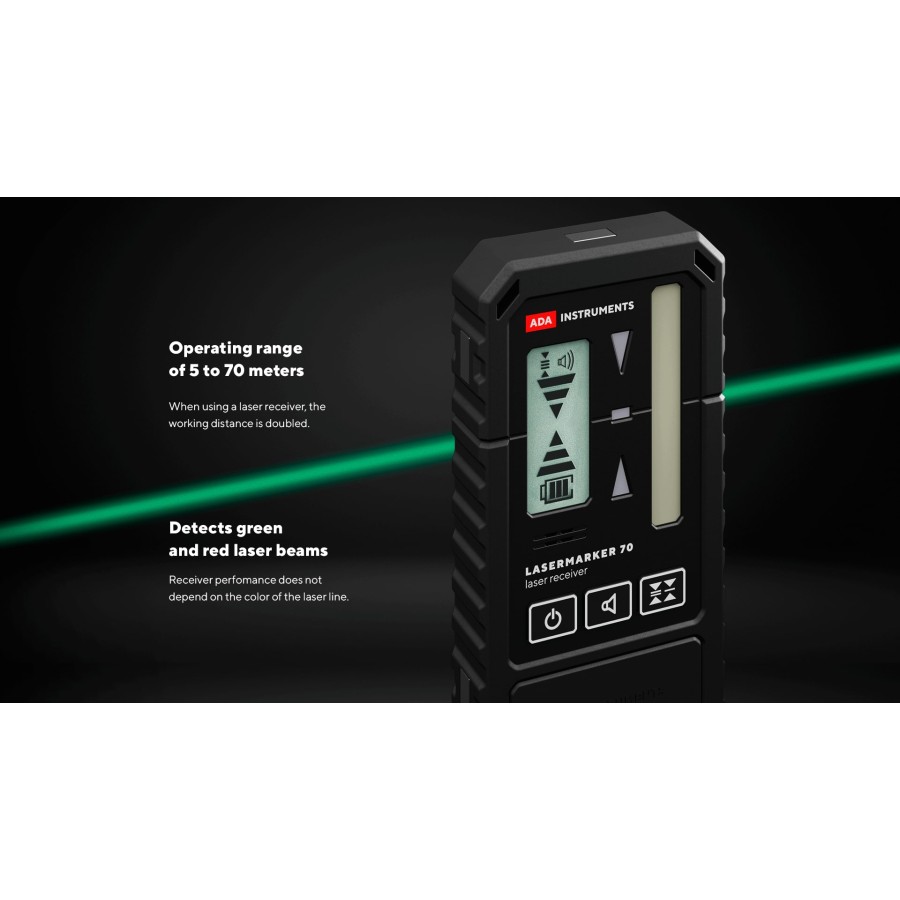

Recognizes green and red laser beams. The large (7 cm) receiving area allows fast and confident detection of the laser beam position.

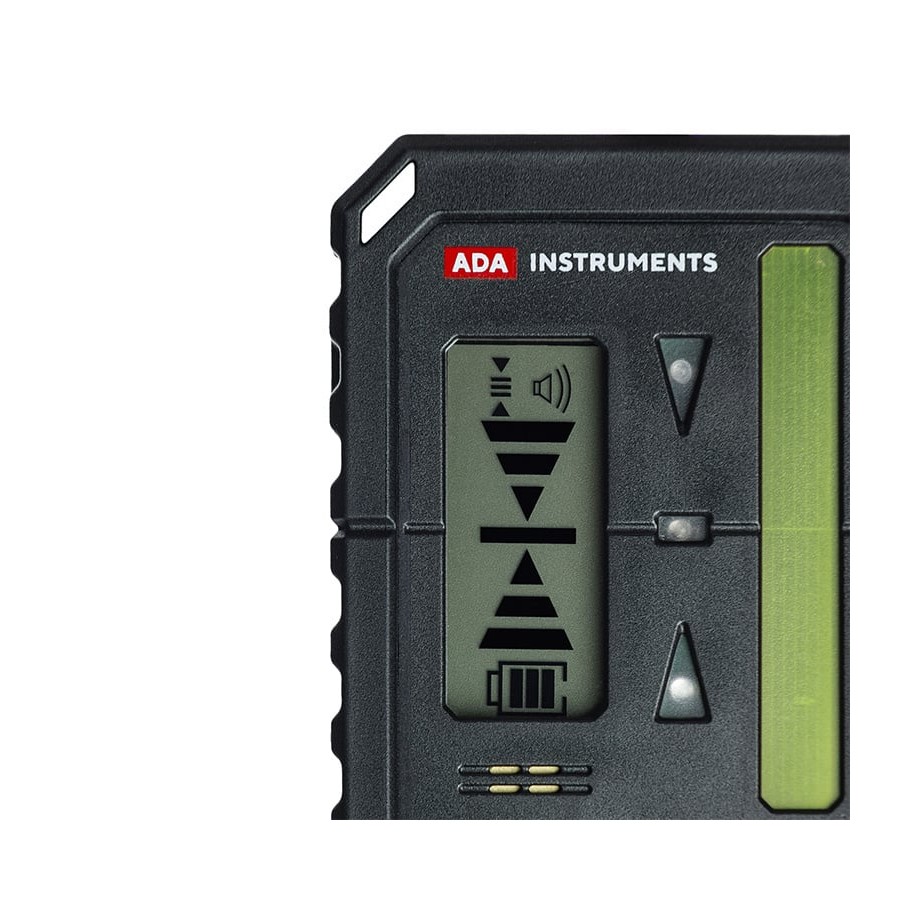

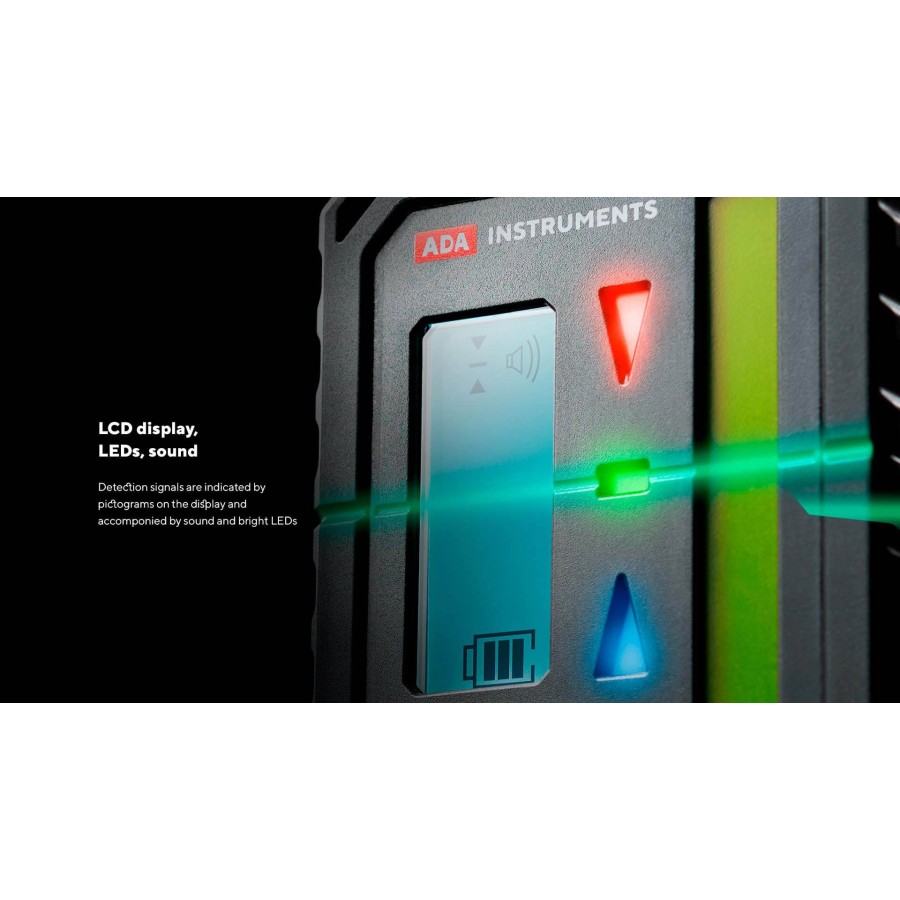

All information is displayed on the LCD screen. Light and sound indication (display and LEDs) ensures operation in various lighting conditions,

The ADA LASERMARKER 70 allows you to increase the range in bright lighting conditions, in poor visibility of the laser beam. When working at long distances where it is not possible to see the laser beam, the receiver is indispensable. When the center of the beam cannot be seen, the ADA LASERMARKER 70 will help you locate it accurately. The detection accuracy can be adjusted for reliable detection.

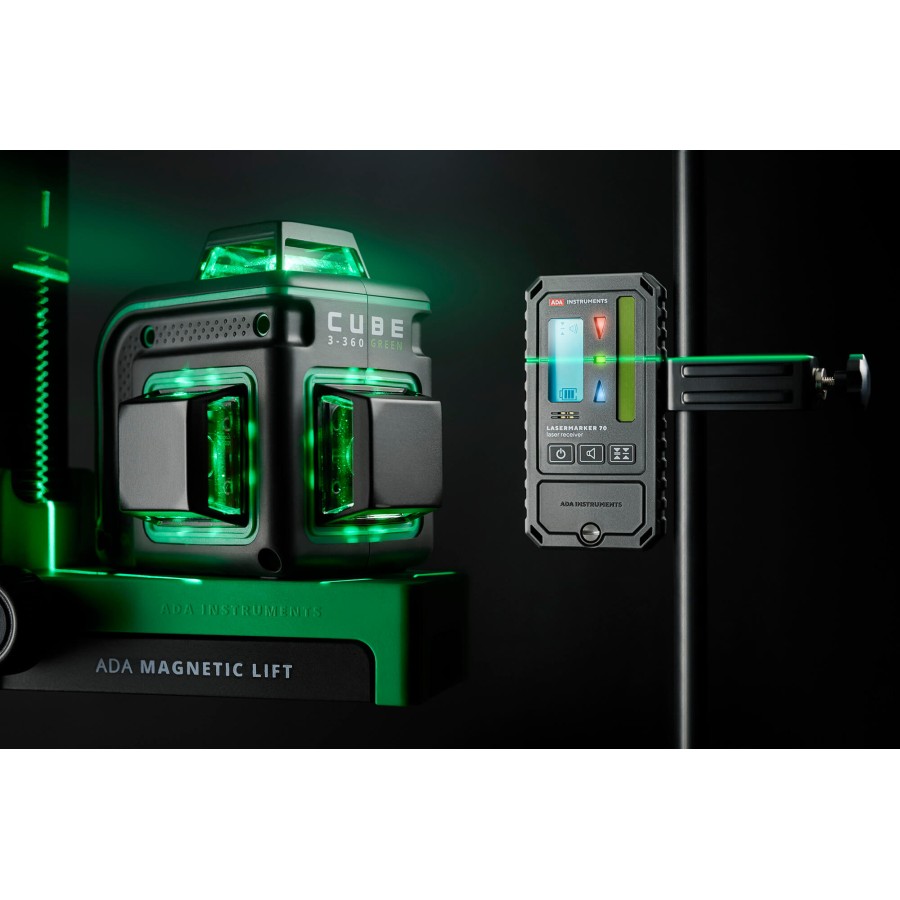

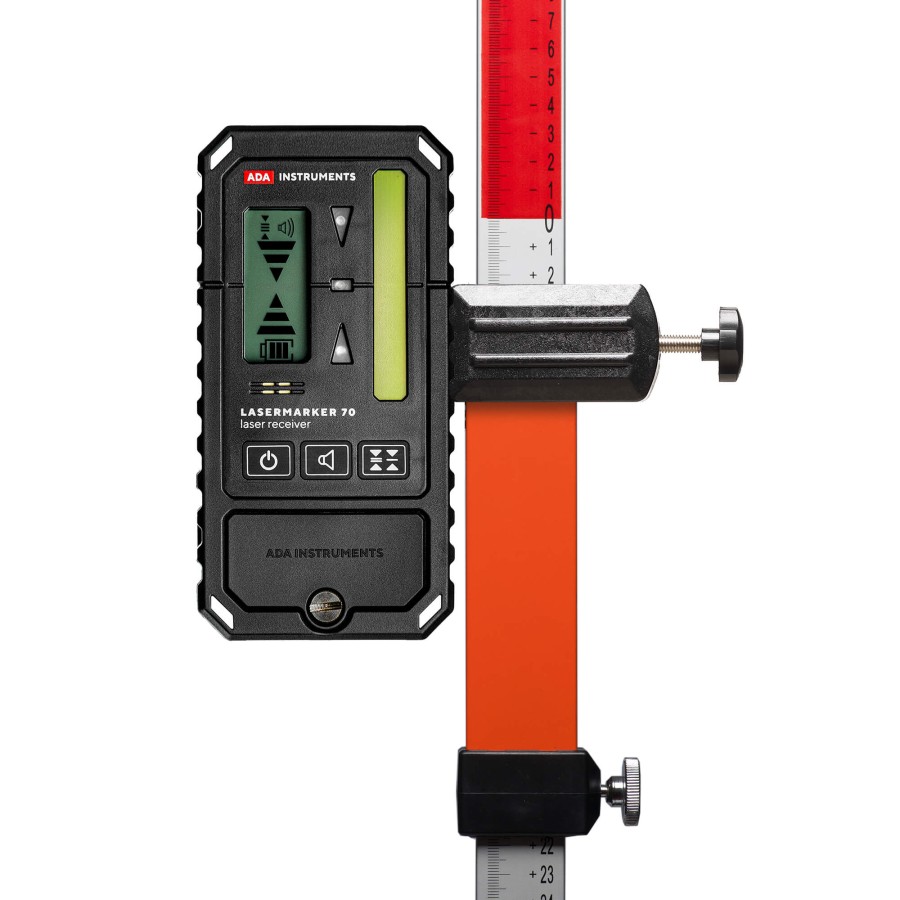

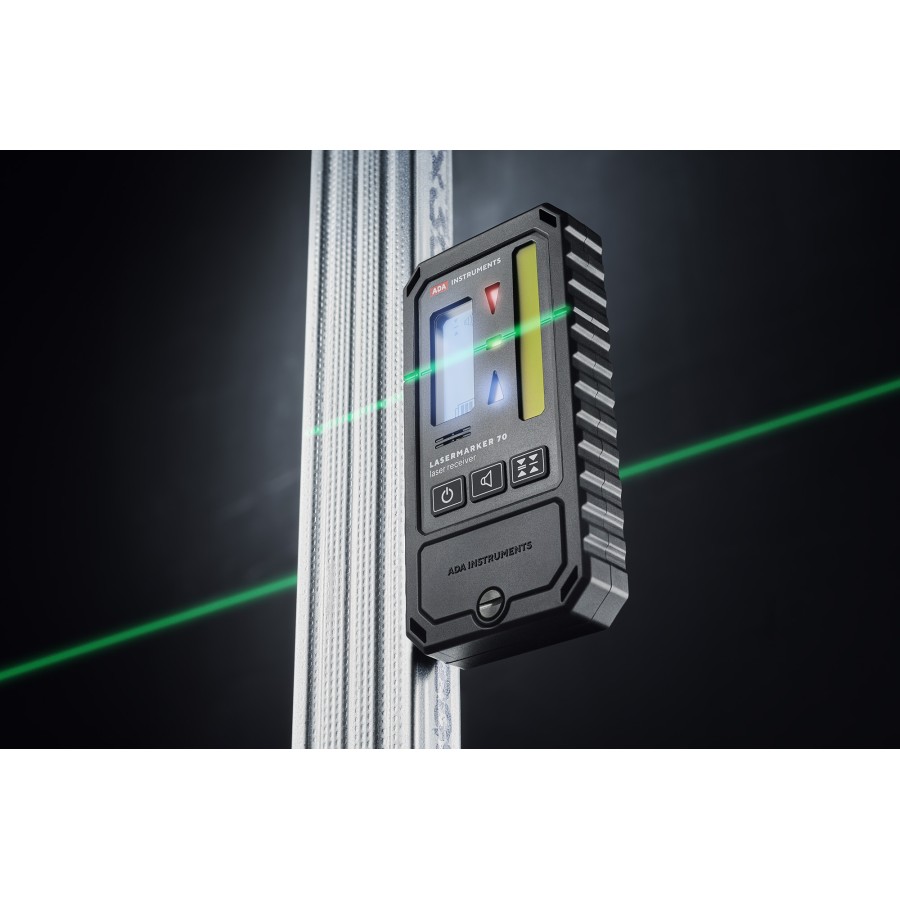

The ADA LASERMARKER 70 can be attached to the rail with a metal clamp.

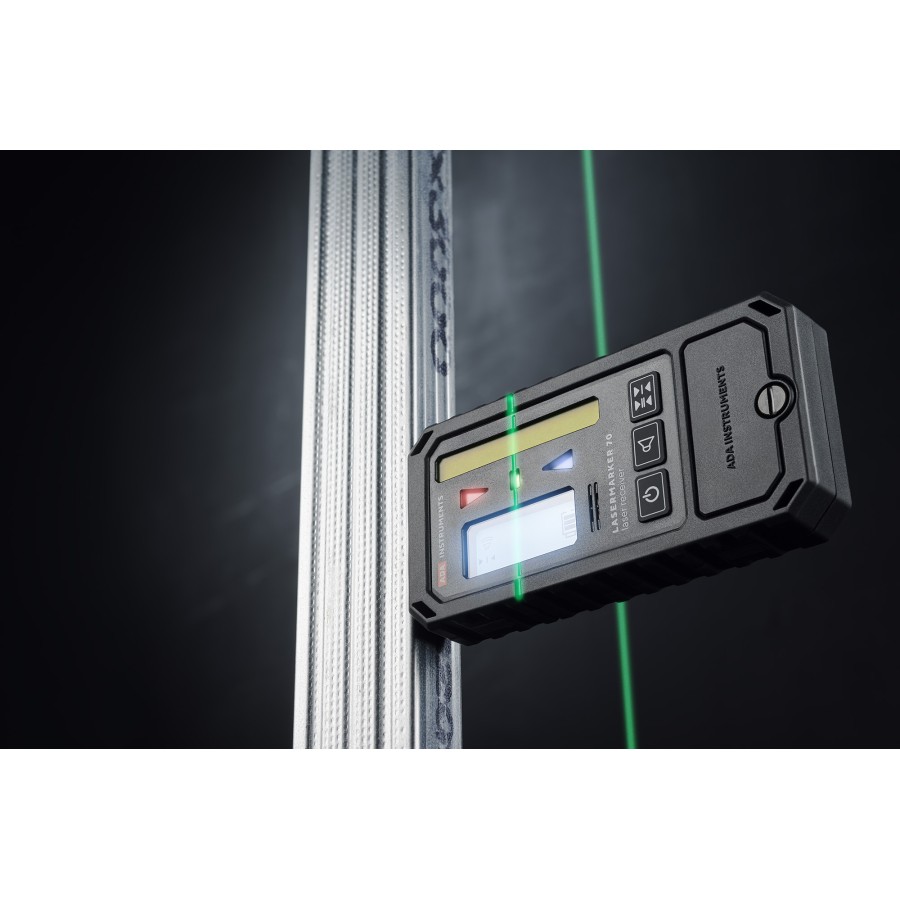

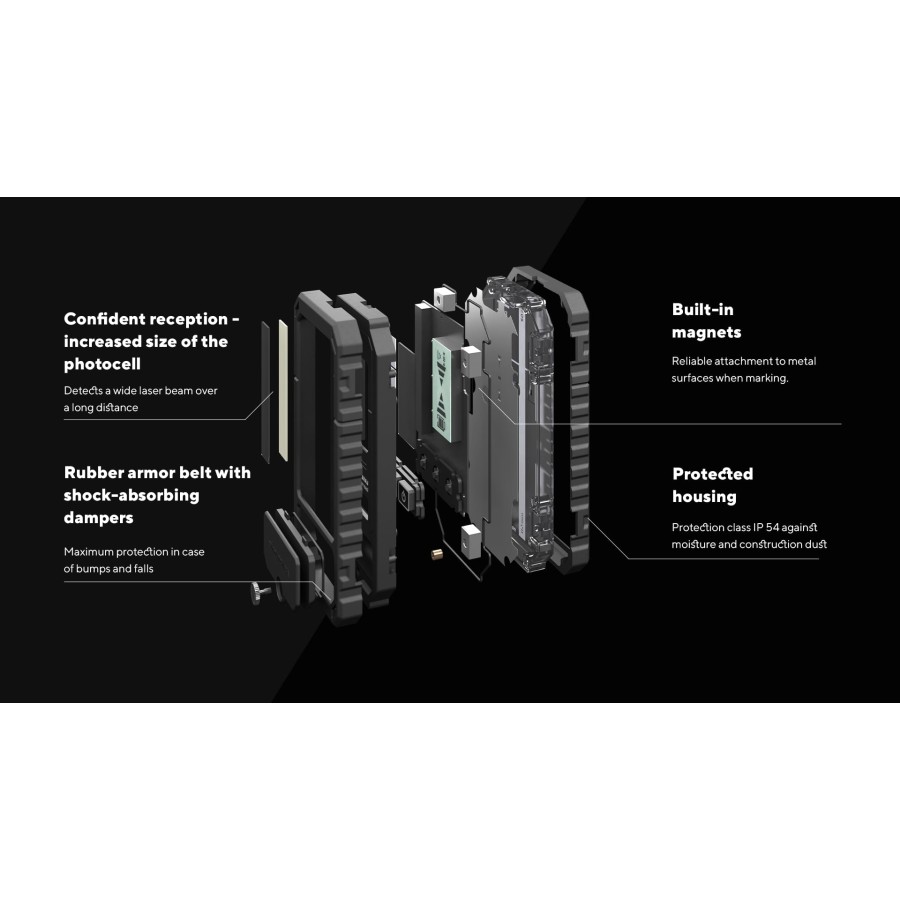

The LASERMARKER 70 can also be mounted on metal surfaces with powerful neodymium magnets.

Specifications

• Indications: LCD display / Indicators on the front of the receiver

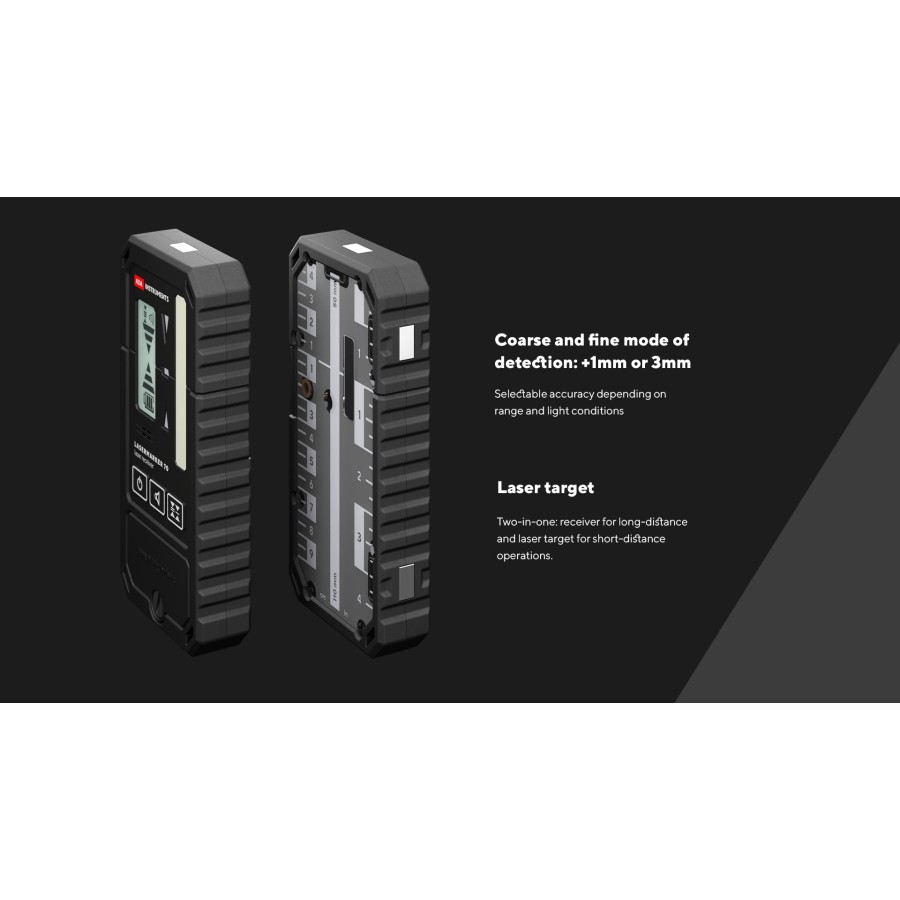

• Accuracy: ± 1mm / ± 3mm
• Working range: 5-70 m
• Power supply: 2x1.5V (AAA)

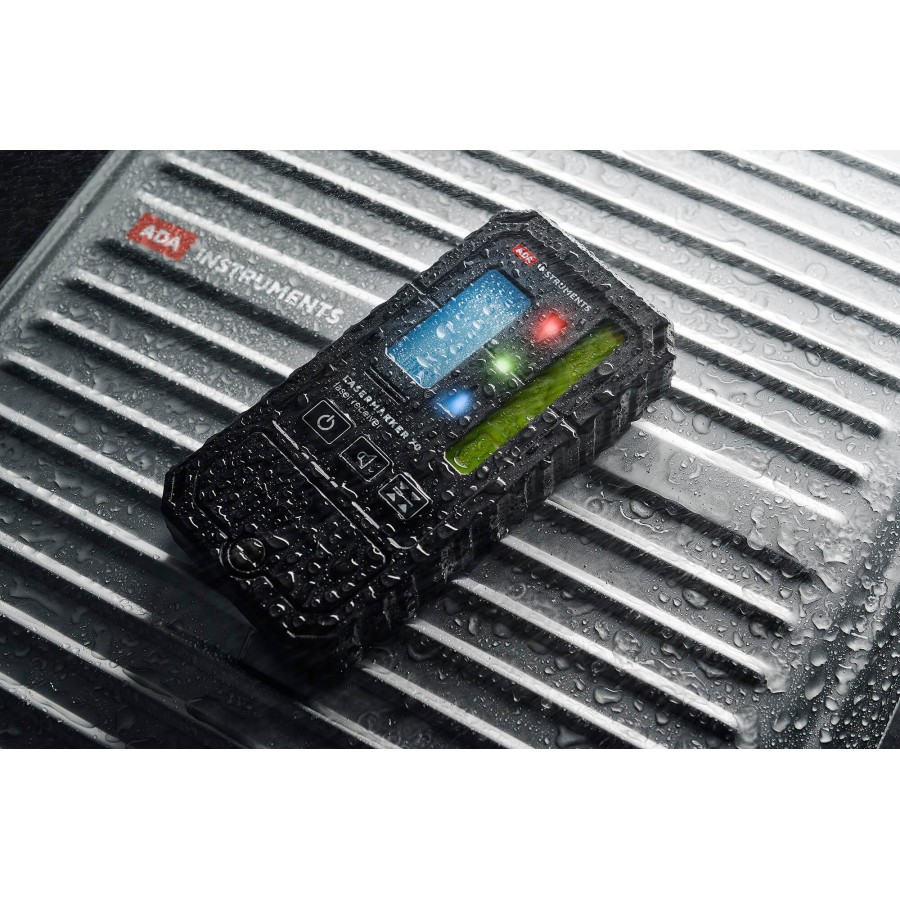

• Protection: IP54
• Operating temperature: -10° to +50°
• Dimensions LxWxH: 160 x 80 x 25 mm
• Weight: 0.15 Kilogram

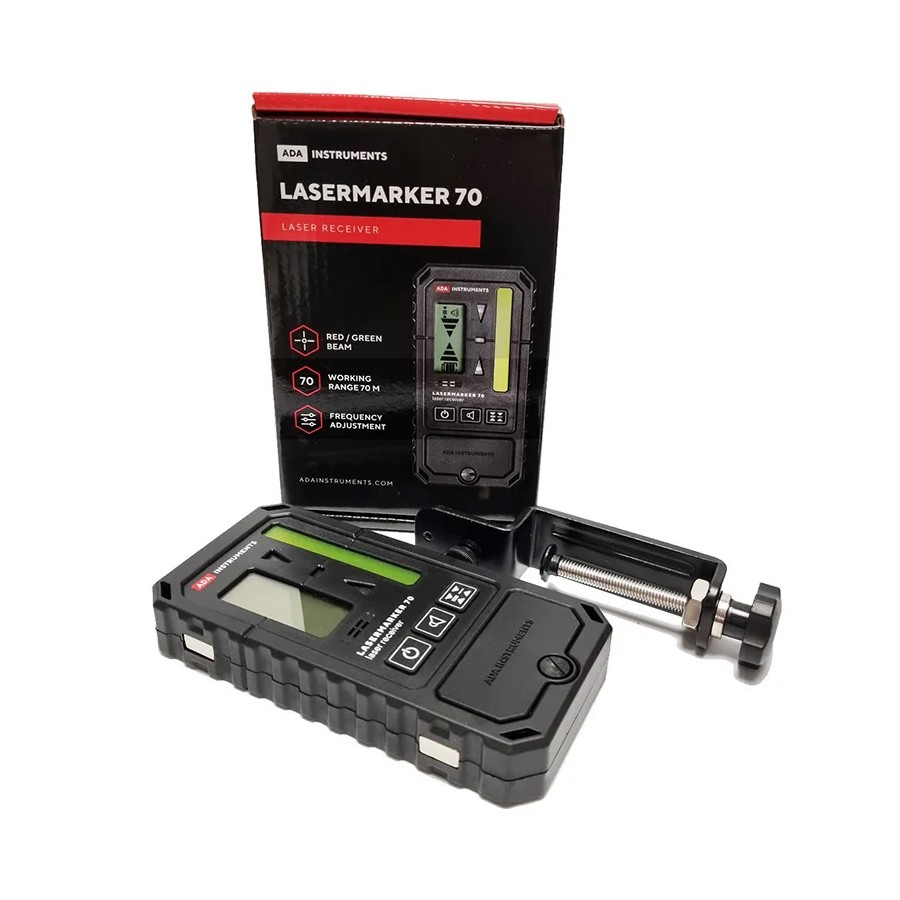

Includes

• Laser beam receiver
• Batteries
• Mount
• Manual
