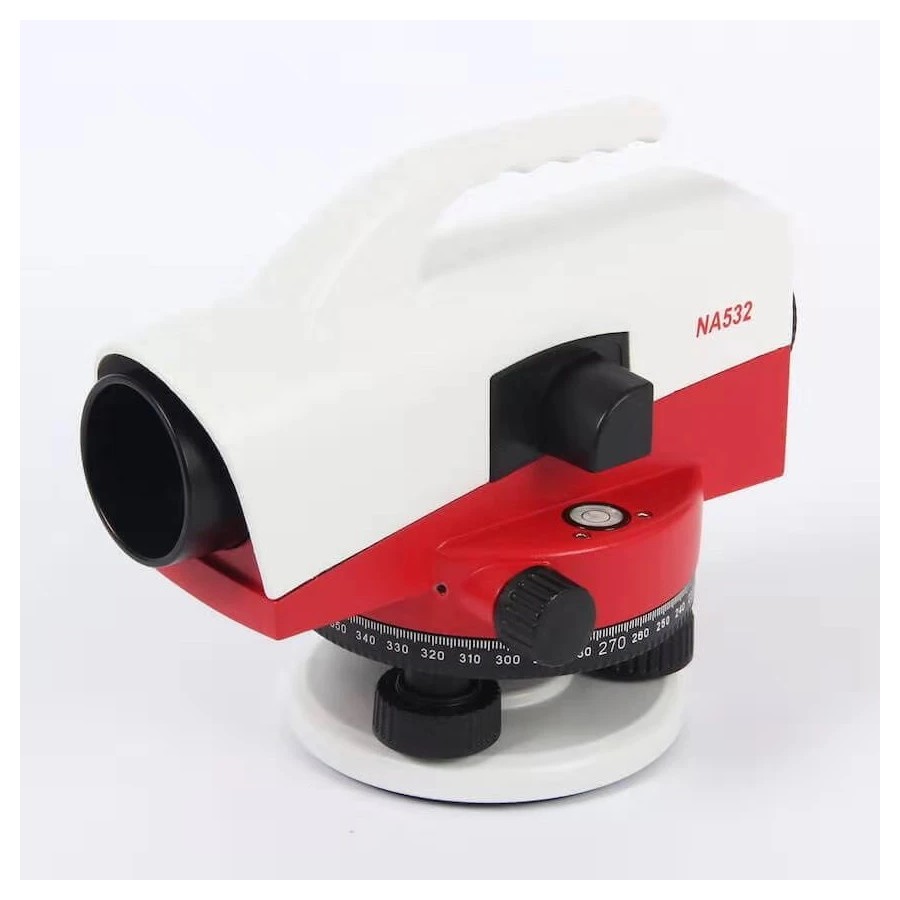

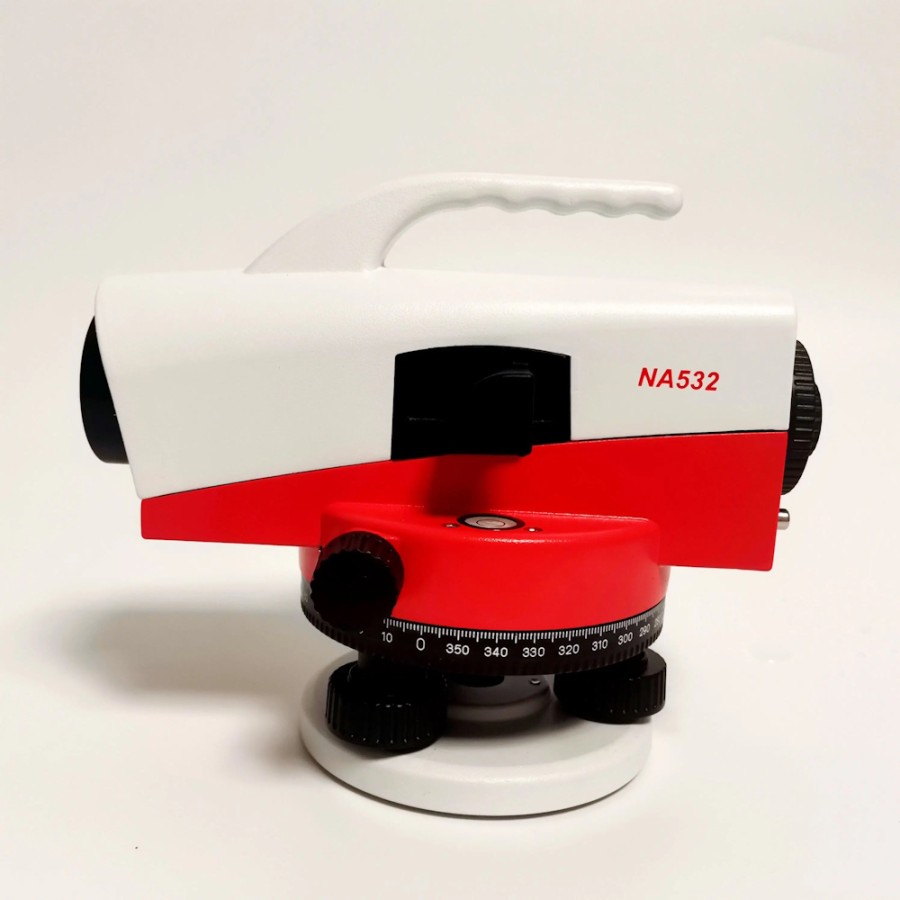

Orient NA532 Automatic Level
  • Orient NA532 Automatic Level
  • Orient NA532 Automatic Level
  • Orient NA532 Automatic Level
  • Orient NA532 Automatic Level

Orient NA532 Automatic Level

CN-661339
€198.40 €223.20 Save €24.80

Orient NA532 Automatic Level

Orient NA532

€198.40 €223.20 Save €24.80
Quantity :
No product available!

Temporarily Out of Stock

  Security policy

We re using Security Certificate GeoTrust OV with 256bit encryption.

  Delivery policy

Orders places before 14:00, working days, usually are shipped at the next working day.

  Return policy

You have the right to return your purchase within 14 days (terms may apply).

Features:

  • Equipped with a press button for compensator checking.
  • Unique handle design for easy carry.
  • Air-damping compensation and super clear imaging system.
  • Advanced anti-vibration, water proof and dust proof designs suitable for different surveying conditions.
  • Quality of materials, process and assembly are guaranteed.
  • Improved protected from moisture optics.

Specifications:

  • Magnification: 32X
  • Standard deviation for 1km double run leveling 1.0mm
  • Objective aperture: 40mm
  • Field of view: 1°20′
  • Shortest focus distance: 0.65m
  • Compensator type: air-damping
  • Working range of compensator:  ±15’
  • Levelling accuracy: ±0.3”
  • Circular vial: 8’/2mm
  • Horizontal circle: 360° or 400G for option
  • Weight: 1.4KG

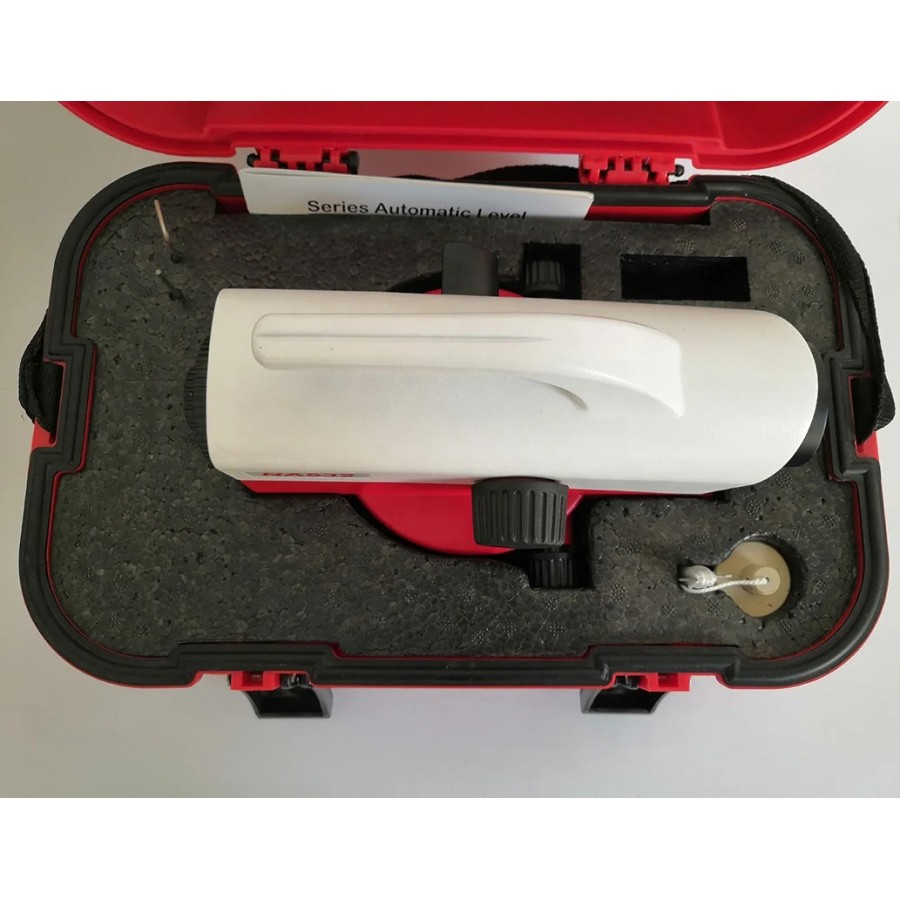

  • Standard outfit: automatic level, plumb bob, adjusting wrench, instruction manual, plastic carrying case.
CN-661339

Data sheet

Telescope magnification
32x
Horizontal circle
360°
Dust / Water Protection
IP54
Accuracy at 1 km double leveling
± 1 mm
Level Type
Optical

Boxed:
