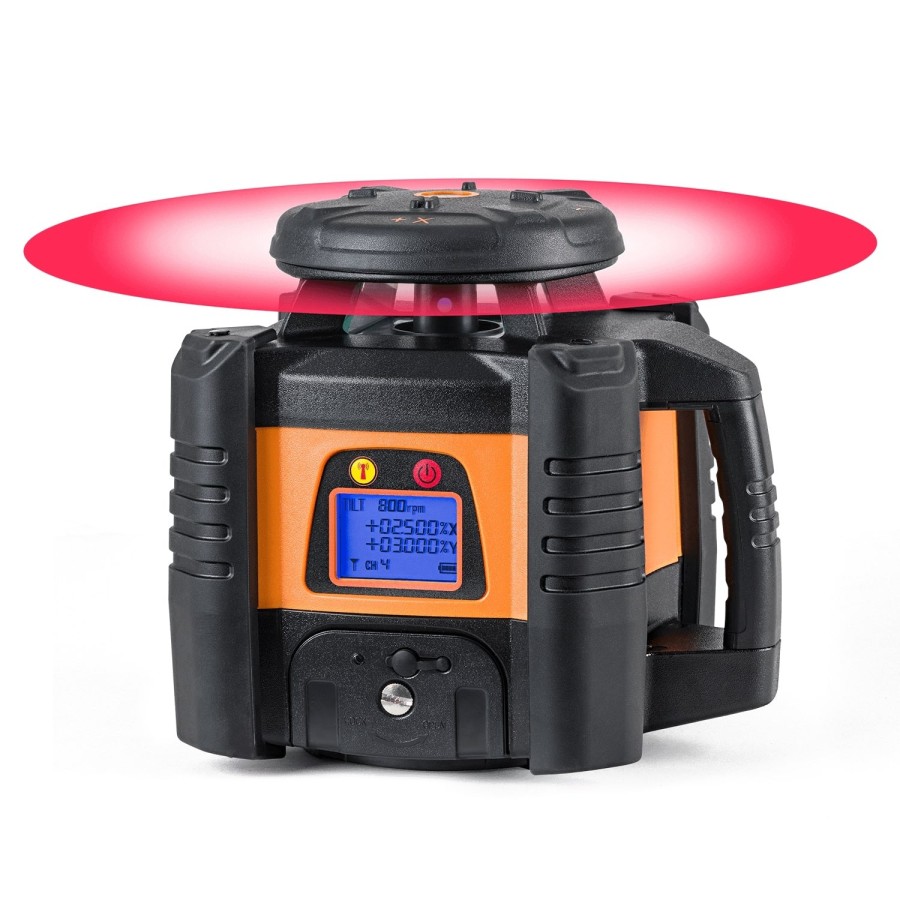

Geo-Fennel FL 155H-G Rotating Laser

High performance

• High accuracy of ± 0,5 mm / 10 m
• Grade setting of X and Y axis up to ± 10% (monitored)
• TILT and VWS-Function
• Li-Ion battery technology
• 2-Way RF remote control

Easy operation

• Digital setting of grade values
• Monitored grade
• Reduced number of buttons for ease-of-use

Features

• Horizontal Dual Grade Laser
• Digital grade adjustment
• Monitored grade
• Automatic TILT function
• VWS function combined with TILT function
• Illuminated display
• Zonal control (masking)
• Zonal control (electronic beam screen)
• Remote control screen
• Li-Ion battery technology
• Battery charger includes adapter for in-car charging

Technical Specifications:

• Self-levelling range: ± 6°
• Laser diode: red
• Grade: digital
• Accuracy: ± 0,5 mm / 10 m
• Working range remote control: 80 m
• Working area with FR 45: Ø 1200 m
• Power supply: Li-Ion
• X and Y-Axis: ∑ ± 14 %
• Horizontal slope setting x-Axis: ± 10.000%
• Horizontal slope setting Y-Axis: ± 10.000%
• Weight (instrument only): 2,2 kg
• Rotating speed rpm: 500, 800
• Dust / water protection: IP 65
• Temperature range: -20° to +50°C
• Operating time: 30 h
• Laser class: 2

Included in scope delivery:

• Receiver with clamp
• 2-Way RF Remote control
• Li-Ion battery
• Intelligent battery charger
• Battery case for alkaline batteries
• Carrying case
