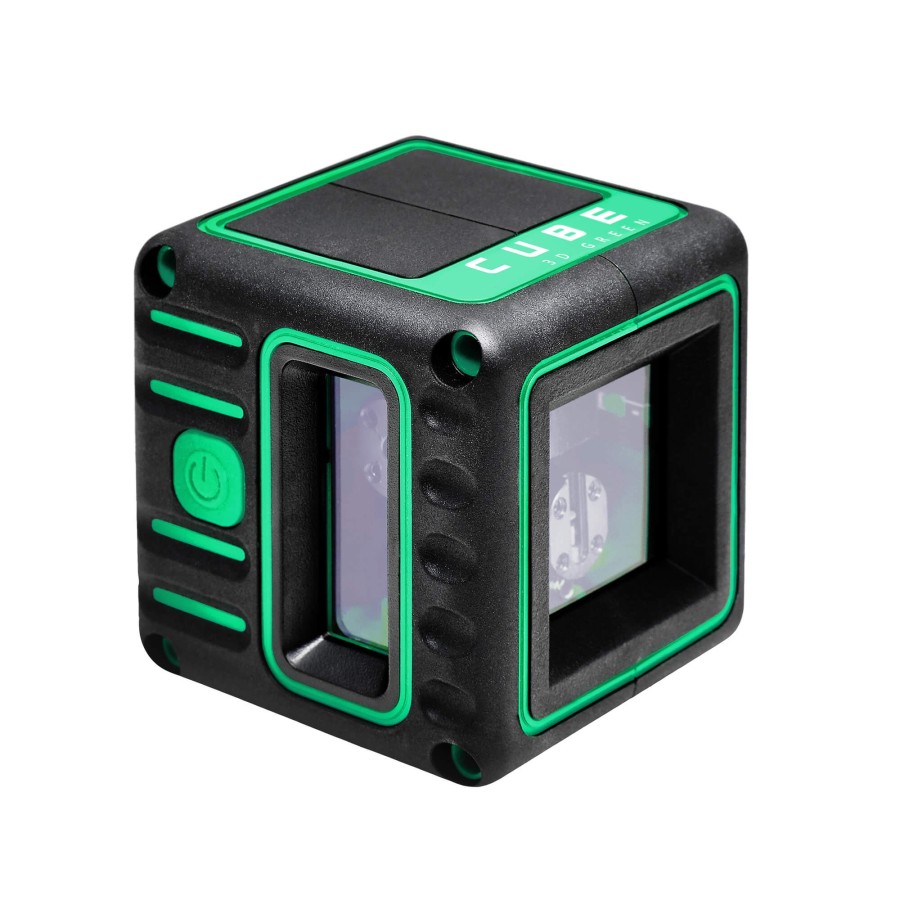

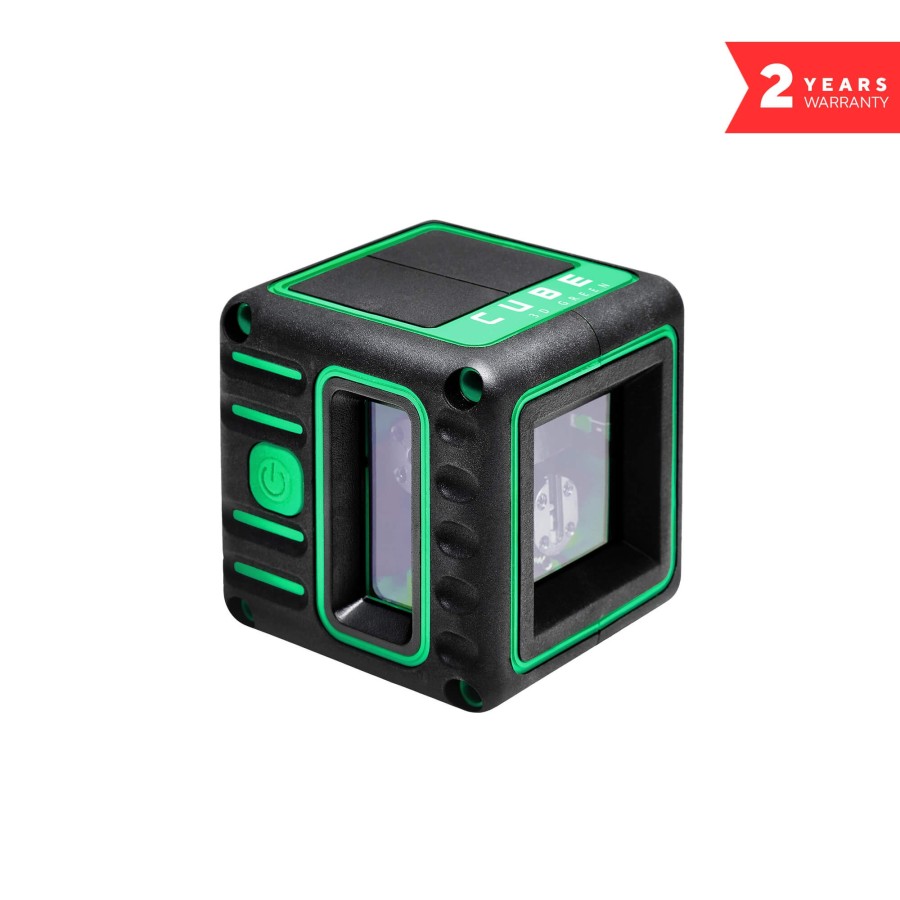

ADA CUBE 3D GREEN Line Laser Professional Edition

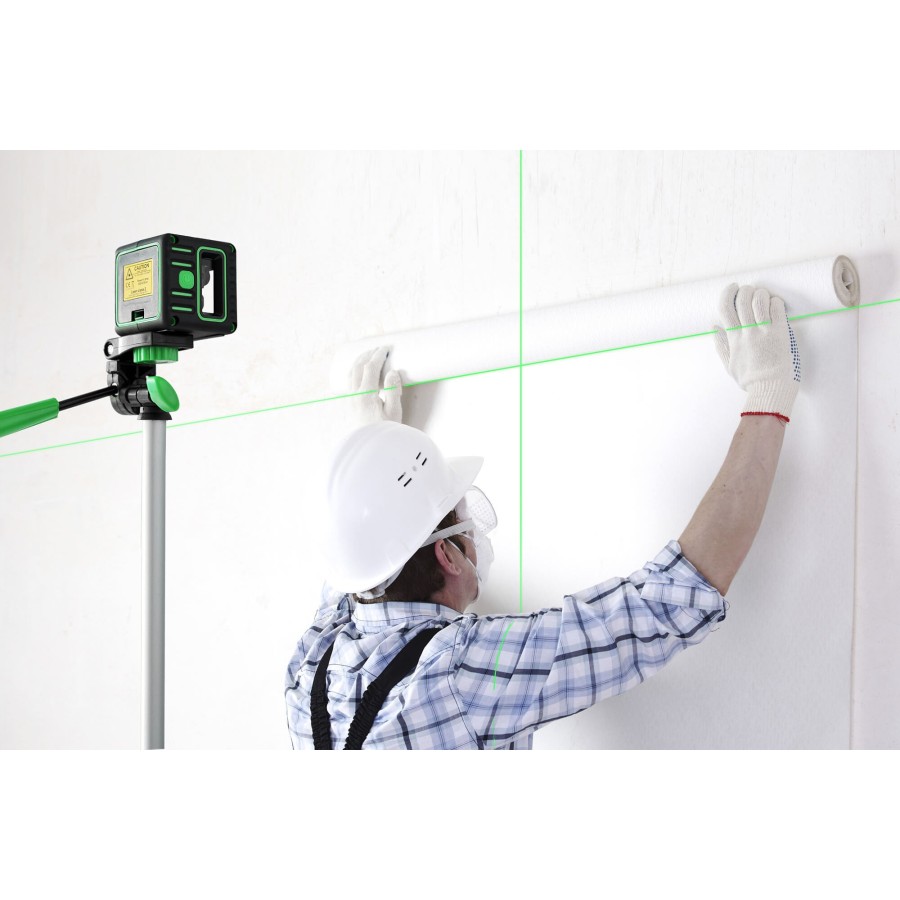

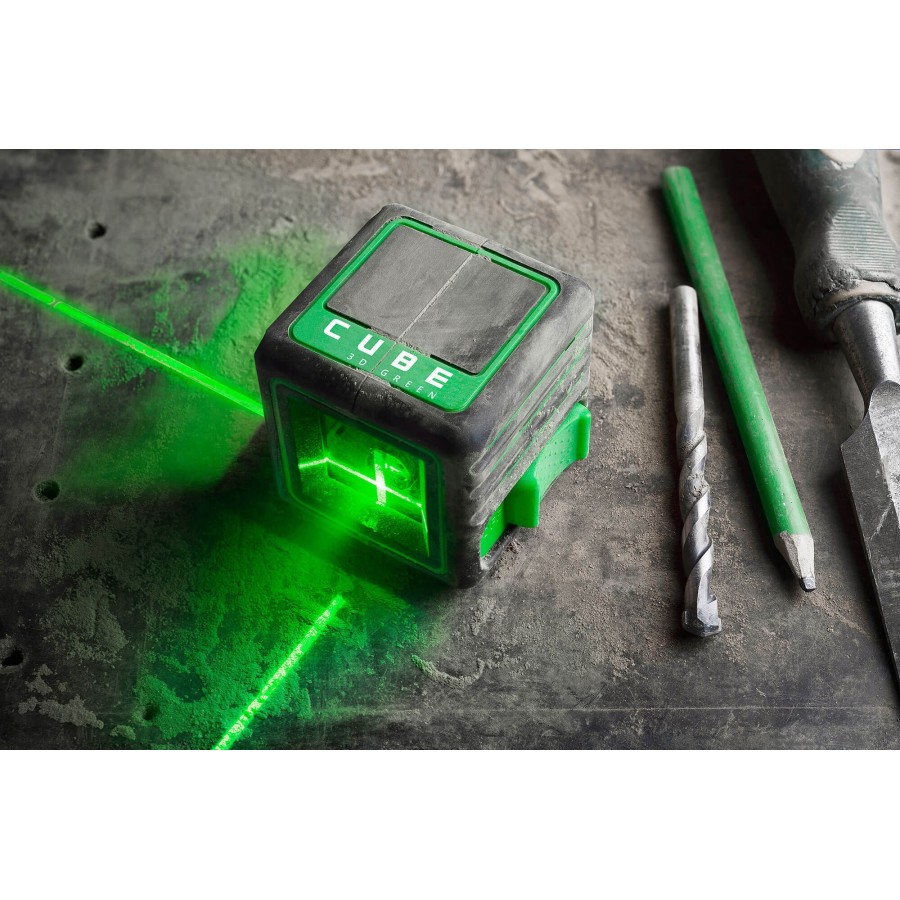

ADA CUBE 3D GREEN is the most compact line laser with two vertical and one horizontal lines. With the help of ADA Cube you can do all marking jobs: to hang a shelf or picture on the wall, to hang wallpapers, to place conduit for electric wiring, to set guides for suspended ceiling and so on.

ADA-A00545
€179.00
€179.00 Tax incl. €179.00 Tax excl.
1-3 days
Quantity
report_problem Last items in stock

VERTICAL MARKING

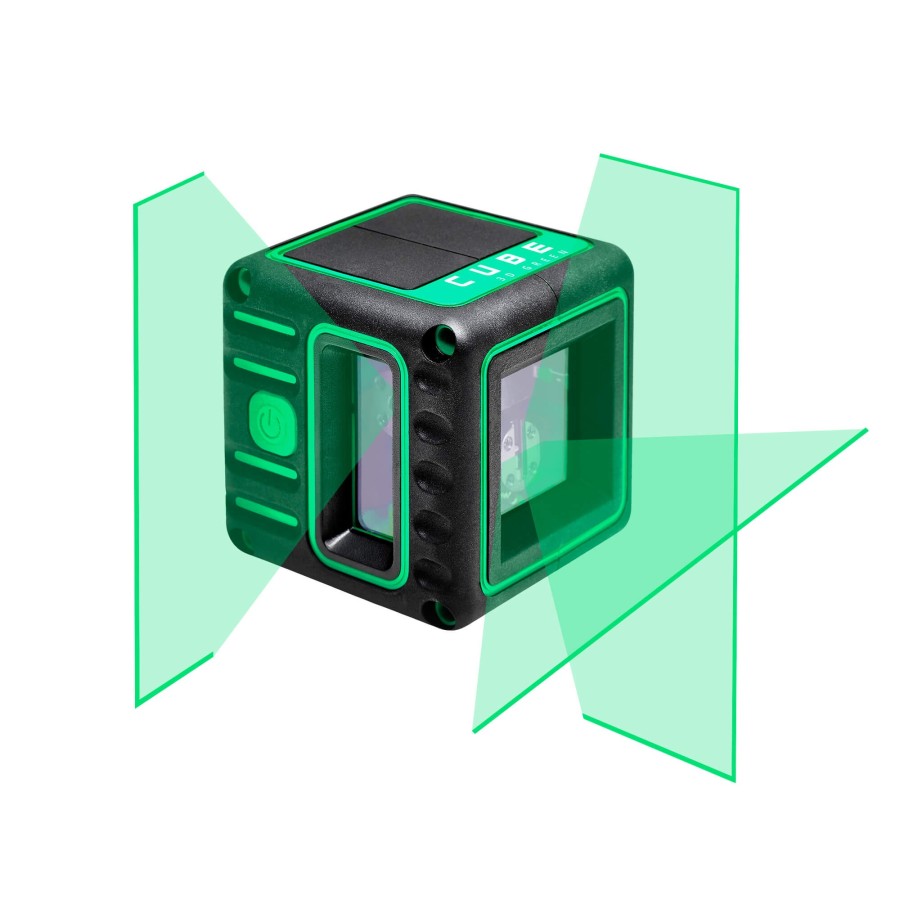

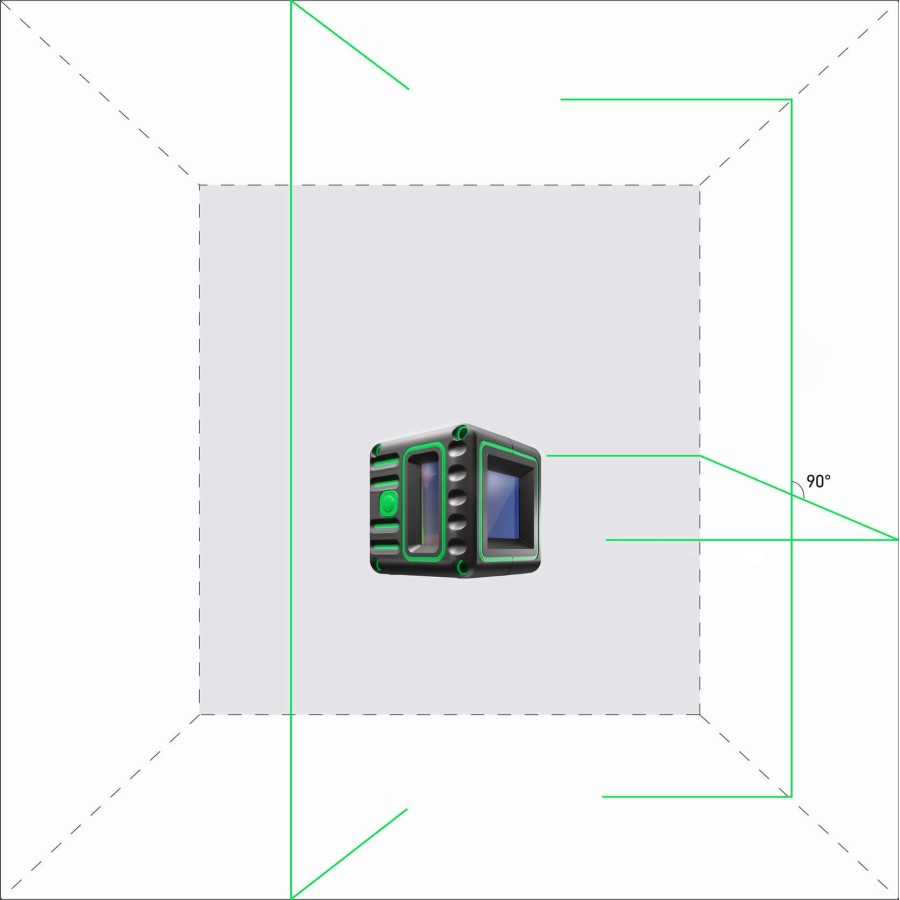

Due to the vertical lines that are intersected at the angle of 90° you can easily plan the division of the room, make partitions, lay floor tiles and so on. Laser lines will show the position of future walls. Change the position of the level to value the dimensions of planned room.

BATTERY POWER SAVING

It is possible to turn off unused laser lines to save battery life. For this purpose use the button to select laser beams. This button is located on the side edge of the instrument. Variants of markings: one horizontal and two vertical lines, the only one vertical line or only horizontal and vertical lines (laser cross). If the battery power is low, laser lines will blink.

HEAVY-DUTY HOUSING

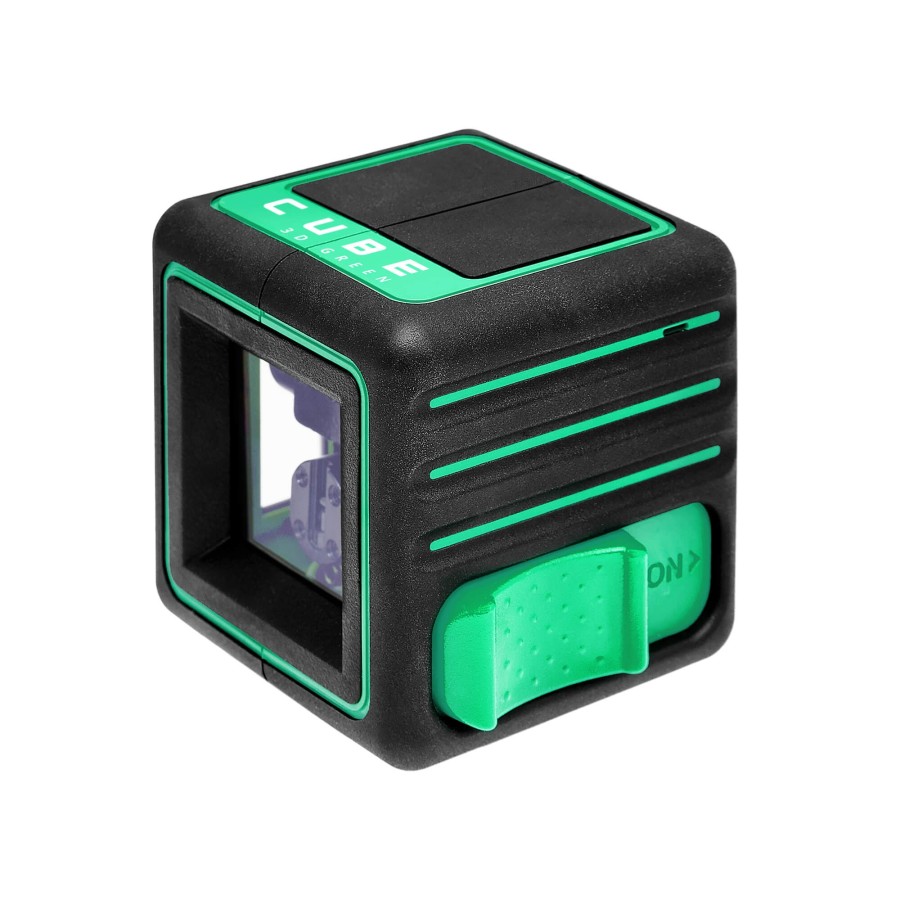

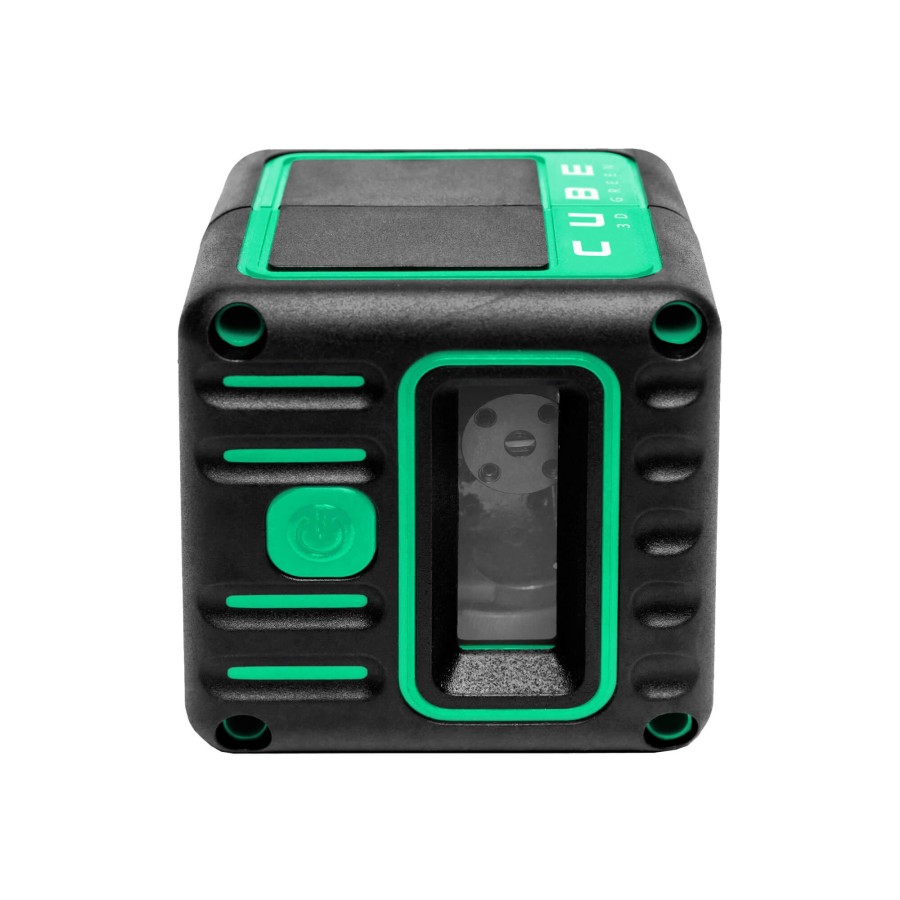

The housing is made in the form of cube. Area of the edge makes up only 6.5 cm. Rubber parts protect instrument from damages. Due to the ribbed surface the instrument doesn’t slip out from your hands.

EASY OPERATION

Turning on and deblocking is performed with the click of the button. The pendulum makes fast alignment into vertical position. Maximum deviation from the vertical axis makes up 3°. In case of deviation the acoustic alarm activates. Thread 1/4″ in the bottom of the gauge allows to set on the tripod or multipurpose fixing.

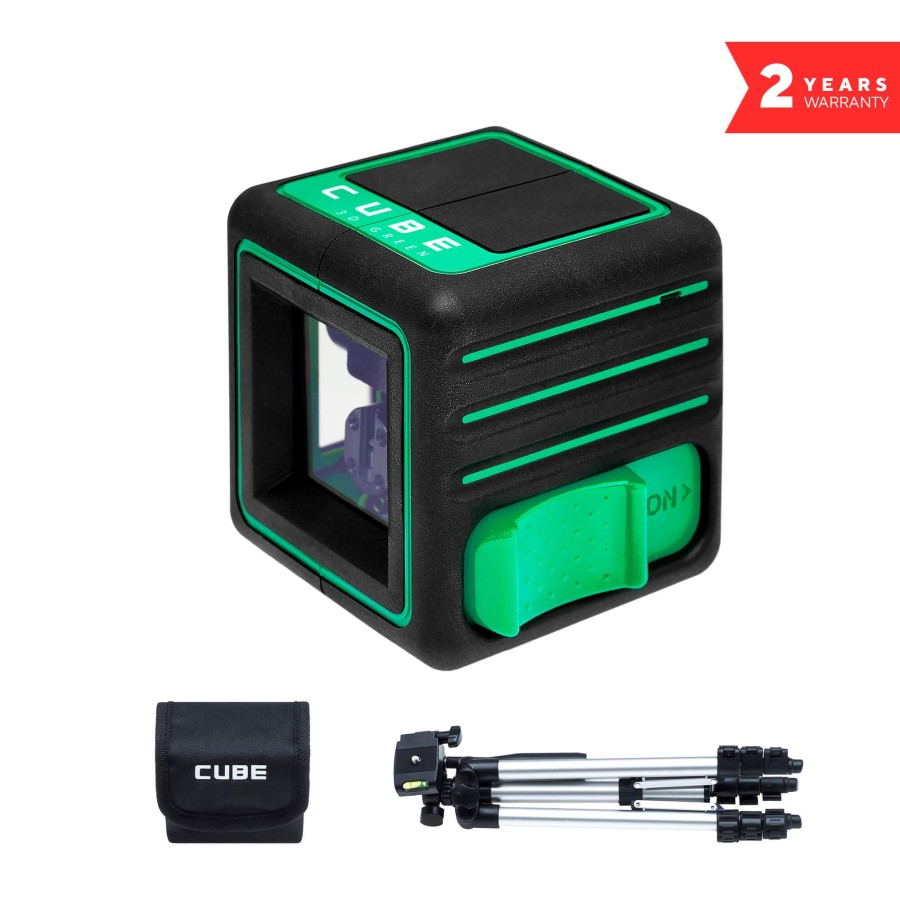

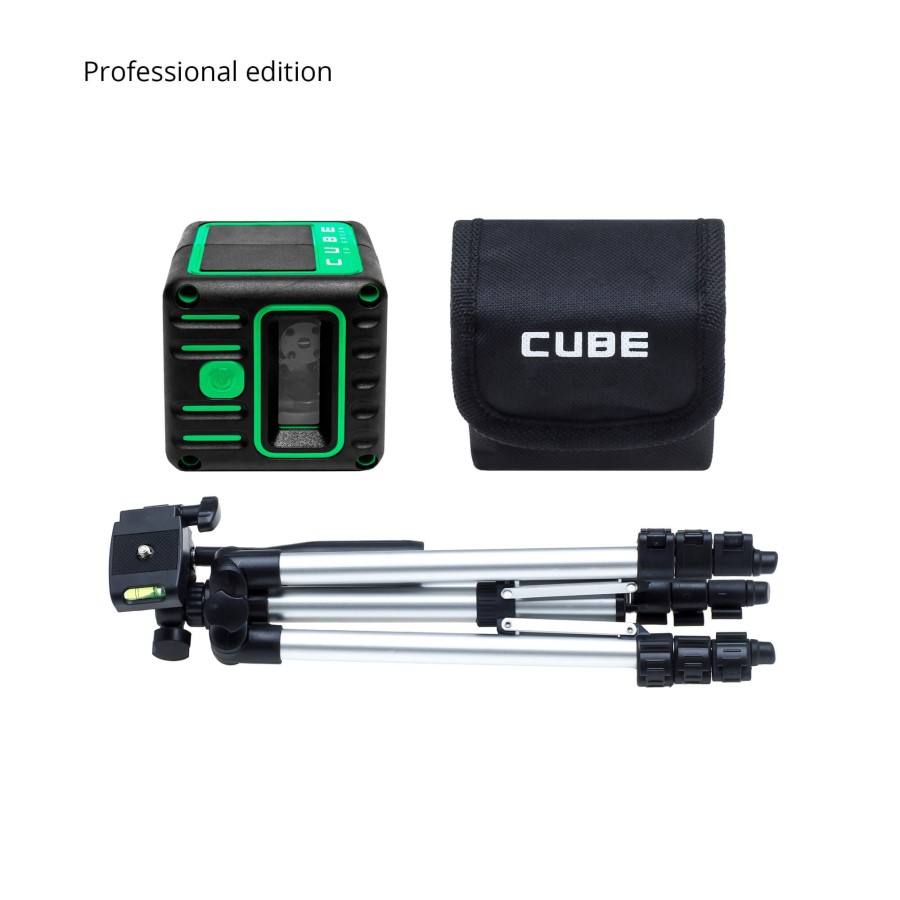

ELEVATING TRIPOD

Light aluminum support with sliding column for installation at the height from 35 up to 110 cm. The elevating detail is used for smooth adjustment of the height in the range of 25 cm. The tripod provides for quick installation of the level at the required height in any place.

Specifications:

  • Laser projection: 1Н 2V
  • Working range: 40 m
  • Accuracy: ± 0,2 mm/m
  • Laser diode class: 2, 515 nm, < 1 mWt
  • Dust/water protection: IP 54
  • Power supply: 3 batteries AАА / 1.5 V
  • Tripod thread: 1/4"
  • Dimensions: 65х65х65 mm
  • Weight: 0,24 kg
ADA-A00545

Data sheet

Range
40 m
Warranty
2 years
Self-Levelling Range
± 3°
Power supply
3 X AAA
Laser Beam
Green Beam
Laser Class
2
Self-Levelling
Yes
Accuracy (mm to 10 meters)
± 2
Dust / Water Protection
IP54
Laser Type
Cross Line Lasers
